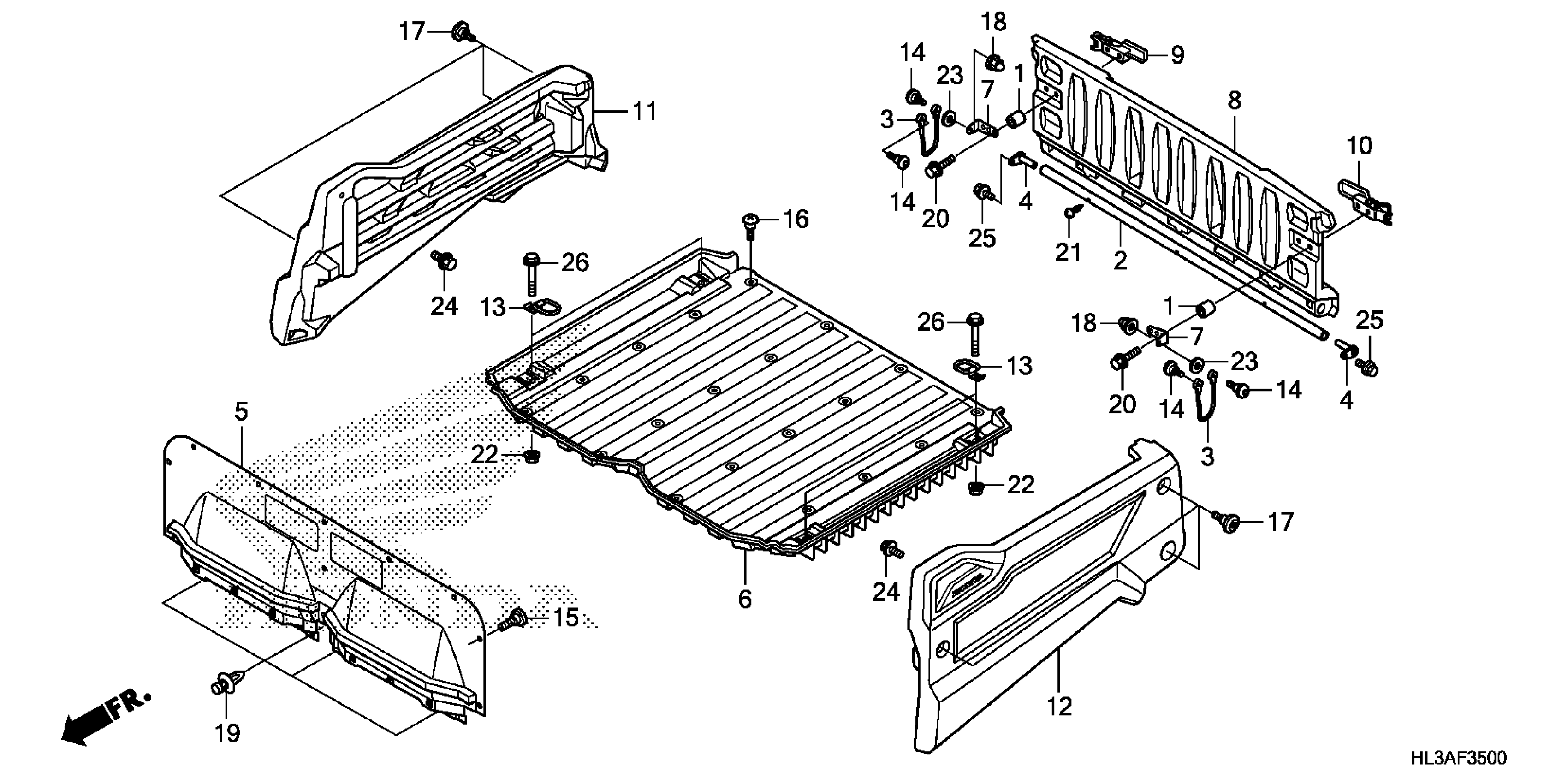

Honda SXS700M2DA (18) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE02E-J4400001 BED PLATE@REAR GATE (1) Diagram

COLLAR (6.4X10)

23813-KPH-720

$4.92

HINGE, RR. GATE

81503-HL3-A00

$34.87

WIRE, RR. GATE STOPPER

81504-HL3-A00

$21.46

BRACKET, RR. GATE HINGE

81505-HL1-A00

$7.16

PLATE, FR. BED

81506-HL3-620

$48.26

PLATE, BED TOP

81507-HL3-A10

$189.05

BRACKET, RR. GATE LOCK

81508-HL1-A00

$2.92

GATE, RR. *NH1* (BLACK)

81530-HL3-A00ZA

$101.93

LOCK, R. RR. GATE

81531-HL3-A01

$14.55

LOCK, L. RR. GATE

81532-HL3-A01

$14.55

R BED SIDE COVER, SET ILLUST (TYPE2)

81555-HL3-MF0ZA

$126.02

L BED SIDE COVER, SET ILLUST (TYPE2)

81565-HL3-MF0ZA

$120.30

HOOK ASSY., TIE DOWN

84614-S06-000

$10.50

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

SCREW, SPLASH GUARD

90103-HC4-770

$2.23

SCREW, SPECIAL (6MM)

90103-HF1-670

$6.08

BOLT, GRIP END

90109-HP1-000

$2.02

NUT, CAP (6MM)

90201-415-000

$2.05

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

BOLT-WASHER (6X20)

93404-06020-07

$1.55

SCREW, TAPPING (5X16)

93903-25310

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94103-06700

$1.49

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X60)

95701-06060-07

$3.80
