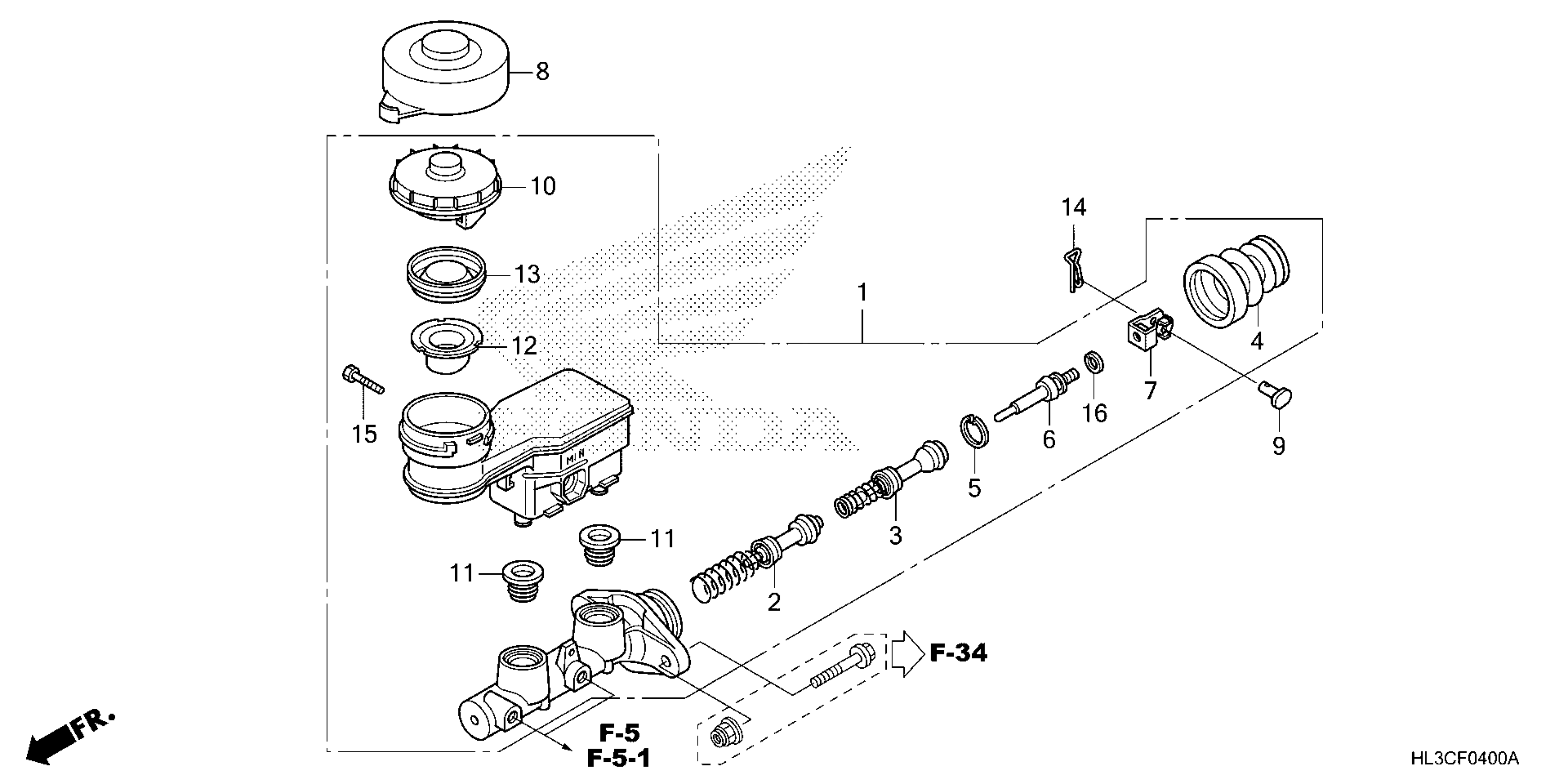

Honda SXS700M2D2A (21) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE02F-M4700001 TO 1HFVE02F-M4799999 BRAKE MASTER CYLINDER Diagram

MASTER CYLINDER ASSY. (NISSIN) (NA USE ALT:45500-HL3-305)

45500-HL3-A02

Unavailable

PISTON ASSY., PRIMARY

45502-HL1-A01

$15.79

PISTON ASSY., SECONDARY

45503-HL1-A01

$18.84

BOOT

45504-HL1-A01

$8.34

CIRCLIP

45505-HL1-A01

$1.36

ROD, PUSH

45525-HL3-A01

$15.38

YOKE, PUSH ROD (NISSIN)

46151-SB2-003

$16.46

COVER, RESERVE TANK CAP

46163-HL1-A00

$20.33

PIN, PEDAL

46512-S70-000

$7.31

CAP, RESERVE TANK

46662-HL3-A02

$2.75

GROMMET

46665-S04-J01

$4.30

FILTER, BRAKE RESERVOIR

46666-S2K-003

$9.84

DIAPHRAGM This part replaces 46669-S5A-003.

46669-SCV-A01

$9.82

PIN, LOCK (8MM)

46911-S70-003

$4.28

BOLT, RECESSED (5X25)

92301-05025-0H

$1.08

WASHER, SPRING (8MM)

94111-08800

$1.49
