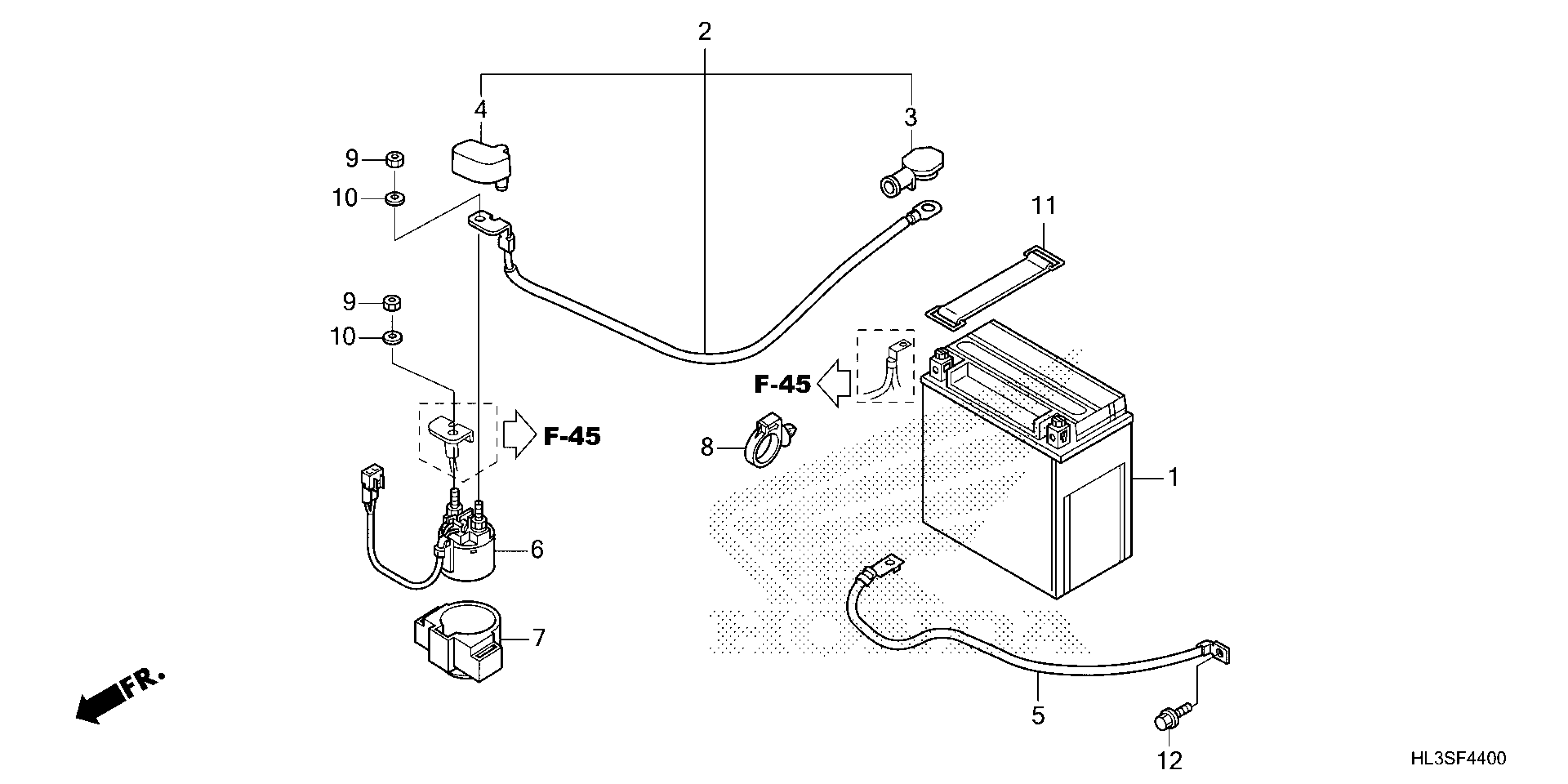

Honda SXS700M2AC (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE022-S4000001 TO 1HFVE022-S4099999 BATTERY Diagram

BATTERY YTX14-BS This part replaces 31500-HL5-F62.

31500-HL5-F62AH

$107.62

CABLE, STARTER MOTOR

32405-HL3-A01

$29.97

COVER, STARTER MOTOR TERMINAL

32411-MEW-920

$3.84

COVER, MAGNETIC SWITCH TERMINAL

32416-HN5-670

$4.53

CABLE, BATT GROUND

32601-HL3-B40

$10.12

SWITCH ASSY., STARTER MAGNETIC

35850-HN7-003

$52.45

RUBBER, MAGNETIC SHOCK (Honda Code 8611063)

35856-HP5-600

$4.02

CLAMP, HARNESS

90652-HC4-003

$5.54

NUT, HEX. (6MM)

94002-06390-0S

$0.77

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

BAND F, BATTERY (155MM)

95012-17001

$6.72

BOLT, FLANGE (6X12)

95701-06012-08

$1.48
