Description

Price

1

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.80

2

CANISTER (ROKI)

17300-HL3-G01

$179.12

3

BRACKET, CANISTER

17315-HL3-G00

$50.93

4

STAY, PURGE CONTROL VALVE

17316-HL3-G00

$29.24

5

COVER, CANISTER

17318-HL3-G00

$17.21

6

COVER, CANISTER (UPPER)

17319-HL3-G00

$20.91

7

JOINT, EVAPORATOR HOSE

17325-HL3-G00

$20.74

8

CLIP, BREATHER TUBE

17369-KB4-670

$5.24

9

TUBE, CANISTER OPEN AIR

17411-HL3-G00

$23.37

10

TUBE, CANISTER

17412-HL3-G00

$29.25

11

TUBE (P.C.S.-CANISTER)

17413-HL3-G00

$7.84

12

TUBE, PURGE CONTROL SOLENOID JOINT

17414-HL3-G00

$17.34

13

TUBE, THROTTLE BODY PURGE

17415-HL3-G00

$21.18

14

JOINT, TUBE

19126-KM1-010

$3.50

15

CLIP, WIRE HARNESS

32171-GJ1-003

$3.33

16

VALVE, PURGE CONTROL SOLENOID

36162-KZL-931

$53.46

17

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

17

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

Unavailable

17

COLLAR, FR. FENDER (BLACK) (FOR RR.)

61104-428-730

$4.01

18

CLAMP, TUBE (D18)

90651-HL3-G01

$2.29

19

CLAMP, TUBE

90651-KVS-611

$2.85

20

CLIP

90652-HL4-A01

$0.44

21

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

22

CLAMP, TUBE (D22)

90654-HL3-G01

$6.12

23

CLAMP, TUBE (D16.5-D9.8)

90655-HL3-G01

$6.28

24

BOLT-WASHER (5X10)

93401-05010-00

$0.94

25

NUT, FLANGE (6MM)

94050-06080

$0.60

26

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.62

27

CLIP, TUBE (B12.5)

95002-02130

$1.06

28

CLAMP, TUBE (D7.3)

95002-40730-08

$2.34

29

CLAMP, TUBE (D10)

95002-41000-08

$2.16

30

CLAMP, TUBE (D12)

95002-41200-08

$2.31

31

BOLT, FLANGE (6X16)

95701-06016-08

$1.34

32

BOLT, FLANGE (6X22)

95701-06022-08

$1.79

33

BOLT, FLANGE (6X40)

95701-06040-08

$1.69

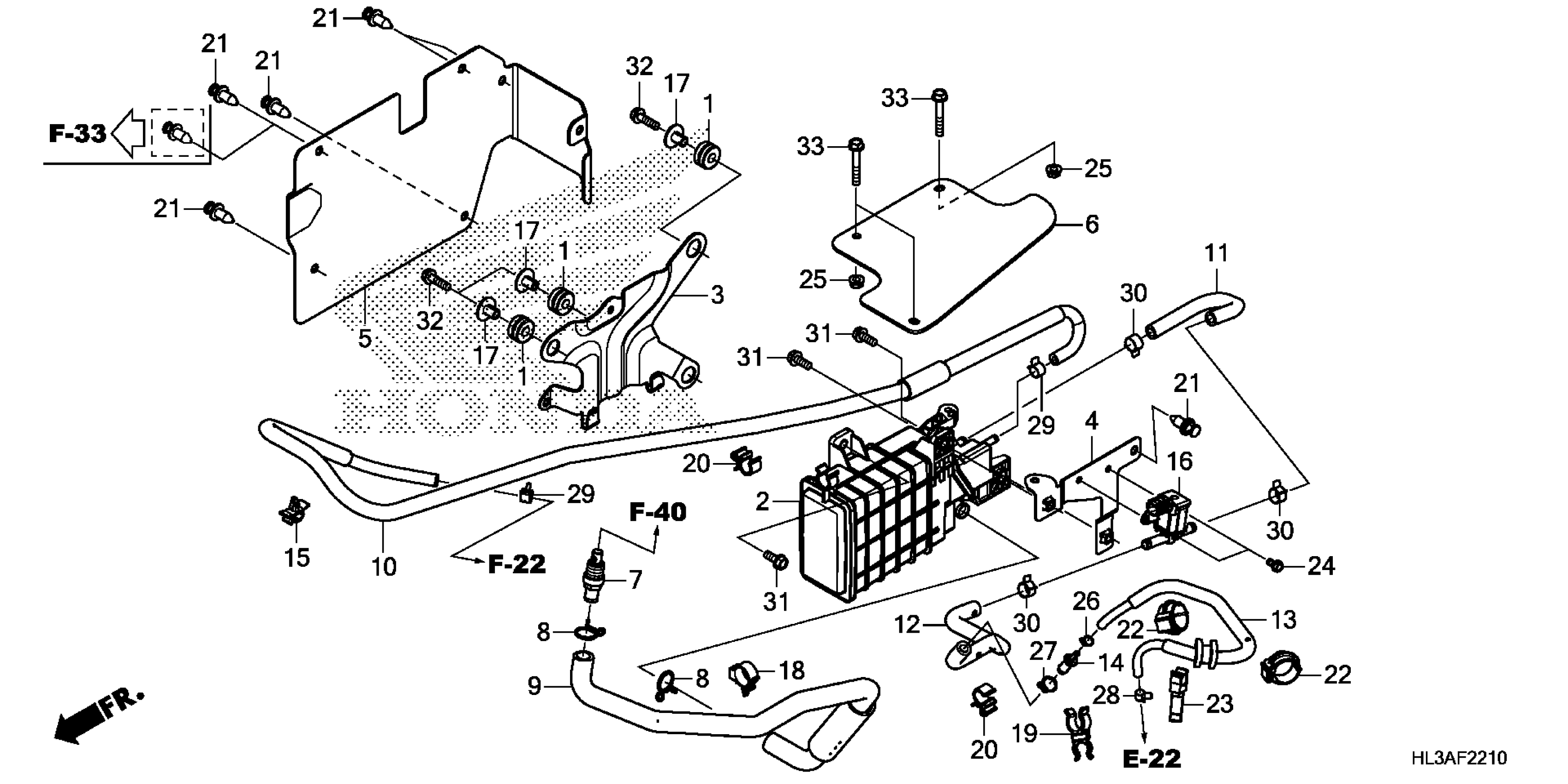

Honda SXS700M2AC (18) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE022-J4400001 CANISTER Diagram
