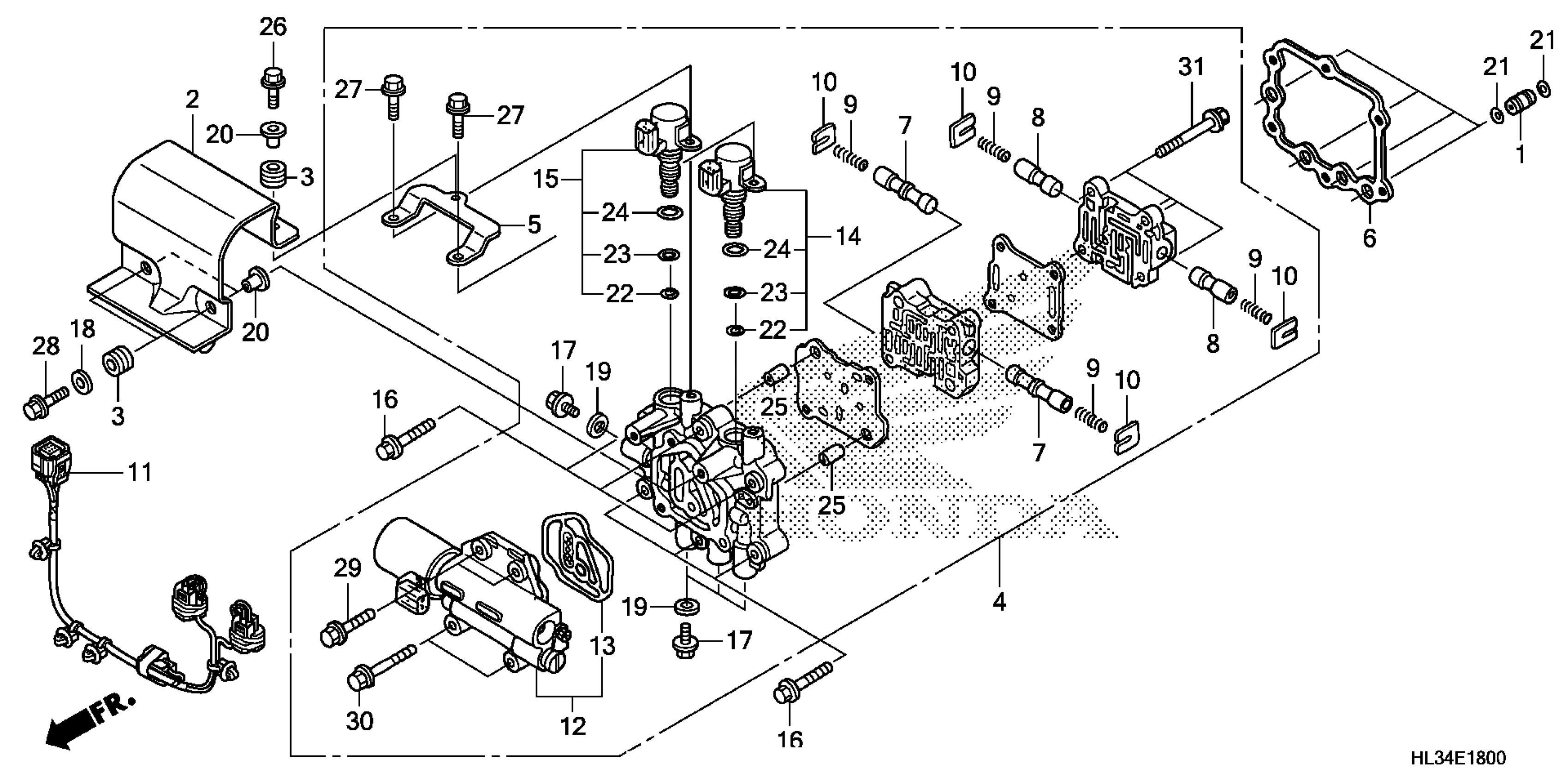

Honda SXS700M2AC (16) PIONEER 700, USA, VIN# 1HFVE022-G4200001 MAIN VALVE BODY Diagram

#

Description
Price

1

PIN, OIL GUIDE (10MM)

11334-HN8-010

$9.89

2

COVER, SOLENOID

11355-HL1-A00

$23.28

3

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

4

BODY ASSY., VALVE

27100-HL1-A01

$990.18

5

STAY, SOLENOID COVER

27105-HL1-A00

$4.30

6

GASKET, OIL CONTROL COVER

27135-HN8-000

$9.29

7

VALVE, SHIFT

27211-HN8-003

$12.28

8

VALVE, ORIFICE CONTROL

27221-HN8-003

$10.72

9

SPRING, VALVE

27231-HN8-003

$6.48

10

SEAT, VALVE SPRING

27263-PX3-000

$4.48

11

SUB-WIRE, SOLENOID

32102-HL3-A00

$51.16

12

SOLENOID ASSY., LINEAR

38610-HN8-003

$260.57

13

GASKET, BASE

38615-HN8-003

$22.19

14

SOLENOID ASSY. A

38620-HN8-003

$94.85

15

SOLENOID ASSY. B

38630-HN8-003

$94.85

16

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.85

17

BOLT, SEALING (8MM)

90024-612-000

$4.76

18

WASHER, RR. COVER GROMMET (FOR FR.)

90439-MB0-000

$1.72

19

WASHER (8MM)

90471-580-000

$2.92

20

WASHER (6MM)

90512-440-980

$2.92

21

O-RING (7X1.7)

91301-473-003

$2.72

22

O-RING (7.6X1.9) (KEIHIN)

91301-P6H-003

$2.92

23

O-RING (9.6X1.9) This part replaces 91302-P6H-003.

91302-P7W-A00

$2.69

23

O-RING (9.6X1.9)

91302-P7W-A00

$2.69

24

O-RING (11.7X1.9) (KEIHIN)

91303-P6H-003

$2.92

25

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

26

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

27

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

28

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62

29

BOLT, FLANGE (6X25) BOLT, FLANGE (6X16)

95701-06025-08

$1.72

30

BOLT, FLANGE (6X35)

95701-06035-08

$1.79

31

BOLT, FLANGE (6X50)

95701-06050-08

$2.16
