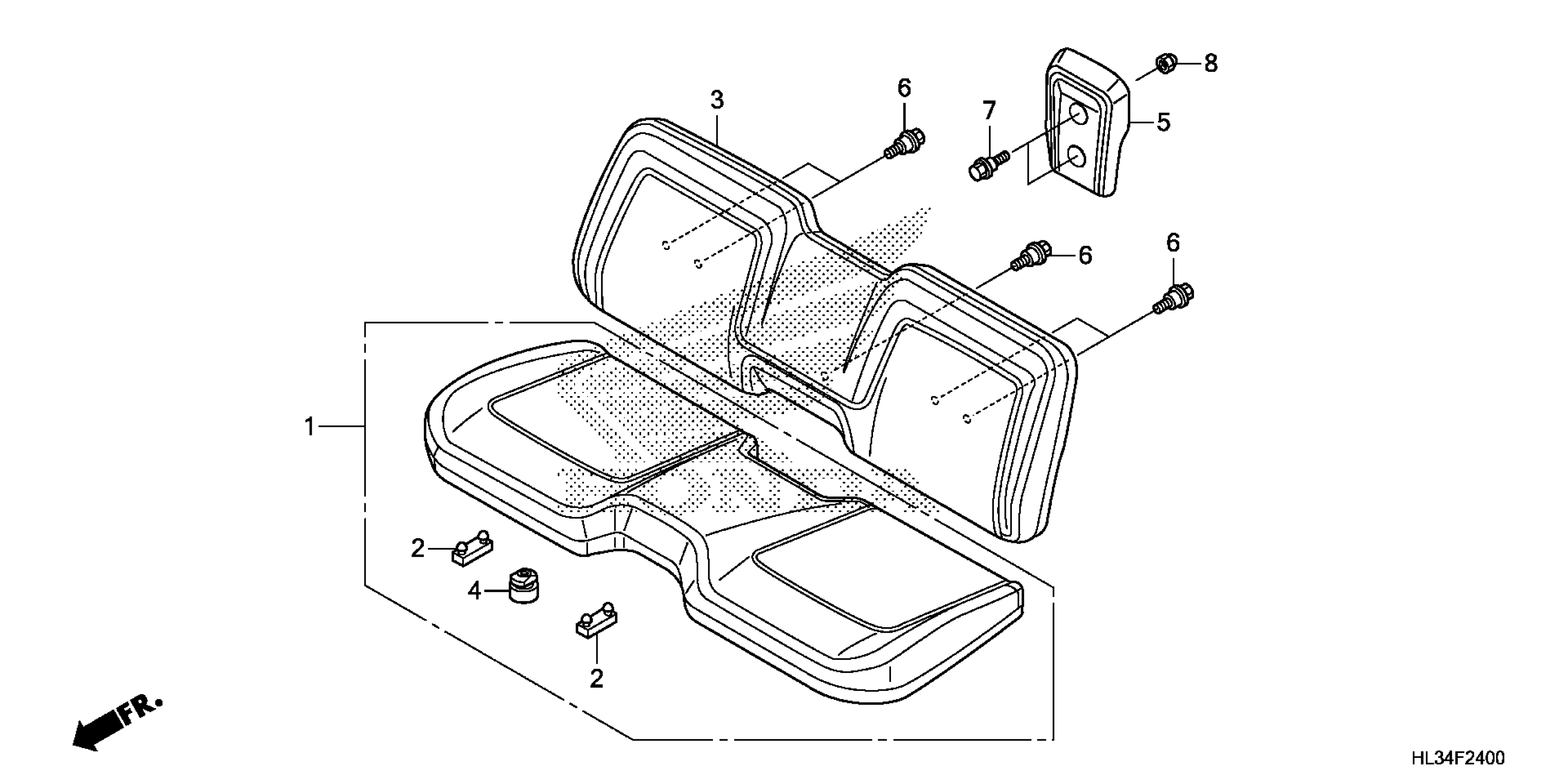

Honda SXS700M2AC (16) PIONEER 700, USA, VIN# 1HFVE022-G4200001 FRONT SEAT Diagram

#

Description

Price

1

SEAT CUSHION, ASSY. This part replaces 77100-HL3-A41.

77100-HL3-B42

$280.30

2

RUBBER, SEAT SETTING This part replaces 77104-HL3-A01.

77104-HL3-B40

$1.86

3

SEAT-BACK ASSY. This part replaces 77200-HL3-A41.

77200-HL3-B42

$206.32

4

CUSHION, SEAT MOUNTING

77207-HA0-000

$6.64

5

HEADREST NH1 (BLACK)

81140-HL3-A00ZA

$27.62

6

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.03

7

BOLT, FLANGE (6MM)

90116-ME9-000

$3.12

8

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.65

8

NUT, CAP (6MM)

94021-06020

$1.65

8

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.65

8

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.65
