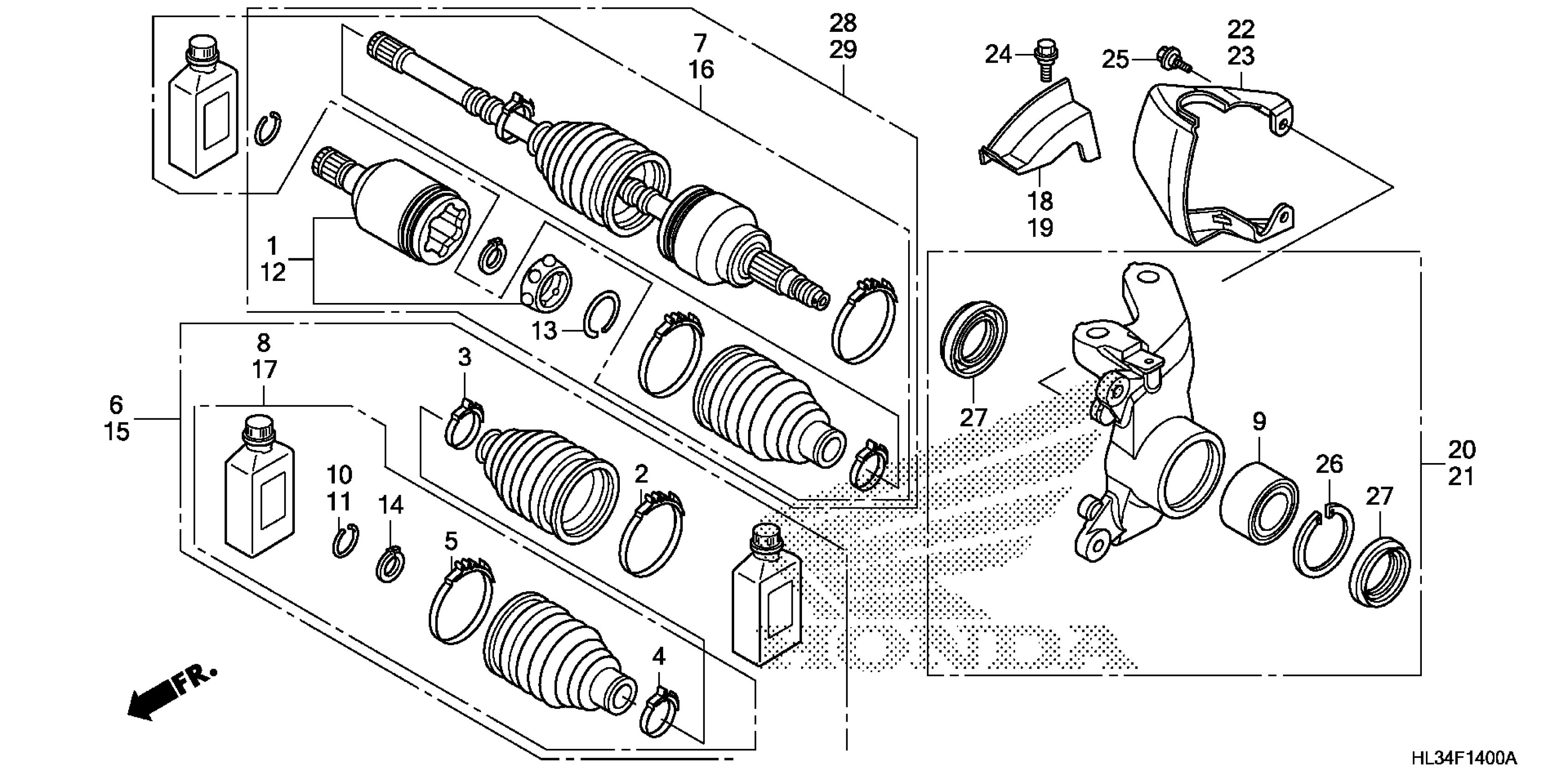

Honda SXS700M2AC (16) PIONEER 700, USA, VIN# 1HFVE022-G4200001 FRONT KNUCKLE@DRIVESHAFT Diagram

#

Description
Price

1

JOINT, R. INBOARD

44220-HL3-A01

$152.07

2

BAND, OUTBOARD BOOT

44225-HL3-A01

$4.81

3

BAND, SHAFT BOOT

44226-HL3-A01

$3.55

4

BAND, SHAFT BOOT

44227-HL3-A01

$3.80

5

BAND, INBOARD BOOT

44228-HL3-A01

$5.10

6

BOOT SET, R. FR.

44240-HL3-A02

$97.90

7

SHAFT SET, R. FR. DRIVE

44250-HL3-A41

$250.54

8

BOOT SET, R. FR. INBOARD

44260-HL3-A02

$80.89

9

BEARING ASSY., FR. HUB (NTN)

44300-SB2-038

$125.68

10

SET-RING (26X1.8) (GKN)

44319-SR1-003

$2.92

10

SET-RING (26X1.8) (GKN) This part replaces 44319-S01-A01.

44319-SR1-003

$2.92

11

SET-RING (24X1.6) (R. SIDE)

44319-SC2-003

$3.39

12

JOINT, L. INBOARD

44320-HL3-A01

$153.74

13

RING, SNAP (L. SIDE)

44337-ST5-003

$3.78

14

CIRCLIP (L. SIDE)

44338-ST5-003

$2.03

15

BOOT SET, L. FR. (BOTH SIDES)

44340-HL3-A02

$105.51

16

SHAFT SET, L. FR. DRIVE

44350-HL3-A41

$255.16

17

BOOT SET, L. FR. INBOARD (BOTH SIDES)

44360-HL3-A02

$83.31

18

COVER, R. FR. DISK This part replaces 45255-HL3-A00.

45255-HL3-A01

$5.95

18

COVER, R. FR. DISK

45255-HL3-A01

$5.95

19

COVER, L. FR. DISK This part replaces 45256-HL3-A00.

45256-HL3-A01

$4.63

19

COVER, L. FR. DISK

45256-HL3-A01

$4.63

20

KNUCKLE ASSY., R. FR.

51200-HL3-A00

$238.48

21

KNUCKLE ASSY., L. FR.

51250-HL3-A00

$238.48

22

GUARD, R. FR. OUTBOARD

51325-HL3-A00

$7.84

23

GUARD, L. FR. OUTBOARD

51326-HL3-A00

$7.84

24

BOLT, FLANGE (6MM)

90111-HN6-000

$2.25

25

BOLT, FLANGE (6MM)

90111-KT1-780

$14.98

26

CIRCLIP (INNER) (64MM)

91055-SA7-000

$5.91

27

DUST SEAL (50X64X7)

91254-HL1-A01

$13.72

28

DRIVESHAFT ASSY., R. FR. (MSDS)

44200-HL3-A41

$296.49

29

DRIVESHAFT ASSY., L. FR.

44300-HL3-A41

$300.49
