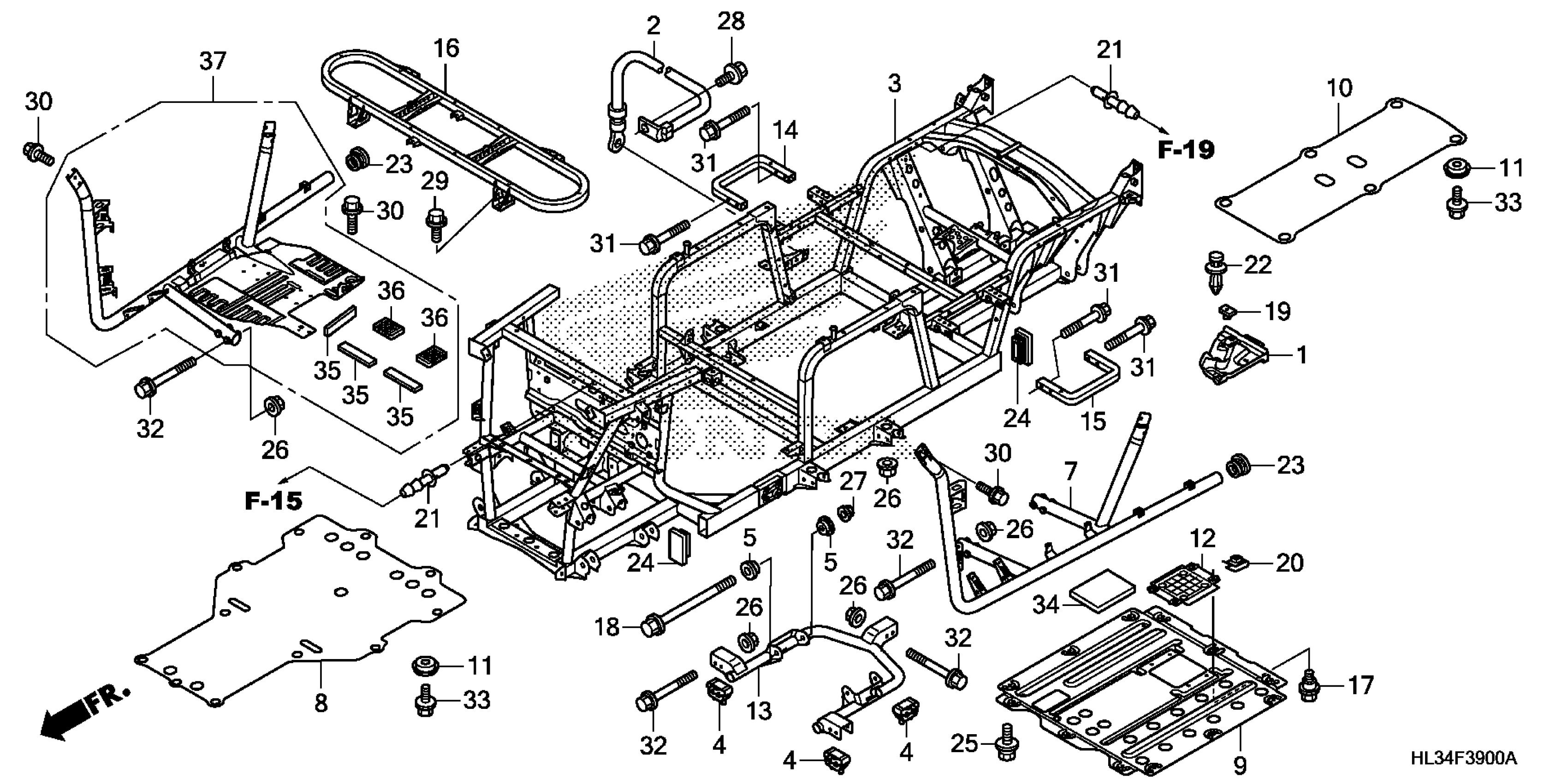

Honda SXS700M2AC (16) PIONEER 700, USA, VIN# 1HFVE022-G4200001 FRAME Diagram

COVER, RR. EX. PIPE

18323-HL3-A00

$15.07

CABLE, FRAME GROUND

32603-HL3-A00

$7.20

FRAME ASSY. (2P)

50000-HL3-A50

$2,367.85

RUBBER, ENGINE MOUNTING

50301-HL3-A01

$23.61

COLLAR, ENGINE MOUNT

50304-HL3-A00

$10.34

PIPE, L. STEP

50320-HL3-A10

$185.43

PLATE, FR. SKID

50400-HL3-A00

$93.11

PLATE, MIDDLE SKID

50401-HL3-A40

$82.58

PLATE, RR. SKID

50402-HL3-A00

$25.44

WASHER, SKID PLATE

50403-HL3-A00

$2.21

GUARD, ENGINE

50406-HL3-A00

$3.11

FRAME, ENGINE

50500-HL3-A00

$163.52

PIPE COMP This part replaces 50600-HL3-A00.

50600-HL3-B40

$790.21

BOLT, FLANGE (6MM)

90111-197-890

$3.67

BOLT, FLANGE (10X145)

90115-HM8-003

$6.58

NUT, SPECIAL (6X7)

90303-HA0-680

$3.85

NUT, CLIP (6MM)

90305-SM4-003

$3.70

JOINT, BREATHER TUBE

90652-HF7-003

$9.52

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

CAP, PIPE END (1-5/8")

90860-HL3-A00

$0.90

CAP, PIPE END

90883-HL3-A00

$1.79

BOLT-WASHER (6X12)

93404-06012-07

$1.55

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.55

BOLT-WASHER (6X12) This part replaces 93414-06012-08.

93404-06012-07

$1.55

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

BOLT, FLANGE (8X65)

95701-08065-00

$1.72

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X12) This part replaces 95801-06012-08.

95701-06012-08

$1.67

RUBBER, STOPPER

50405-HL3-A00

$3.97

CUSHION, BATTERY TRAY (A)

17509-MN5-000

$4.48

CUSHION, RR. FUEL TANK

17612-HL3-A00

$16.72

PIPE ASSY., R. STEP

50315-HL3-A10

$357.10
