Description

Price

1

HOUSING, AIR CLEANER

17210-HL3-A00

$19.93

2

BODY, AIR CLEANER

17211-HP0-A00

$24.18

3

LID, AIR CLEANER HOUSING

17217-HL3-A00

$9.66

4

SEAL, AIR CLEANER COVER

17219-HL3-A00

$15.96

5

SPRING, AIR CLEANER HOUSING LID

17223-HM8-000

$1.87

6

TUBE, AIR CLEANER DRAIN

17224-HM8-B40

$7.07

7

TUBE, SNORKEL

17252-HL3-A00

$17.18

8

TUBE, AIR CLEANER CONNECTING

17253-HL3-A40

$28.98

9

ELEMENT, AIR CLEANER

17254-HP0-A00

$16.75

10

DUCT, SNORKEL

17259-HL3-A00

$47.79

11

COVER, SNORKEL

17261-HL3-A00

$12.51

12

CLIP, OIL DRAIN TUBE

17316-611-000

$9.23

13

TUBE, BREATHER

17366-HL3-A00

$23.10

14

RUBBER, MUFFLER

18334-KA3-830

$3.89

15

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

16

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

17

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

18

SENSOR ASSY., AIR TEMPERATURE

37880-RE1-Z01

$36.44

19

GROMMET, TA SENSOR

37881-P2A-000

$4.47

20

GROMMET, RR. FENDER

80102-KFJ-900

$4.94

21

BOLT, BALANCER BELT ADJUSTER

90018-PT0-010

$6.70

22

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

23

BAND, AIR CLEANER CONNECTING TUBE (62)

90662-HN5-M00

$1.51

24

BAND, AIR CLEANER ELEMENT

90680-HP5-600

$10.90

25

BAND, AIR CLEANER CONNECTING TUBE (96)

90696-HN2-830

$5.70

26

SCREW-WASHER (6X25)

93891-06025-08

$1.15

27

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

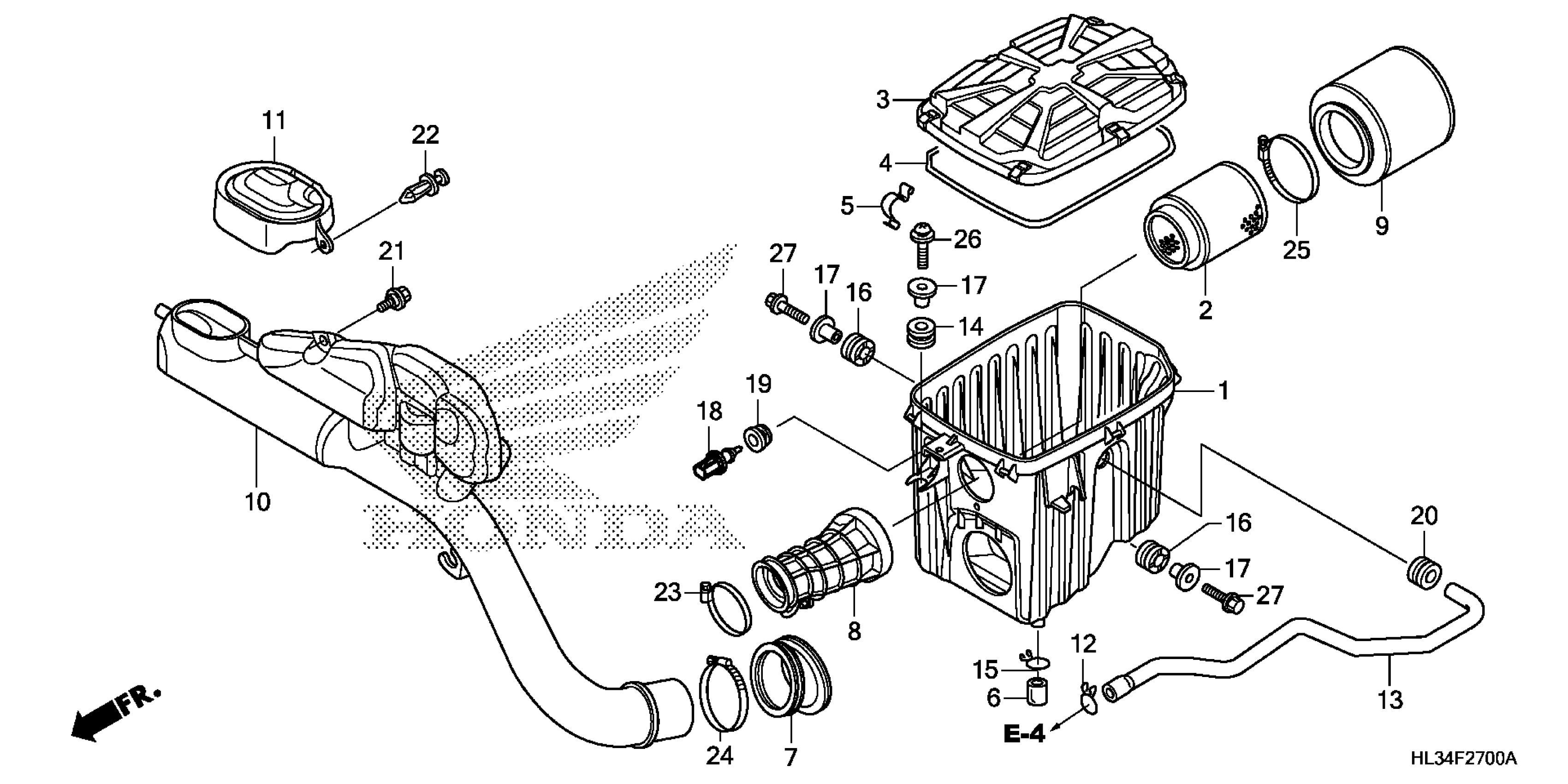

Honda SXS700M2AC (16) PIONEER 700, USA, VIN# 1HFVE022-G4200001 AIR CLEANER Diagram
