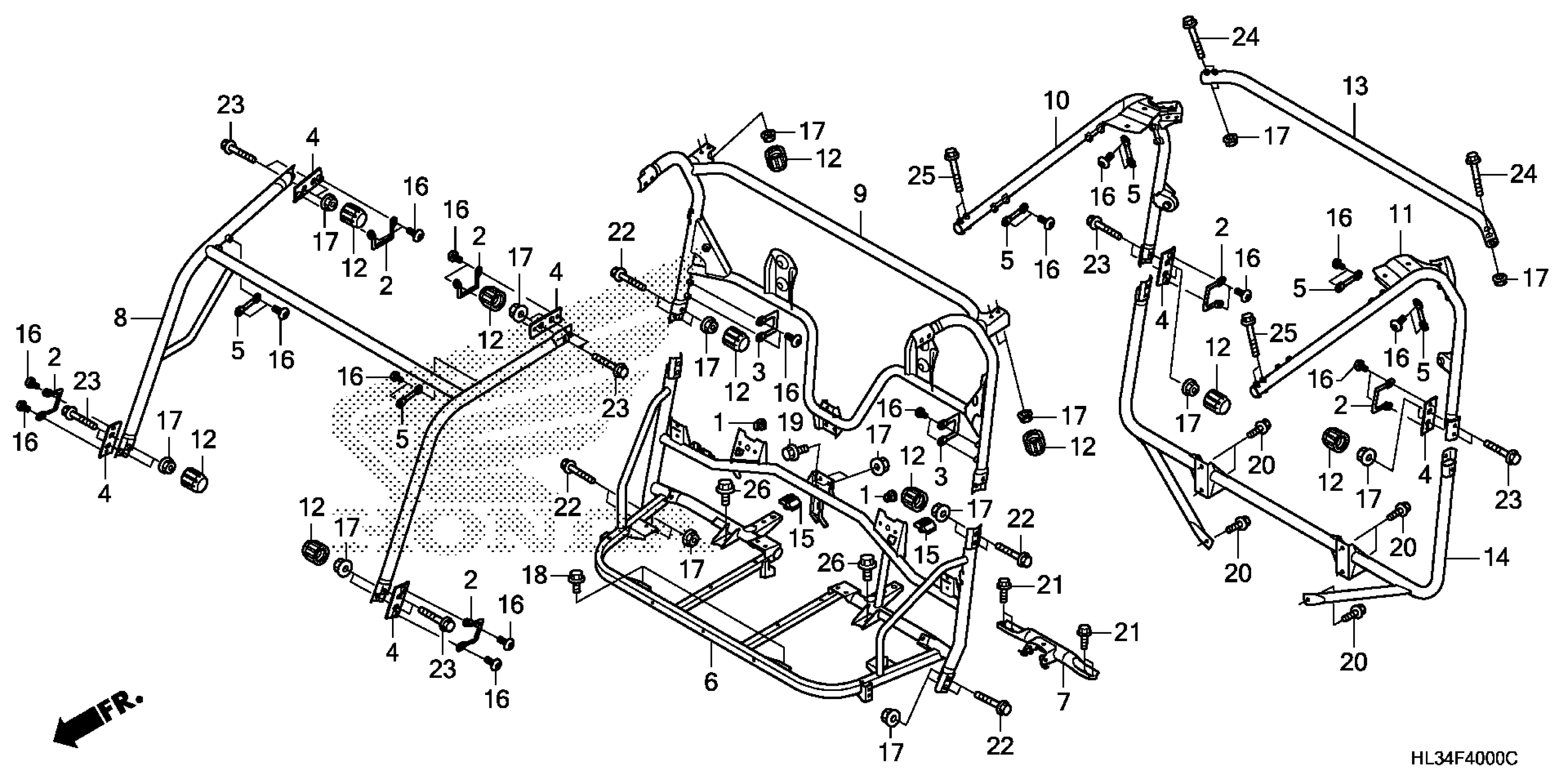

Honda SXS700M24AC (14) PIONEER 700, USA, VIN# 1HFVE028-E4000001 TO 1HFVE028-E4099999 ROLL BAR (1) Diagram

RUBBER, STOPPER

47117-196-000

$2.59

WIRE A, SIDE NET

67312-HL3-A00

$1.82

NUT, PLATE (6MM)

67314-HL3-A00

$13.49

WIRE, SIDE NET

67317-HL1-A00

$12.65

PIPE, MIDDLE ROLL BAR (LOWER)

71910-HL3-A00

$592.03

PIPE, ROLL BAR CROSS

71940-HL3-A00

$415.37

PIPE, FR. ROLL BAR

71950-HL3-A00

$389.04

PIPE, MIDDLE ROLL BAR (UPPER) (2P)

71960-HL3-A10

$389.91

CAP, ROLL BAR NUT

71980-HL1-A00

$2.31

RUBBER, BED MOUNTING

81620-HL3-A00

$2.09

BOLT, SOCKET (6X10)

90106-HL1-A00

$2.50

NUT, FLANGE (10MM)

90303-428-900

$3.19

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.19

BOLT, FLANGE (8X12)

95701-08012-00

$1.04

BOLT, FLANGE (10X20) BOLT, FLANGE (10X16)

95701-10020-00

$2.17

BOLT, FLANGE (10X25)

95701-10025-00

$2.44

BOLT, FLANGE (10X55)

95701-10055-07

$2.68

BOLT, FLANGE (10X60)

95701-10060-07

$1.96

BOLT, FLANGE (12X20)

95701-12020-08

$2.38
