Description

Price

3

RECTIFIER ASSY., REGULATOR

31600-MGZ-J01

$193.01

4

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

5

WIRE HARNESS

32100-HL3-A40

$1,887.33

6

COVER, BATTERY TERMINAL

32414-MW0-000

$3.59

7

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

8

COVER ASSY., FUSE (40A)

38205-HP0-B11

$4.67

9

FUSE, BLOCK (40A)

38211-SNA-A21

$4.45

10

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$10.76

11

RELAY, POWER (MICRO ISO 5P)

38502-MCS-G01

$10.37

12

PGM-FI UNIT

38770-HL3-A42

$198.25

13

COVER, FUSE BOX

61130-HL3-A00

$8.84

15

BAND, WIRE HARNESS (150MM) (NATURAL)

90649-SC2-003

$5.81

16

CLAMP, HARNESS

90652-HC4-003

$5.95

17

CLIP, CONNECTOR (NATURAL)

91533-S04-003

$3.90

18

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$6.13

19

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

20

CLIP, CONNECTOR

91565-S3Y-003

$6.90

21

BAND F, BATTERY (155MM)

95012-17001

$7.23

22

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

23

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

25

FUSE, MINI (10A)

98200-41000

$1.49

26

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49

27

COIL ASSY., IGNITION

30510-HL3-A41

$84.67

28

CAP ASSY., NOISE SUPPRESSOR

30700-HL3-A41

$23.19

29

CAP ASSY., NOISE SUPPRESSOR (NGK)

30701-HN8-F41

$26.07

30

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

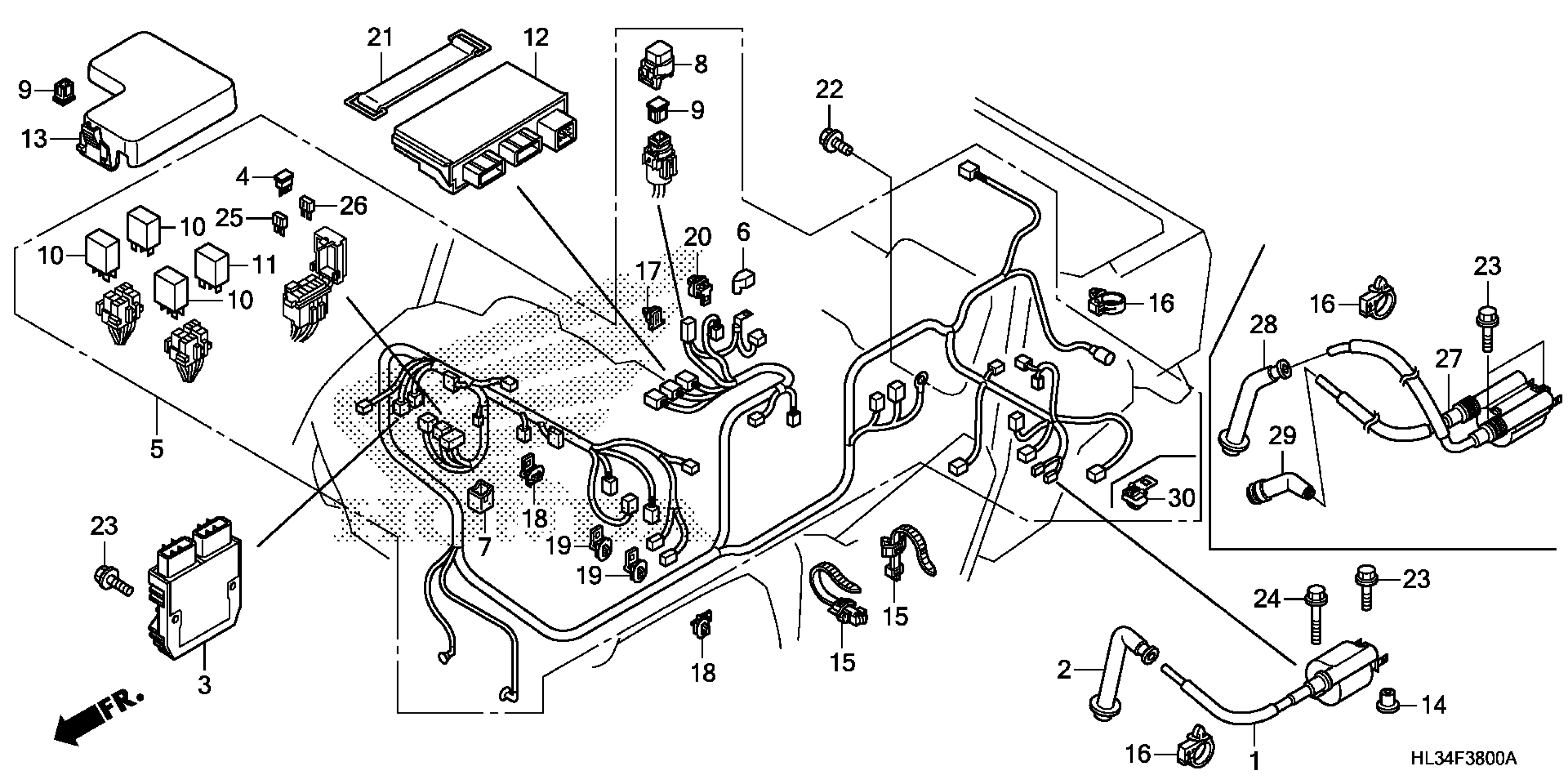

Honda SXS700M22AC (16) PIONEER 700, USA, VIN# 1HFVE028-G4200001 WIRE HARNESS Diagram
