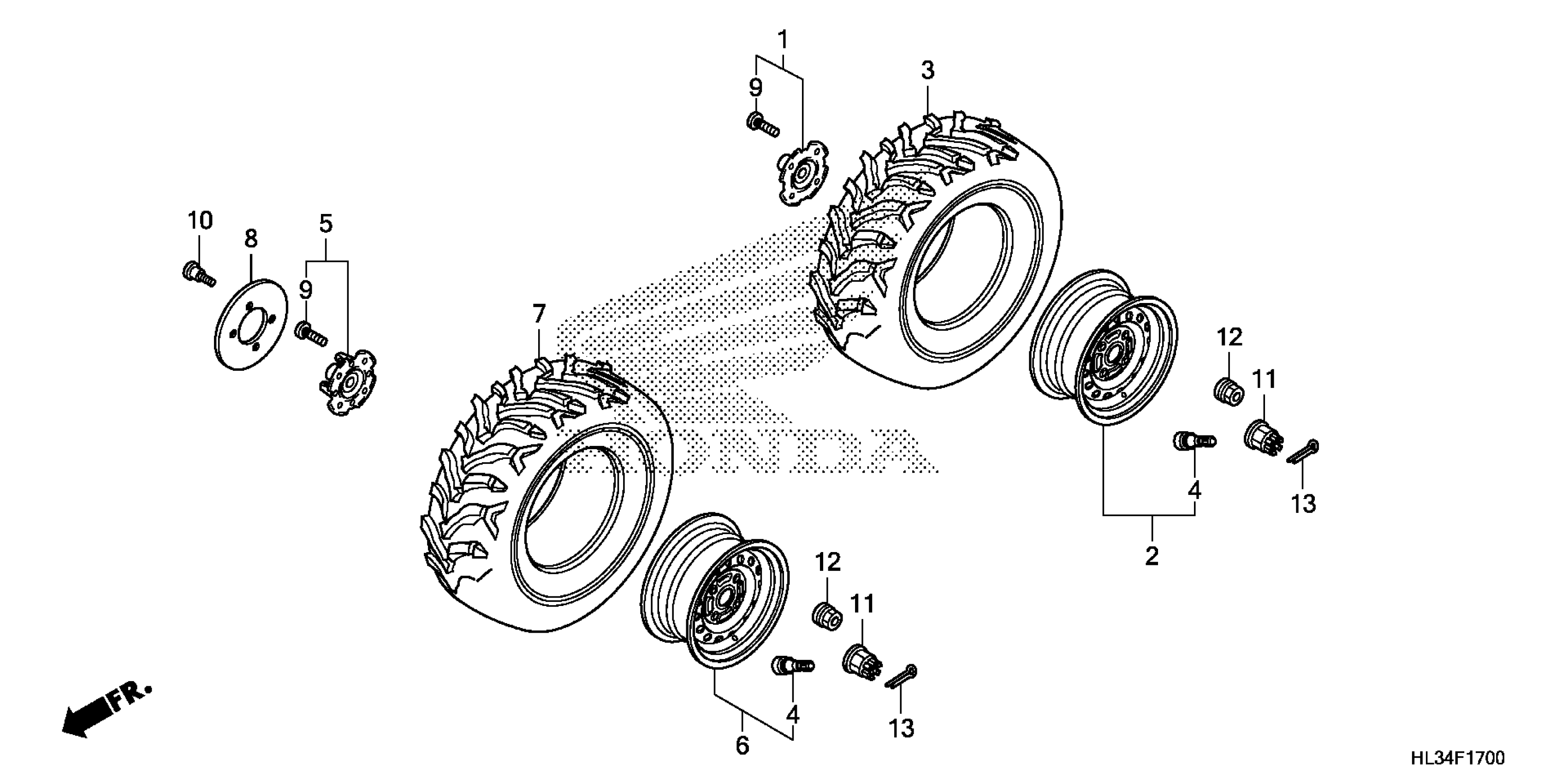

Honda SXS700M22AC (16) PIONEER 700, USA, VIN# 1HFVE028-G4200001 WHEEL Diagram

HUB, RR. WHEEL

42610-HL3-A40

$77.28

WHEEL SUB-ASSY. (RR.)

42650-HL3-A00

$55.98

TIRE (25X10.00-12NHS) (OTR) | Use from Frame SN G4203720. This part replaces 42711-HL3-A02.

42711-HL3-B41

$158.99

TIRE (25X10.00-12NHS) (OTR) | Use from Frame SN G4203720. This part replaces 42711-HL3-A03.

42711-HL3-B41

$158.99

VALVE, RIM (TR412)

42753-HL3-A00

$4.85

HUB SUB-ASSY., FR.

44615-HL3-A00

$70.65

WHEEL SUB-ASSY. (FR.)

44650-HL3-A00

$61.70

TIRE (25X8.00-12NHS) (OTR) | Use from Frame SN G4203720. This part replaces 44711-HL3-A02.

44711-HL3-B41

$147.60

TIRE (25X8.00-12NHS) (OTR) | Use from Frame SN G4203720. This part replaces 44711-HL3-A03.

44711-HL3-B41

$147.60

DISK, FR. BRAKE

45251-HL3-A00

$59.24

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-006.

90113-SM1-005

$2.67

BOLT, WHEEL (ROCKNEL FASTENER)

90113-SM1-005

$2.67

BOLT, DISK (8X24)

90116-HP6-A00

$2.80

NUT, AXLE (20MM)

90304-HM7-A10

$10.51

NUT, WHEEL (FUSE RASHI)

90304-SC2-000

$9.30

PIN, COTTER (4.0X30)

94201-40300

$0.94
