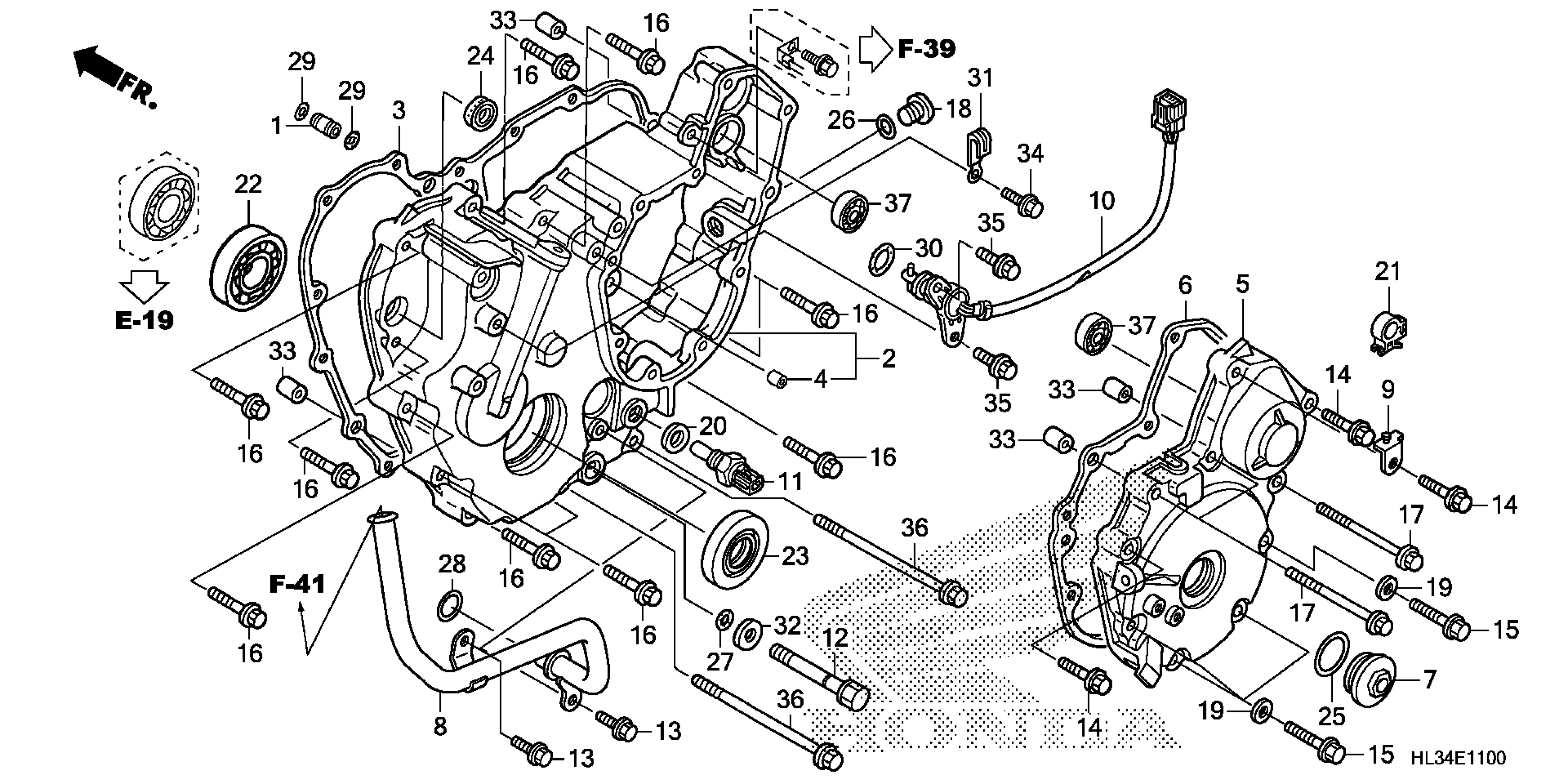

Honda SXS700M22AC (16) PIONEER 700, USA, VIN# 1HFVE028-G4200001 REAR CRANKCASE COVER Diagram

PIN, OIL GUIDE (8MM)

11145-HN8-010

$9.00

COVER, RR.

11340-HL3-A00

$231.44

GASKET, RR. COVER

11345-HN8-000

$22.19

ORIFICE (1.0MM)

11349-HN8-300

$4.26

COVER, ALTERNATOR

11350-HL3-A00

$144.07

GASKET, ALTERNATOR COVER

11396-HN8-A60

$17.41

CAP, TAPPET ADJUSTING HOLE This part replaces 12361-KK0-000.

12361-HP5-600

$18.50

PIPE, OIL FILLER

15660-HL3-A00

$89.36

PLATE, CABLE

16230-HN8-000

$2.26

SWITCH ASSY., CHANGE

35759-HL3-A01

$110.69

SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445)

37750-KPH-701

$51.87

BOLT, DRAIN PLUG (12MM)

90002-HL3-A00

$11.26

BOLT, FLANGE (6X14) (NSHF)

90004-GHB-620

$3.42

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.85

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

BOLT, FLANGE (6X90) (NSHF)

90004-GHB-810

$5.54

CAP (14MM)

90084-KY2-000

$15.97

WASHER A, SEALING (6MM)

90443-035-000

$3.65

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.92

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.18

BEARING, RADIAL BALL (6005) (NTN)

91012-HN2-004

$15.33

OIL SEAL (25X45X7)

91204-HR0-F01

$2.92

OIL SEAL (13X22X5) (ARAI)

91204-KE8-003

$3.12

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (9X1.8)

91305-GE1-920

$1.80

O-RING (17X3.6)

91305-HN8-003

$2.40

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

O-RING (17.0X2.5) (ARAI) This part replaces 91333-567-010.

91333-KE5-003

$2.13

CLIP (2X70)

91413-679-000

$9.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (8X140)

95701-08140-00

$2.84

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
