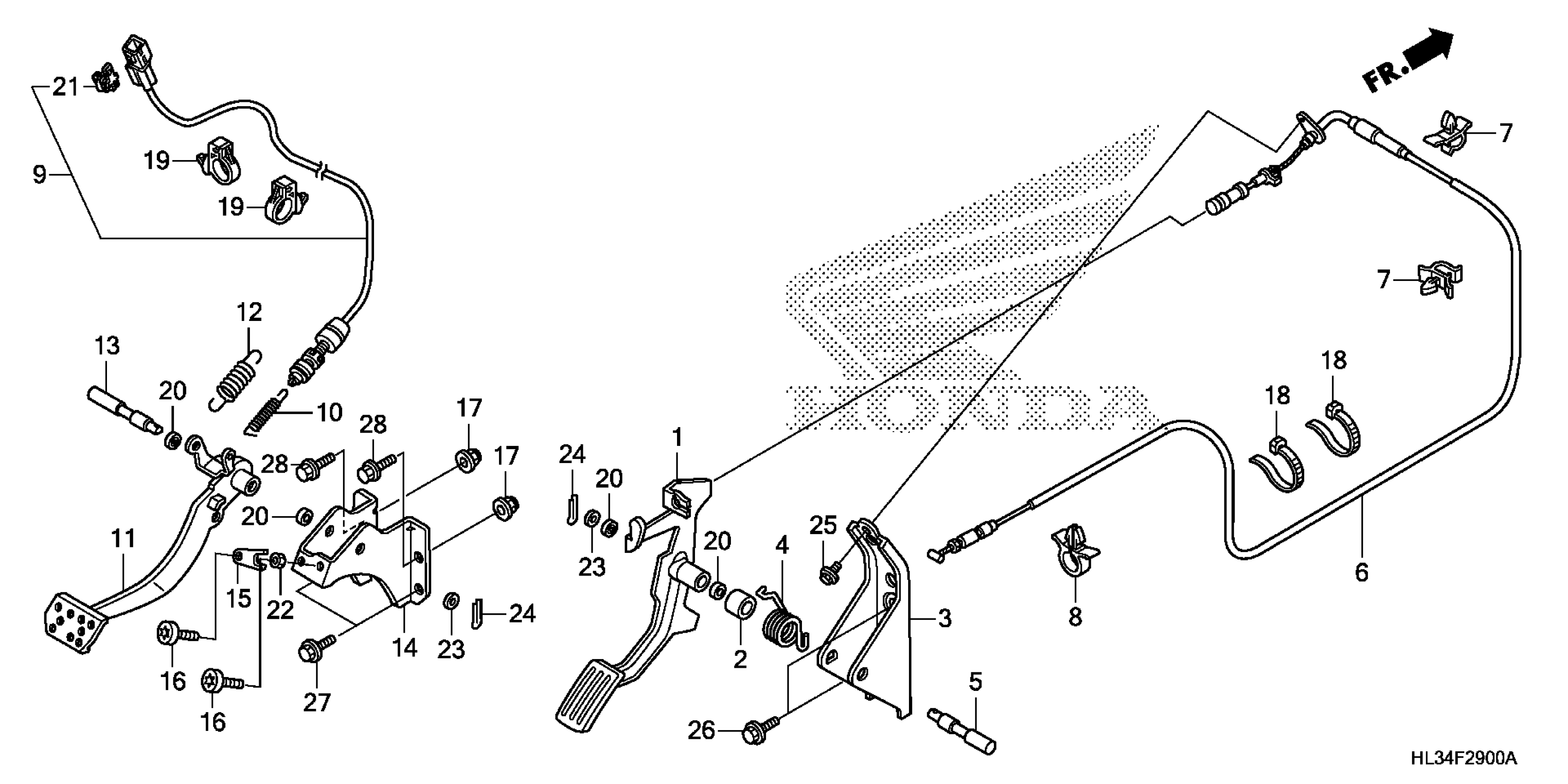

Honda SXS700M22AC (16) PIONEER 700, USA, VIN# 1HFVE028-G4200001 PEDAL Diagram

PEDAL, ACCELERATOR

17810-HL1-A00

$40.52

COLLAR, ACCELERATOR PEDAL

17811-HL1-A00

$3.31

STAY, ACCELERATOR PEDAL

17820-HL1-A00

$81.77

SPRING, ACCELERATOR PEDAL

17830-HL1-A00

$5.31

SHAFT, ACCELERATOR PIVOT

17840-HL3-A00

$14.18

CABLE, THROTTLE

17910-HL3-A00

$44.97

CLIP, WIRE HARNESS

32171-GJ1-003

$3.47

CLIP, THROTTLE CABLE

32175-HL3-A00

$0.56

SWITCH ASSY., STOP

35350-HL3-A01

$54.80

SPRING, STOP SWITCH

35357-KR3-670

$5.12

PEDAL, BRAKE

46510-HL1-A00

$45.21

PEDAL, BRAKE (COO)

46510-HL1-305

Unavailable

SPRING, BRAKE PEDAL

46514-HL1-A00

$9.82

SHAFT, BRAKE PIVOT

46550-HL3-A00

$17.11

STAY, BRAKE PEDAL

46560-HL3-A00

$13.10

PLATE, ADJUSTER NUT

46561-HL1-A00

$4.20

BOLT, FLANGE TORX (8X30)

90106-SJC-000

$1.75

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

BAND, WIRE HARNESS

90651-MA6-720

$3.73

CLAMP, HARNESS

90652-HC4-003

$5.95

OIL SEAL (10X16X4.5) This part replaces 91206-333-003.

91259-VM0-000

$4.22

OIL SEAL (10X16X4.5)

91259-VM0-000

$4.22

CLIP, CONNECTOR

91565-S3Y-003

$6.90

NUT, HEX. (8MM)

94002-08000-0S

$1.49

NUT, HEX. (8MM) This part replaces 94002-08080-0S.

94002-08000-0S

$1.49

WASHER, PLAIN (10MM)

94102-10800

$3.39

PIN, SPLIT (3.0X18)

94201-30180

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

BOLT, FLANGE (8X35)

95701-08035-00

$2.30
