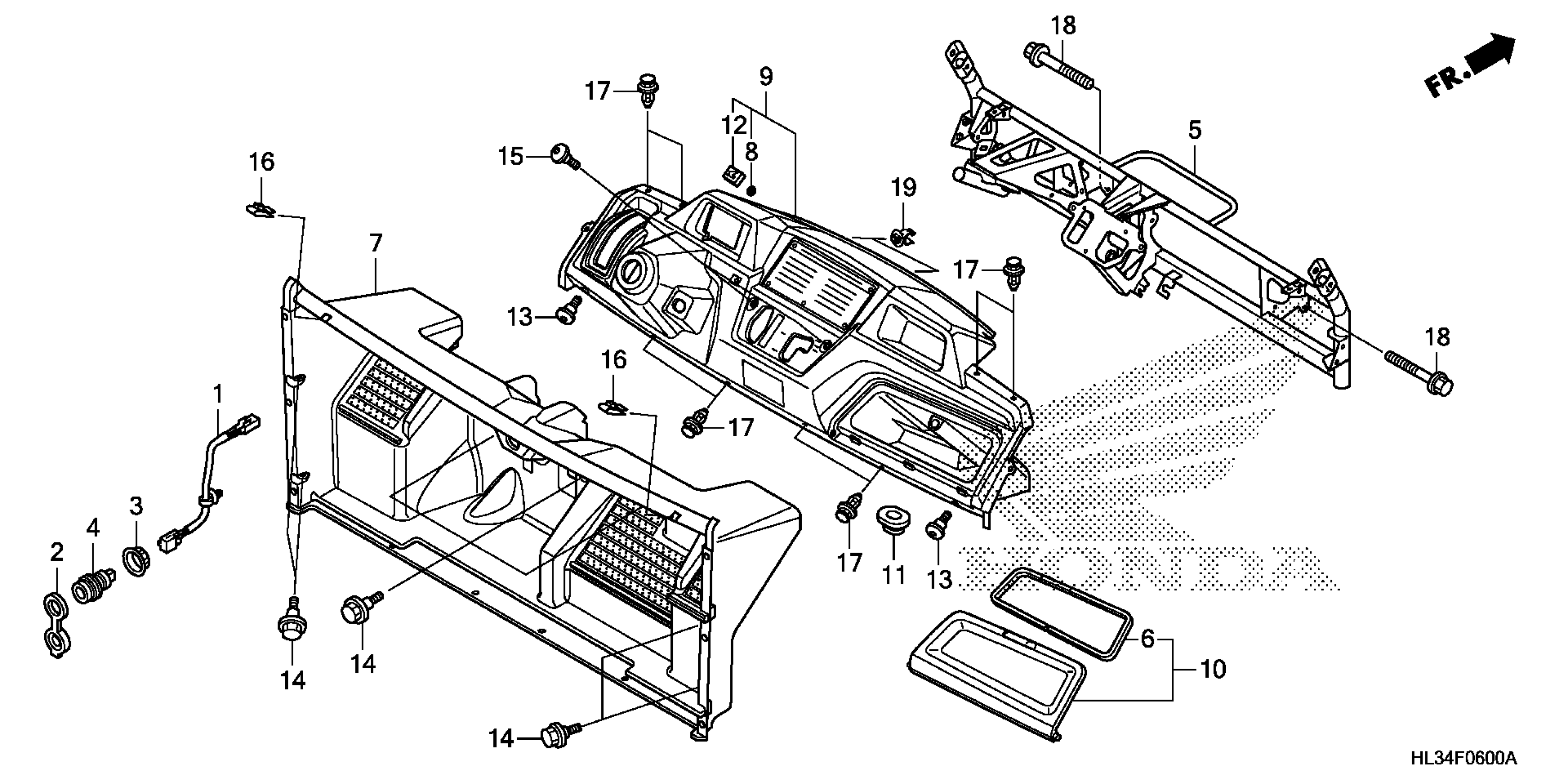

Honda SXS700M22AC (16) PIONEER 700, USA, VIN# 1HFVE028-G4200001 INSTRUMENT PANEL Diagram

#

Description
Price

1

SUB-HARNESS, ACCESSORY

31651-HL3-A00

$4.43

2

CAP

31652-HP0-A01

$2.24

3

NUT

31653-HP0-A01

$1.49

4

SOCKET, ACCESSORY

31655-HP0-A01

$24.16

5

FRAME, INSTRUMENT PANEL

53210-HL3-A00

Unavailable

6

SEAL, GLOVE BOX

61122-HL3-A00

$5.82

7

CVR, FR. FLOOR *NH1* This part replaces 64100-HL3-A00ZA.

64100-HL3-A02ZA

$87.31

7

CVR, FR. FLOOR *NH1* This part replaces 64100-HL3-A01ZA.

64100-HL3-A02ZA

$87.31

8

NUT, SPEED (4MM)

64206-MJ0-000

$1.51

9

PANEL ASSY., INSTRUMENT *NH1* (BLACK)

68100-HL3-A10ZA

$391.13

10

LID ASSY., GLOVE BOX *NH1* (BLACK)

68200-HL3-A00ZB

$21.93

11

GROMMET, SIDE COVER

83551-MA6-000

$3.35

12

EMBLEM, PRODUCT (UEHARA)

86150-HN8-004

$7.66

13

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

14

BOLT, FLANGE (6MM)

90111-187-000

$5.59

15

SCREW, PAN (6X11)

90119-MEW-920

$2.03

16

NUT, AIR SPOILER CLIP

90305-SH3-000

$6.48

16

NUT, AIR SPOILER CLIP This part replaces 90323-SE0-000.

90305-SH3-000

$6.48

16

NUT, AIR SPOILER CLIP This part replaces 90323-SE1-000.

90305-SH3-000

$6.48

17

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

18

BOLT, FLANGE (8X50)

95701-08050-00

$2.28

19

CLAMP A, FUEL HOSE

16725-PNA-003

$1.49
