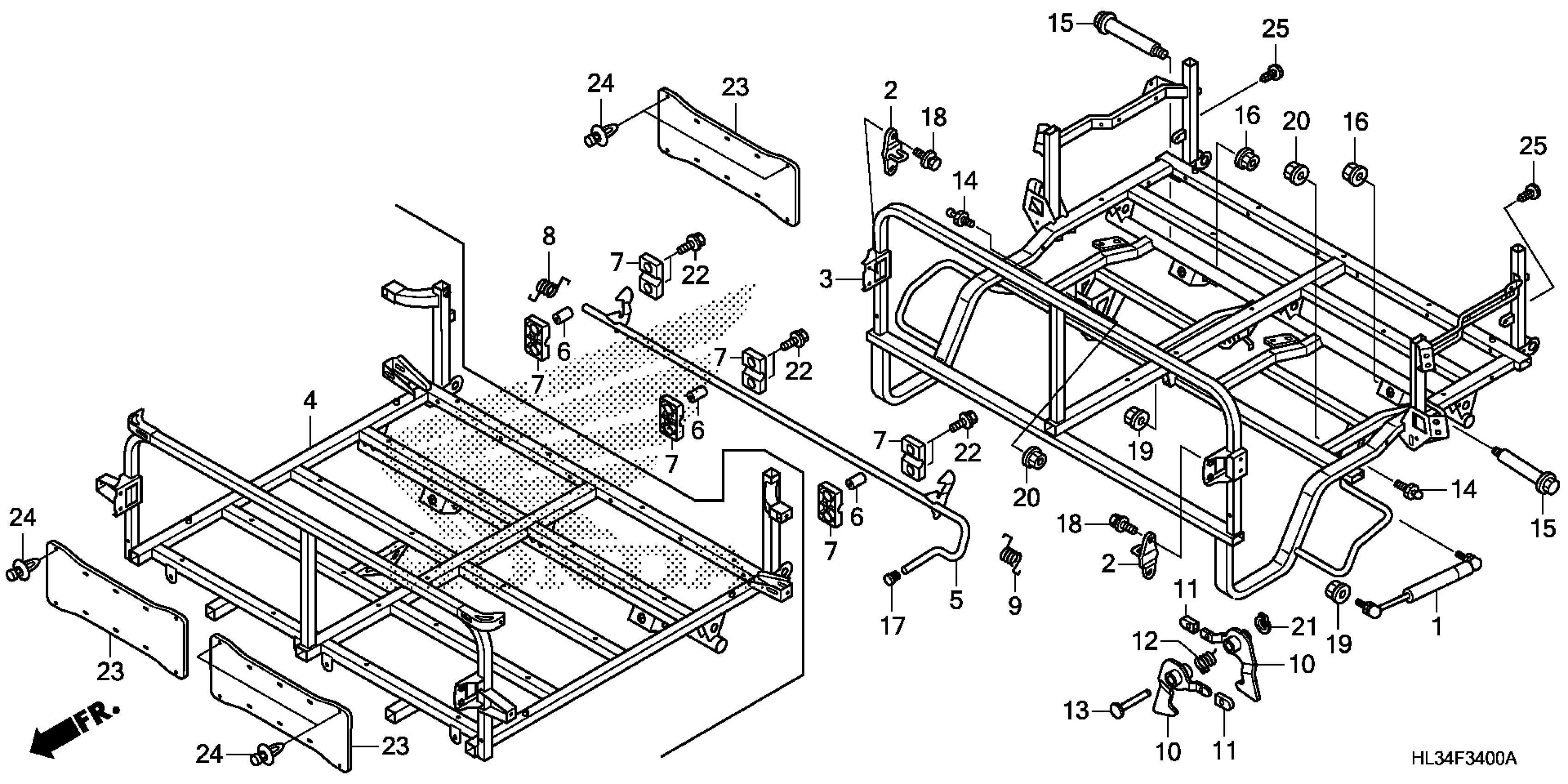

Honda SXS700M22AC (16) PIONEER 700, USA, VIN# 1HFVE028-G4200001 BED Diagram

STAY, BED OPEN

74820-HL3-A11

$18.12

STRIKER ASSY., TRUNK

74862-S84-A01

$7.15

BED, RR.

81500-HL3-A50

$722.21

LEVER, BED LOCK

81521-HL3-A00

$56.85

COLLAR, LEVER BRACKET

81524-HL3-A00

$1.15

HOLDER, LEVER LOCK

81526-HL3-A00

$0.75

SPRING, R. LOCK LEVER

81527-HL3-A00

$1.47

SPRING, L. LOCK LEVER

81528-HL3-A00

$1.47

BOLT, FLANGE (8MM)

90112-HL3-A00

$4.44

NUT, FLANGE (8MM)

90361-SR3-000

$0.72

CAP, PIPE END (1/2")

90851-HL1-A00

$2.91

BOLT-WASHER (6X16)

93404-06016-07

$1.50

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.87

BOLT, FLANGE (6X30)

95701-06030-00

$1.74

RUBBER, DUST SEAL

81546-HL3-A00

$8.58

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

CLIP, ROOF (7MM) *NH690L* (PREMIUM BLACK)

90671-S0D-003YJ

$2.19
