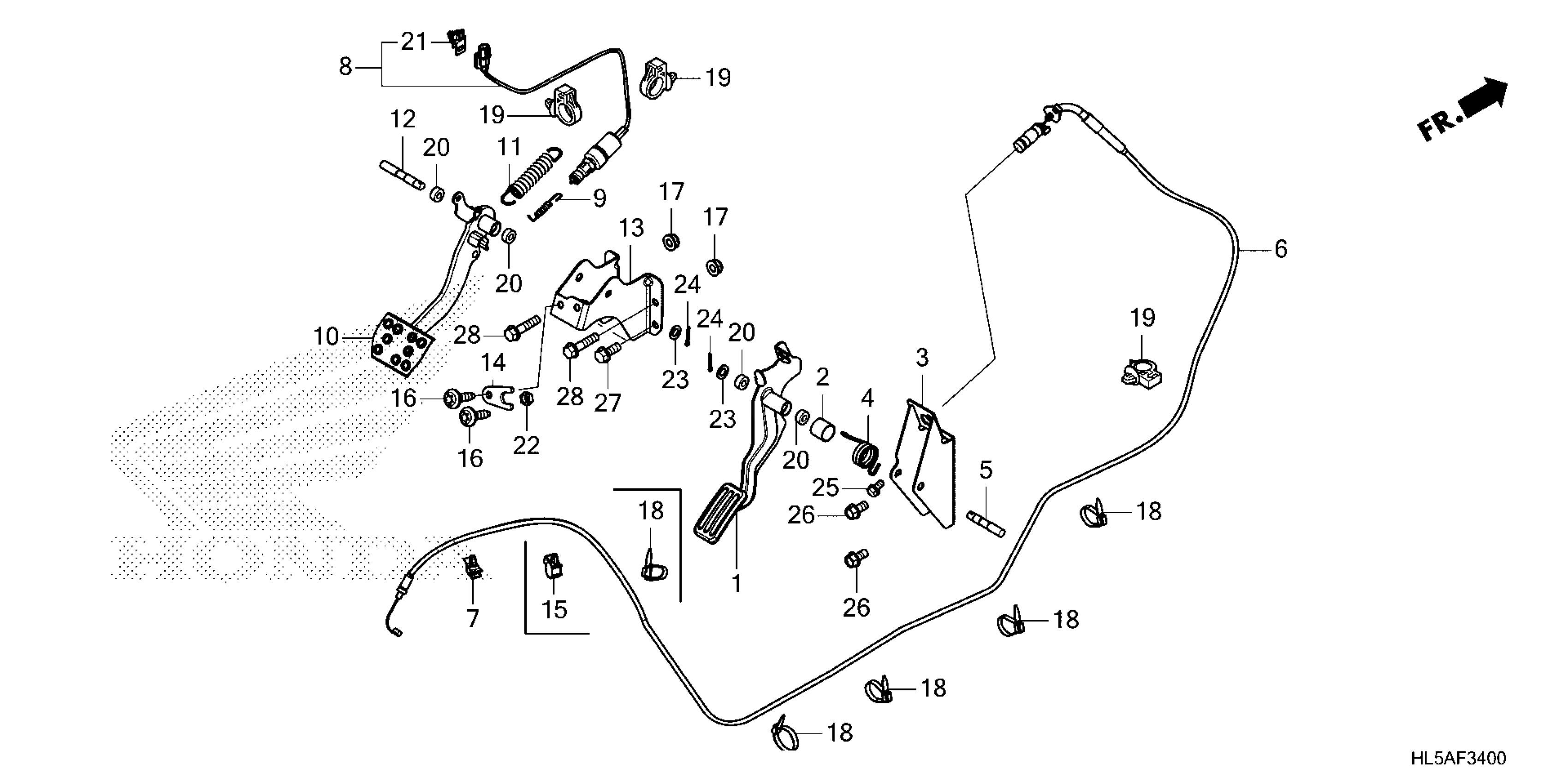

Honda SXS520MAC (26) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE074-T4100001 TO 1HFVE074-T4199999 PEDAL Diagram

#

Description
Price

1

PEDAL, ACCELERATOR

17810-HL5-A00

$19.82

2

COLLAR, ACCELERATOR PEDAL

17811-HL1-A00

$3.06

3

STAY, ACCELERATOR PEDAL

17820-HL5-E60

$15.40

4

SPRING, ACCELERATOR PEDAL

17830-HL5-A00

$13.19

5

SHAFT, ACCELERATOR PIVOT

17840-HL3-A00

$12.72

6

CABLE, THROTTLE

17910-HL5-E61

$54.96

8

SWITCH ASSY., STOP

35350-HL3-A01

$50.63

9

SPRING, STOP SWITCH

35357-KR3-670

$4.88

10

PEDAL, BRAKE

46510-HL5-A00

$30.10

11

SPRING, BRAKE PEDAL

46514-HL1-A00

$9.07

12

SHAFT, BRAKE PIVOT

46550-HL3-A00

$12.18

13

STAY, BRAKE PEDAL

46560-HL5-A00

$27.85

14

PLATE, ADJUSTER NUT

46561-HL1-A00

$3.76

15

CLIP, RETURN HOSE

53781-SE0-952

$7.00

15

CLIP, RETURN HOSE

53781-MKG-VB1

$0.88

16

BOLT, FLANGE TORX (8X30)

90106-SJC-000

$1.57

17

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.19

17

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.19

18

BAND, WIRE HARNESS

90651-MA6-720

$3.63

19

CLAMP, HARNESS

90652-HC4-003

$5.68

20

OIL SEAL (10X16X4.5) This part replaces 91206-333-003.

91259-VM0-000

$3.50

20

OIL SEAL (10X16X4.5)

91259-VM0-000

$3.50

21

CLIP, CONNECTOR

91565-S3Y-003

$6.38

22

NUT, HEX. (8MM)

94002-08000-0S

$1.21

22

NUT, HEX. (8MM) This part replaces 94002-08080-0S.

94002-08000-0S

$1.21

23

WASHER, PLAIN (10MM)

94102-10800

$3.53

24

PIN, SPLIT (3.0X18)

94201-30180

$0.96

25

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

26

BOLT, FLANGE (8X16)

95701-08016-08

$1.62

27

BOLT, FLANGE (8X20)

95701-08020-08

$1.46

28

BOLT, FLANGE (8X35)

95701-08035-08

$1.29
