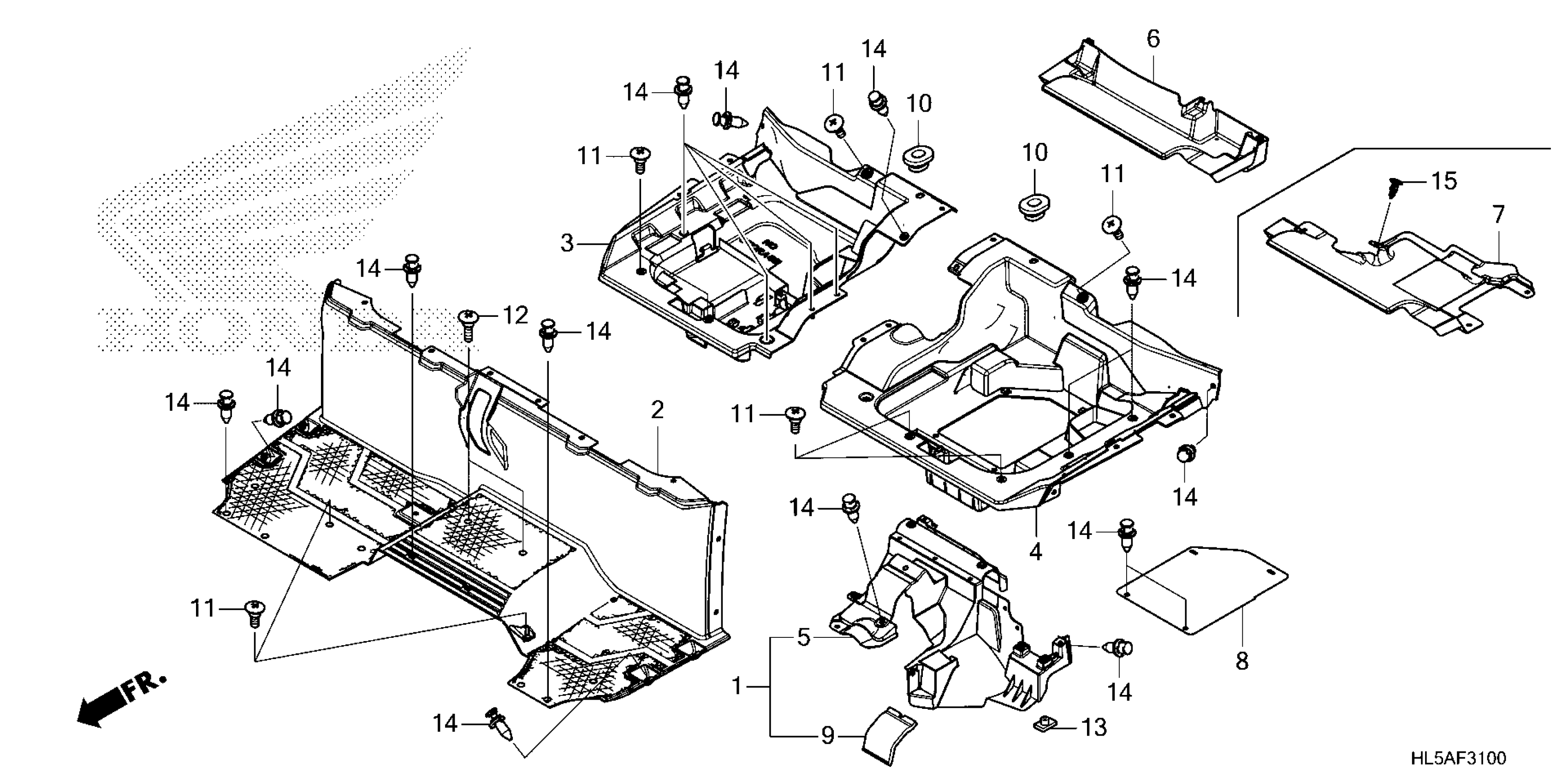

Honda SXS520MAC (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE074-S4000001 TO 1HFVE074-S4099999 SEAT BOTTOM COVER (1) Diagram

PROTECTOR, SEAT HEAT (LOWER)

71130-HL5-E60

$52.61

FLOOR, RR. *NH1* (BLACK)

71131-HL5-A00ZA

$57.61

COVER ASSY., R. SEAT (LOWER)

71140-HL5-E60

$40.41

COVER, L. SEAT (LOWER)

71134-HL5-A00

$38.30

COVER, RR. SEAT

71136-HL5-E60

$49.95

LID, MAINTENANCE

71138-HL5-A00

$5.67

MAT D, HEAT PROTECTOR

71139-HL5-E60

$5.82

GROMMET, SIDE COVER

83551-MA6-000

$3.35

SCREW, SPECIAL (6MM)

90103-HF1-670

$6.08

SCREW, SPECIAL (6X16)

90114-MFL-000

$2.26

NUT, SPECIAL (6X7)

90303-HA0-680

$3.85

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

CLIP, COWL TOP

91505-SL0-003

$2.53
