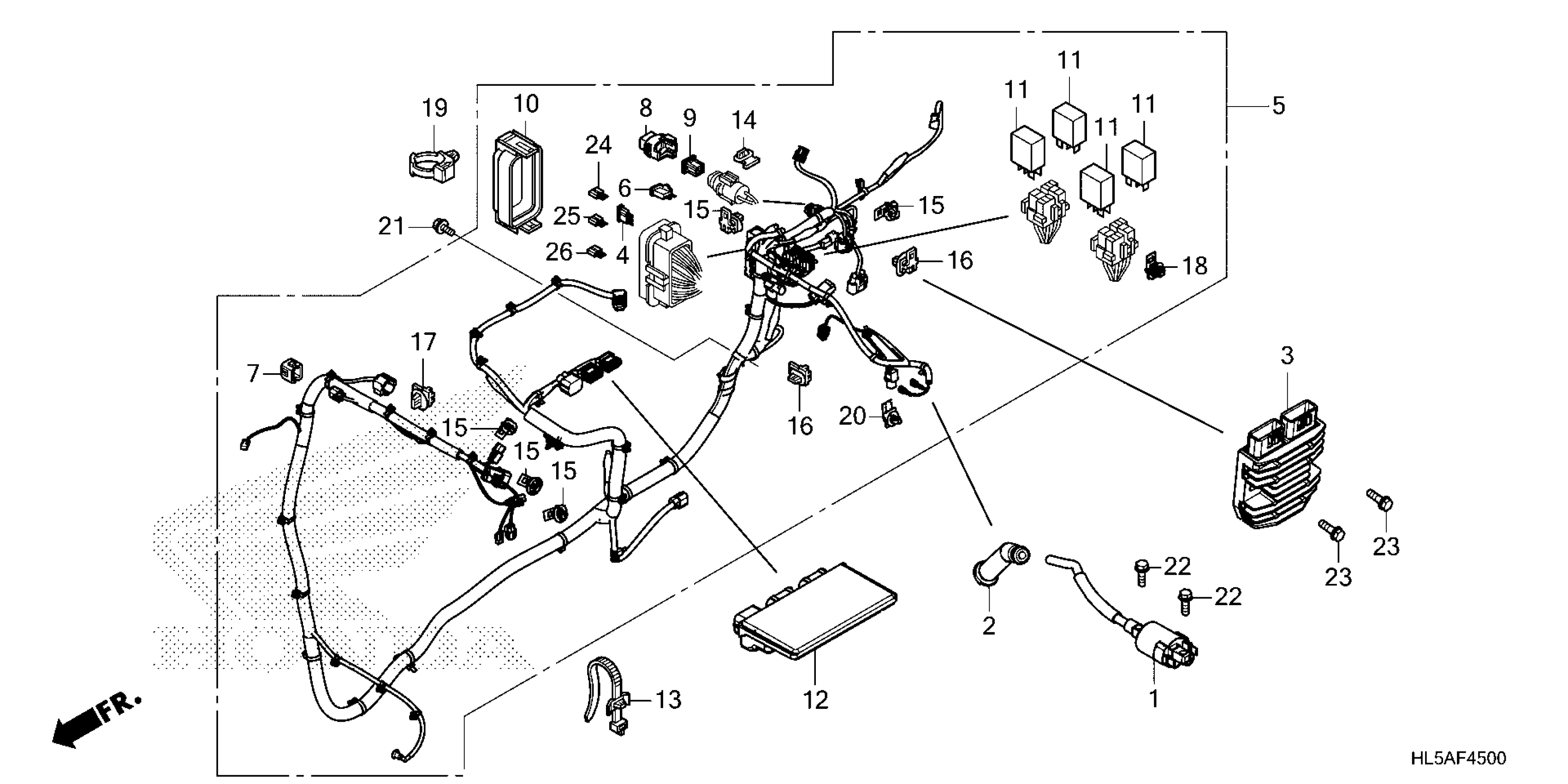

Honda SXS520MAC (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE074-P4800001 TO 1HFVE074-P4899999 WIRE HARNESS Diagram

COIL, IGNITION

30510-HL5-A01

$83.49

CAP ASSY., NOISE SUPPRESSOR

30700-MBN-671

$27.80

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$194.27

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-HL5-L01

$455.90

CONNECTOR, DIODE (2P)

32146-SH3-003

$18.39

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

COVER ASSY., FUSE (40A)

38205-HP0-B11

$4.67

FUSE, BLOCK (40A)

38211-SNA-A21

$4.45

COVER SET, FUSE

38230-HL5-A00

$2.92

RELAY, POWER (MICRO ISO 4P)

38503-MCA-A61

$3.53

PGM-FI UNIT

38770-HL5-F63

$222.72

BAND, WIRE HARNESS (150MM) (NATURAL)

90649-SC2-003

$5.81

CLIP, CONNECTOR (NATURAL)

91533-S04-003

$3.90

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$6.13

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

CLIP, CONNECTOR (BROWN)

91535-TF0-003

$3.03

CLIP, RELAY HOLDER (NATURAL)

91536-STK-003

$1.49

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.44

CLIP, CONNECTOR

91565-S3Y-003

$6.90

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67
