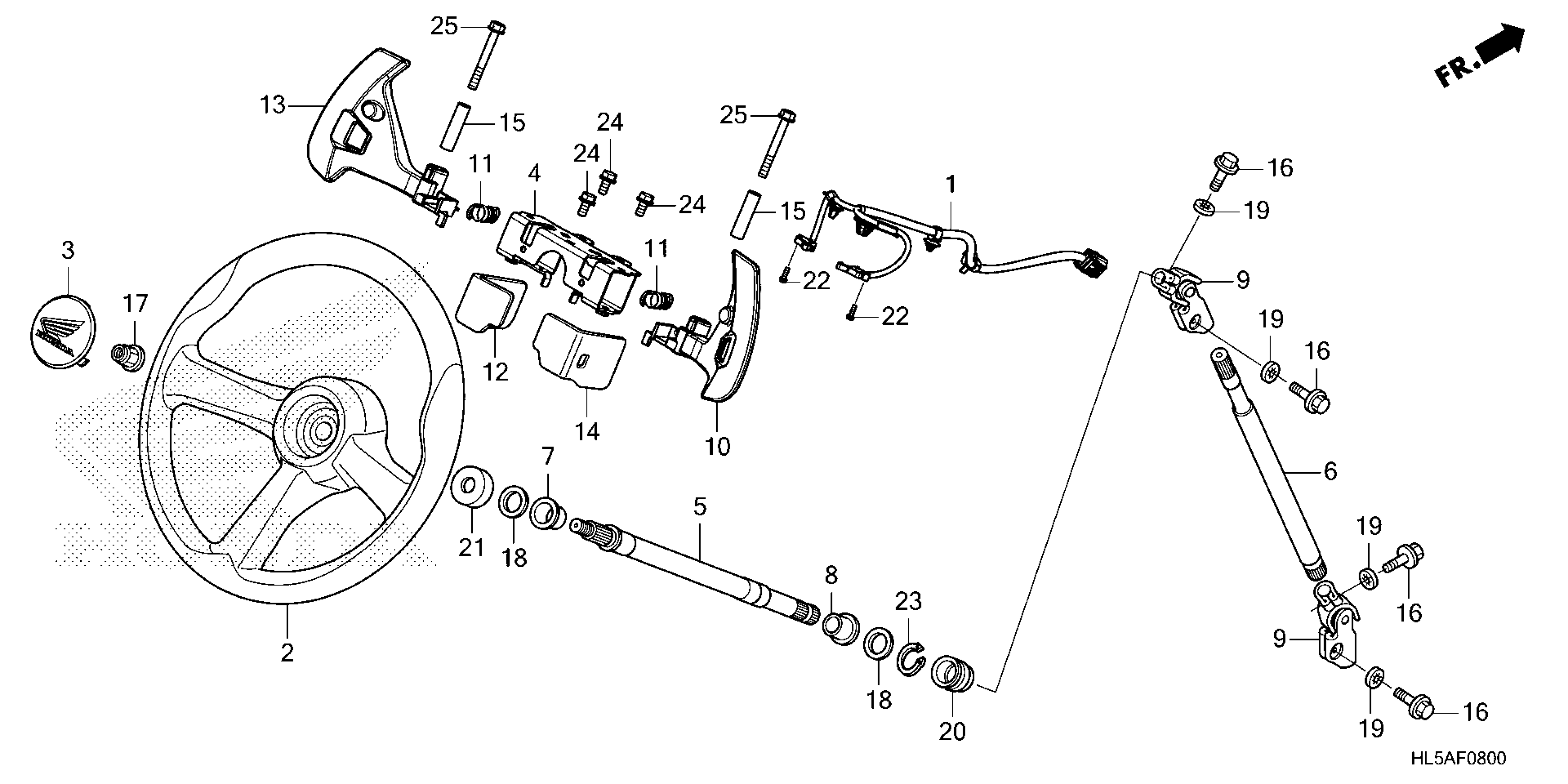

Honda SXS520MAC (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE074-P4800001 TO 1HFVE074-P4899999 STEERING WHEEL@STEERING SHAFT Diagram

SWITCH ASSY., SHIFT CHANGE

35440-HL5-A01

$87.59

WHEEL, STEERING

53110-HL3-A01

$38.08

CAP, STEERING

53122-HL4-AK1

$5.05

PLATE, PADDLE SHIFT

53220-HL5-A00

$18.62

SHAFT, STEERING (UPPER)

53314-HL3-A00

$103.03

SHAFT, STEERING (LOWER)

53315-HL5-A00

$28.00

BUSH, STEERING SHAFT (UPPER)

53316-HL3-A00

$6.54

BUSH, STEERING SHAFT (LOWER)

53317-HL3-A00

$6.79

JOINT B, STEERING

53323-SW5-003

$144.81

PADDLE, R.

78560-HL5-A00

$18.46

SPRING, PADDLE

78561-HL5-A00

$1.05

RUBBER, R. DUST SEAL (L. SIDE)

78562-HL5-A00

$5.31

PADDLE, L.

78565-HL5-A00

$21.56

RUBBER, L. DUST SEAL (R. SIDE)

78567-HL5-A00

$5.31

COLLAR, PADDLE PIVOT

78570-HL5-A00

$2.56

BOLT, STEERING YOKE (8X28) (NIPPON SEIKO)

90135-SB0-003

$0.49

NUT, SELF-LOCK (OHASHI)

90380-SB2-003

$1.64

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

WASHER, TOOTHED LOCK

90511-671-003

$0.11

SEAL, STEERING SHAFT (LOWER)

91257-HL3-A01

$5.13

SEAL, STEERING SHAFT (UPPER)

91262-HL3-A01

$5.98

SCREW-WASHER (3X12)

93892-03012-08

$0.69

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X50)

95701-06050-08

$2.16
