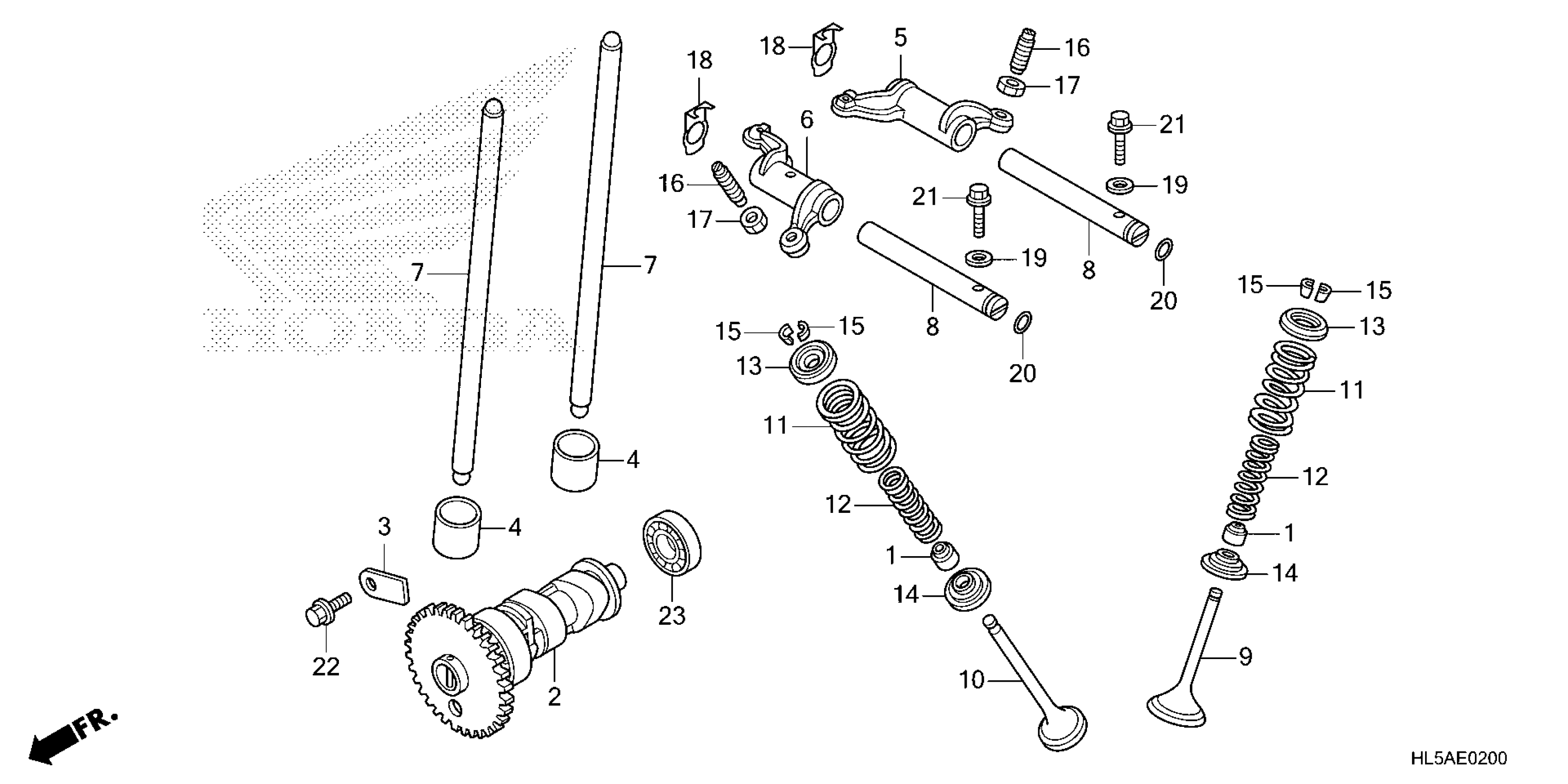

Honda SXS520MAC (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE074-P4800001 TO 1HFVE074-P4899999 CAMSHAFT@VALVE Diagram

SEAL, EX. VALVE STEM (IN./EX.)

12208-MBB-003

$11.21

CAMSHAFT (38T)

14100-HR6-A60

$166.73

PLATE, CAM FIXING

14115-HP5-000

$3.88

FOLLOWER, CAM

14421-HN8-000

$24.18

ARM, IN. VALVE ROCKER

14431-HR0-F00

$53.91

ARM, EX. VALVE ROCKER

14432-HP5-600

$52.18

ROD, PUSH

14440-HP5-600

$14.16

SHAFT, ROCKER ARM

14451-HR3-A40

$21.44

VALVE, IN.

14711-HR6-MF0

$41.48

VALVE, EX.

14721-HR6-MF0

$60.65

SPRING, VALVE (OUTER)

14751-HP0-A00

$8.12

SPRING, VALVE (INNER)

14761-HP0-A00

$5.92

RETAINER, VALVE SPRING

14771-HP0-A00

$8.34

SEAT, VALVE SPRING

14775-HP0-A00

$6.93

COTTER, VALVE

14781-MBB-003

$4.31

SCREW, TAPPET ADJUSTING

90012-426-000

$7.98

NUT, TAPPET ADJUSTING

90206-250-000

$3.07

WASHER, SPRING

90403-HP5-600

$2.11

WASHER, SEALING (6MM)

90441-706-000

$1.12

O-RING (1.5X9.5)

91306-MG3-000

Unavailable

O-RING (1.5X9.5) This part replaces 91306-105-690.

91306-MG3-000

Unavailable

BOLT, FLANGE (6X22)

95701-06022-00

$1.88

BOLT, FLANGE (8X16)

95701-08016-00

$1.88

BEARING, RADIAL BALL (6202)

96100-62020-00

$8.42
