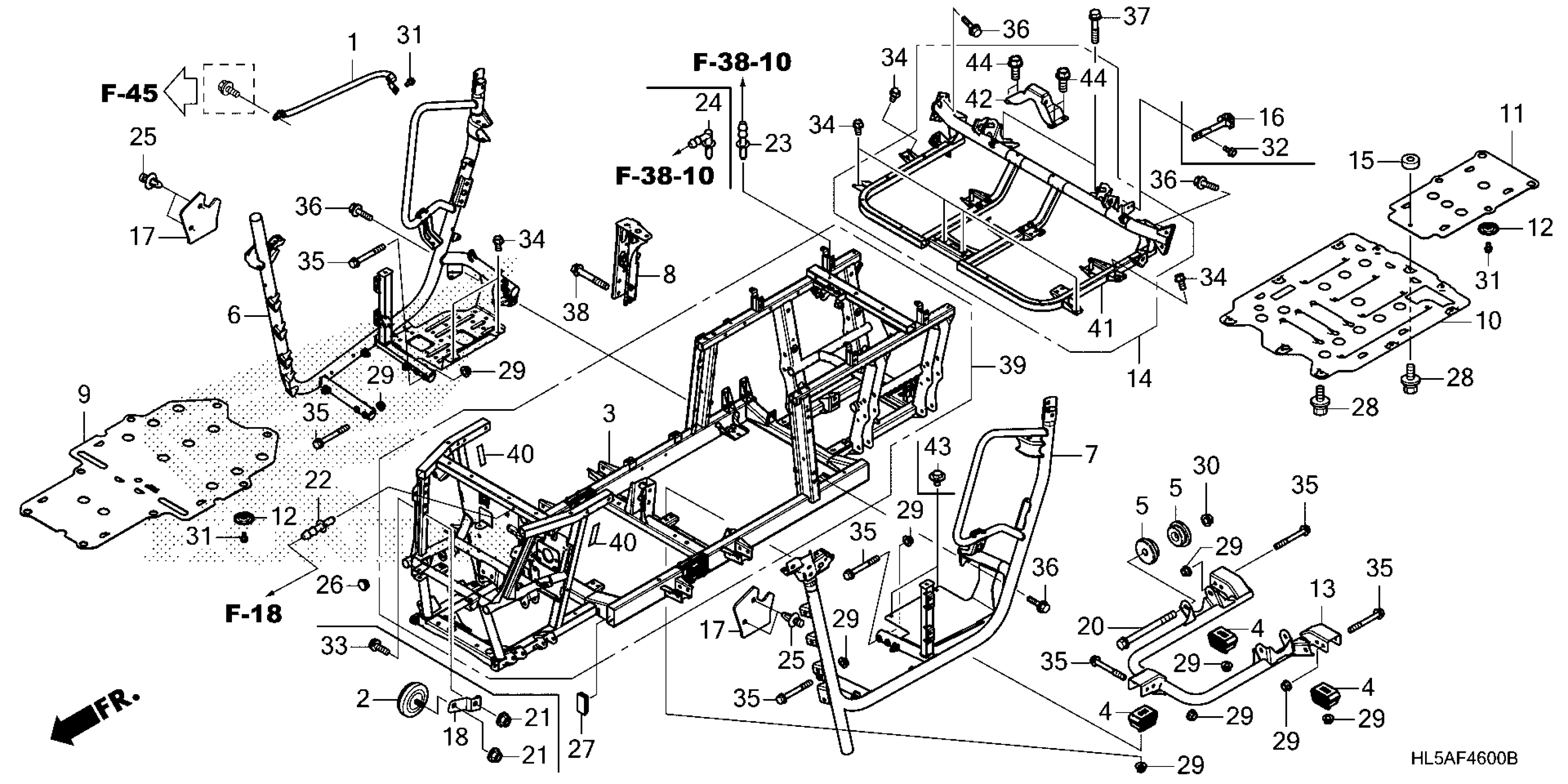

Honda SXS520MAC (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE074-N4700001 TO 1HFVE074-N4799999 FRAME Diagram

#

Description
Price

1

CABLE, FRAME GROUND

32603-HL3-A00

$6.36

3

FRAME COMP

50100-HL5-K00

$1,049.74

4

RUBBER, ENGINE MOUNTING

50301-HL5-A01

$22.89

5

COLLAR, ENGINE MOUNTING

50304-HL5-A00

$4.45

6

PIPE COMP, R STEP

50310-HL5-L00

$427.07

7

PIPE COMP, L STEP

50320-HL5-K00

$364.32

8

BRACKET, PARKING

50330-HL5-A00

$39.64

9

PLATE, FR. SKID

50400-HL5-A00

$71.90

10

PLATE, MIDDLE SKID

50401-HL5-A41

$114.94

11

PLATE, RR. SKID

50402-HL5-A00

$22.49

12

WASHER, SKID PLATE

50403-HL3-A00

$1.96

13

FRAME, ENGINE

50500-HL5-E60

$65.86

14

FRAME, SEAT

50600-HL5-F60

$445.17

15

COLLAR, STEP RUBBER SETTING

50605-GZ4-670

$3.39

16

STAY, BED LATCH

50650-HL5-E60

$27.41

17

PLATE, LATCH PROTECTOR

61180-HL5-A40

$1.54

20

BOLT, ALTERNATOR

90057-671-000

$18.65

22

JOINT, BREATHER TUBE

90652-HF7-003

$8.54

24

JOINT, BREATHER TUBE

90652-HL5-E61

$5.58

25

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

26

CAP, PIPE END (1-1/4")

90860-HL5-A00

$1.03

27

CAP, PIPE END

90883-HL3-A00

$1.58

28

BOLT-WASHER (6X12)

93404-06012-07

$1.48

28

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.48

28

BOLT-WASHER (6X12) This part replaces 93414-06012-08.

93404-06012-07

$1.48

29

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.86

30

NUT, FLANGE (10MM)

94050-10000

$1.41

31

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

32

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

34

BOLT, FLANGE (8X16)

95701-08016-00

$1.64

35

BOLT, FLANGE (8X65)

95701-08065-00

$1.57

36

BOLT, FLANGE (10X20) BOLT, FLANGE (10X16)

95701-10020-00

Unavailable

37

BOLT, FLANGE (10X50)

95701-10050-00

$2.55

38

BOLT, FLANGE (10X65)

95701-10065-00

$2.99
