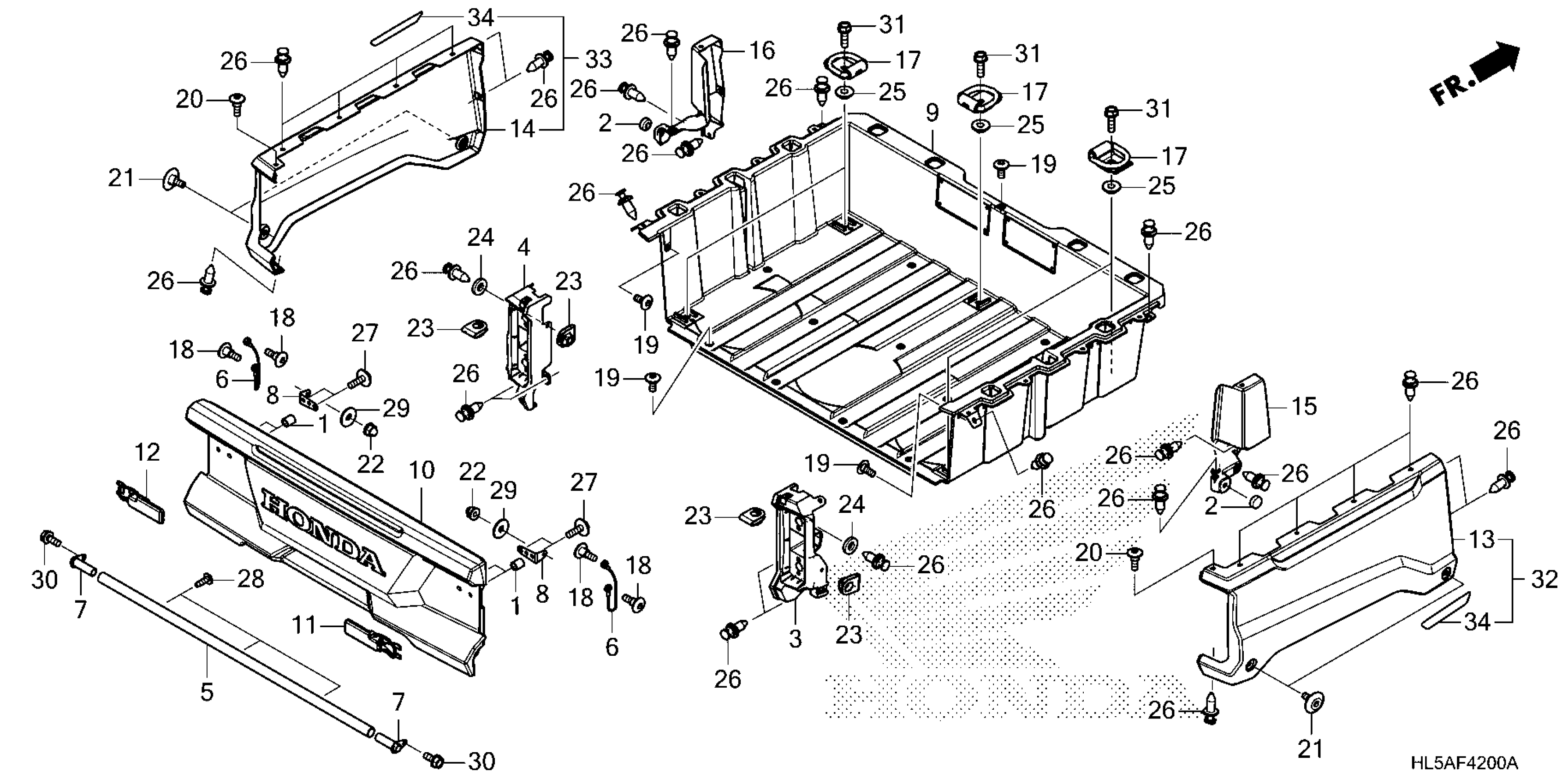

Honda SXS520MAC (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE074-N4700001 TO 1HFVE074-N4799999 BED PLATE@REAR GATE Diagram

COLLAR (6.4X10)

23813-KPH-720

$4.62

RUBBER, STAND STOPPER

50524-HL4-F00

$4.77

COVER *NH1* This part replaces 80130-HL5-E60ZA.

80130-HL5-E61ZA

$30.83

COVER *NH1*

80130-HL5-E61ZA

$30.83

COVER *NH1* This part replaces 80230-HL5-E60ZA.

80230-HL5-E61ZA

$27.31

COVER *NH1*

80230-HL5-E61ZA

$27.31

HINGE, RR. GATE

81503-HL5-E60

$25.35

WIRE, RR. GATE STOPPER

81504-HL5-E60

$2.37

BRACKET, RR. GATE HINGE

81505-HL1-A20

$6.20

BRACKET, RR. GATE LOCK

81508-HL1-A00

$2.92

ASSY., RR. *NH1*

81510-HL5-K00ZA

$196.06

GATE, RR. *NH1* (BLACK)

81530-HL5-E60ZA

$119.63

LOCK, R. RR. GATE

81531-HL3-A01

$20.72

LOCK, L. RR. GATE

81532-HL3-A01

$19.41

SET ILLUST (TYPE3)

81561-HL5-K00ZA

$109.34

SET ILLUST (TYPE2)

81561-HL5-K00ZB

$107.20

SET ILLUST (TYPE1)

81561-HL5-K00ZC

$117.26

SET ILLUST (TYPE3)

81562-HL5-K00ZA

$109.34

SET ILLUST (TYPE2)

81562-HL5-K00ZB

$112.05

SET ILLUST (TYPE1)

81562-HL5-K00ZC

$117.26

SPLASH GUARD, R. SIDE

83511-HL5-E60

$19.78

SPLASH GUARD, L. SIDE

83512-HL5-E60

$19.78

HOOK ASSY., TIE DOWN

84614-S06-000

$13.76

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.25

SCREW, PAN (6X14)

90106-KBV-000

$3.89

SCREW, PAN (6X16)

90109-HL5-E60

$0.25

BOLT, GRIP END

90109-HP1-000

$1.95

NUT, CAP (6MM)

90201-415-000

$2.08

NUT, AIR SPOILER CLIP

90305-SH3-000

$6.79

NUT, AIR SPOILER CLIP This part replaces 90323-SE0-000.

90305-SH3-000

$6.79

NUT, AIR SPOILER CLIP This part replaces 90323-SE1-000.

90305-SH3-000

$6.79

WASHER, PLAIN (8MM)

90501-399-880

$2.49

WASHER, RR. COWL SETTING

90511-MAT-000

$2.92

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.57

BOLT-WASHER (6X20)

93404-06020-07

$1.71

SCREW, TAPPING (5X16)

93903-25320

$0.94

WASHER, PLAIN (6MM)

94103-06700

$0.69

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.97

BOLT, FLANGE (6X20)

95701-06020-07

Unavailable
