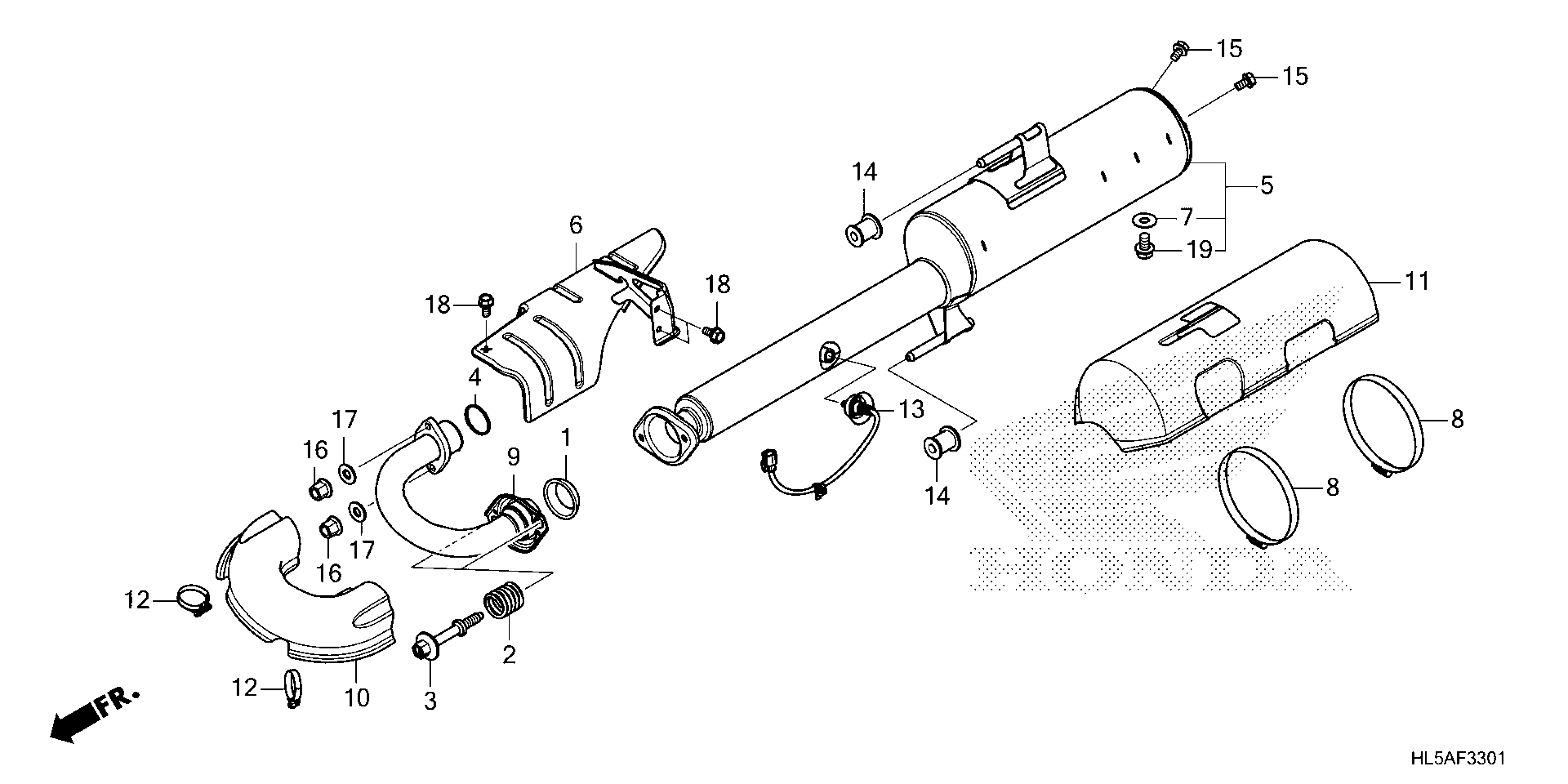

Honda SXS520MA (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE071-P4800001 TO 1HFVE071-P4899999 EXHAUST MUFFLER (2) Diagram

GASKET, EX. FLEXIBLE

18229-SNE-A01

$14.27

SPRING, FLEXIBLE JOINT

18230-SA0-930

$8.77

BOLT B, FLEXIBLE JOINT

18231-TR0-A00

$11.34

GASKET, EX. PIPE

18291-MV9-000

$4.72

MUFFLER COMP

18310-HL5-K40

$840.10

COVER, FR. MUFFLER

18311-HL5-E60

$31.30

WASHER, SEALING (8MM)

18312-HL5-E60

$24.07

BAND, MUFFLER COVER (89-140)

18315-HL5-E60

$35.59

PIPE, EX.

18320-HL5-E60

$240.38

COVER, EX. PIPE

18321-HL5-E60

$153.16

COVER, MUFFLER

18326-HL5-E60

$176.15

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$13.58

SENSOR, OXYGEN

36531-HL5-E61

$70.75

RUBBER, MUFFLER MOUNTING

50608-HR0-F00

$10.03

BOLT, FLANGE (6X10) (SUS) (Honda Code 8955874)

90200-HW5-900

$2.38

NUT, FLANGE (8MM)

90301-HM8-000

$2.70

WASHER, PLAIN (8MM)

94101-08800

$1.93

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (8X12)

95701-08012-00

$1.49
