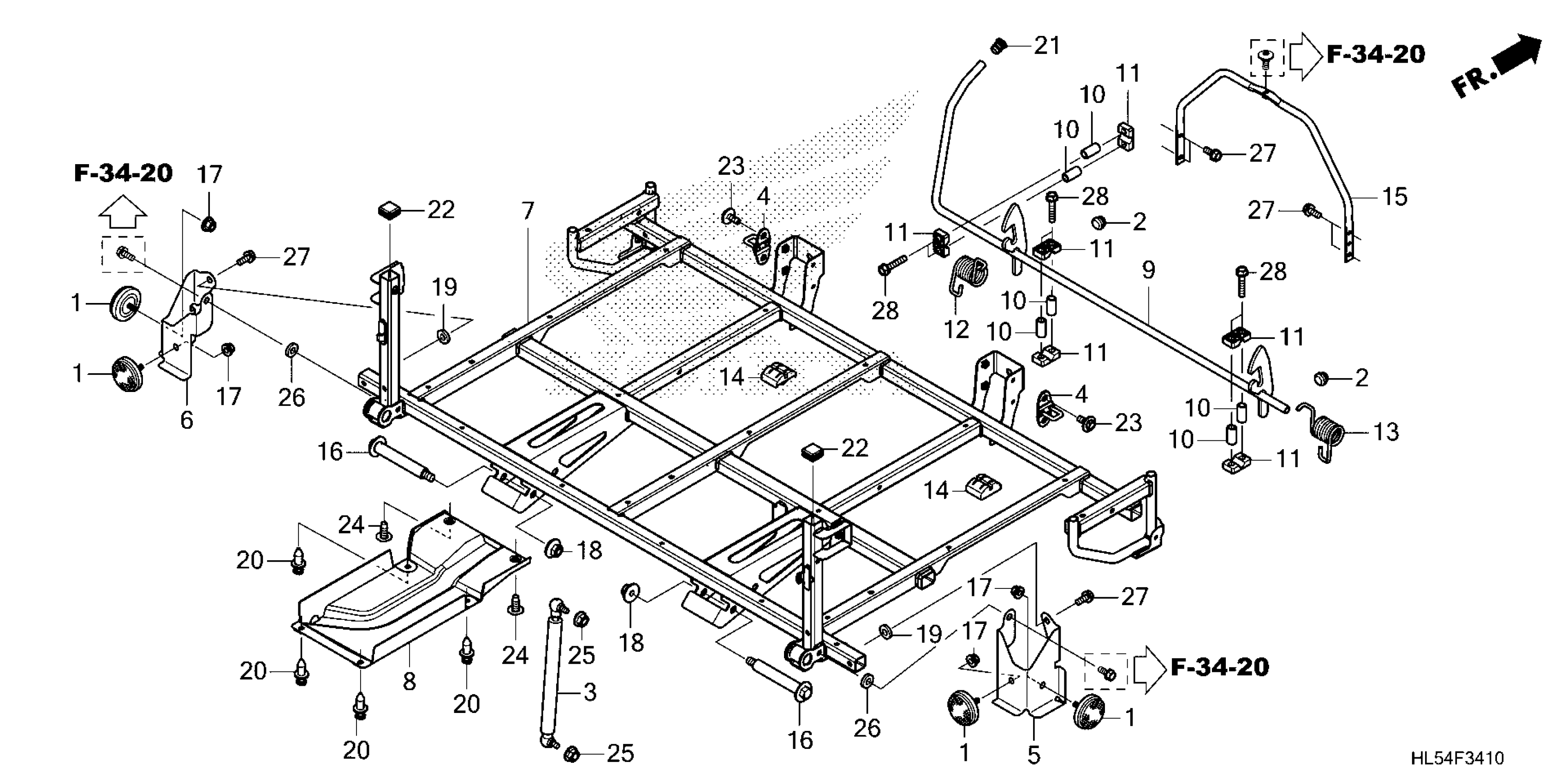

Honda SXS520MA (21) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE071-M4600001 BED Diagram

#

Description
Price

2

RUBBER, STOPPER

47117-196-000

$2.67

3

STAY, BED OPEN

74820-HL5-E61

$19.05

4

STRIKER ASSY., TRUNK

74862-S84-A01

$7.97

7

BED, RR.

81500-HL5-E60

$559.92

8

SHIELD, BED PLATE

81512-HL5-E60

$24.84

9

LEVER, BED LOCK

81521-HL5-E60

$54.92

10

COLLAR, LEVER BRACKET

81524-HL3-A00

$1.28

11

HOLDER, LEVER LOCK

81526-HL3-A00

$0.84

12

SPRING, R. LOCK LEVER

81527-HL3-A00

$1.64

13

SPRING, L. LOCK LEVER

81528-HL3-A00

$1.64

14

RUBBER, BED MOUNTING

81620-HL3-A00

$2.33

15

SUPPORT, FR. BED PLATE

81710-HL5-E60

$31.49

16

BOLT, FLANGE (8MM)

90112-HL3-A00

$4.51

18

NUT, FLANGE (8MM)

90361-SR3-000

$0.80

20

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

21

CAP, PIPE END (1/2")

90851-HL1-A00

$2.92

22

CAP, SQUARE PIPE END (1")

90861-HL4-A00

$0.64

23

BOLT-WASHER (6X16)

93404-06016-07

$1.55

24

SCREW, TAPPING (5X12)

93903-25210

$1.49

25

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

27

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

28

BOLT, FLANGE (6X30)

95701-06030-00

$1.89
