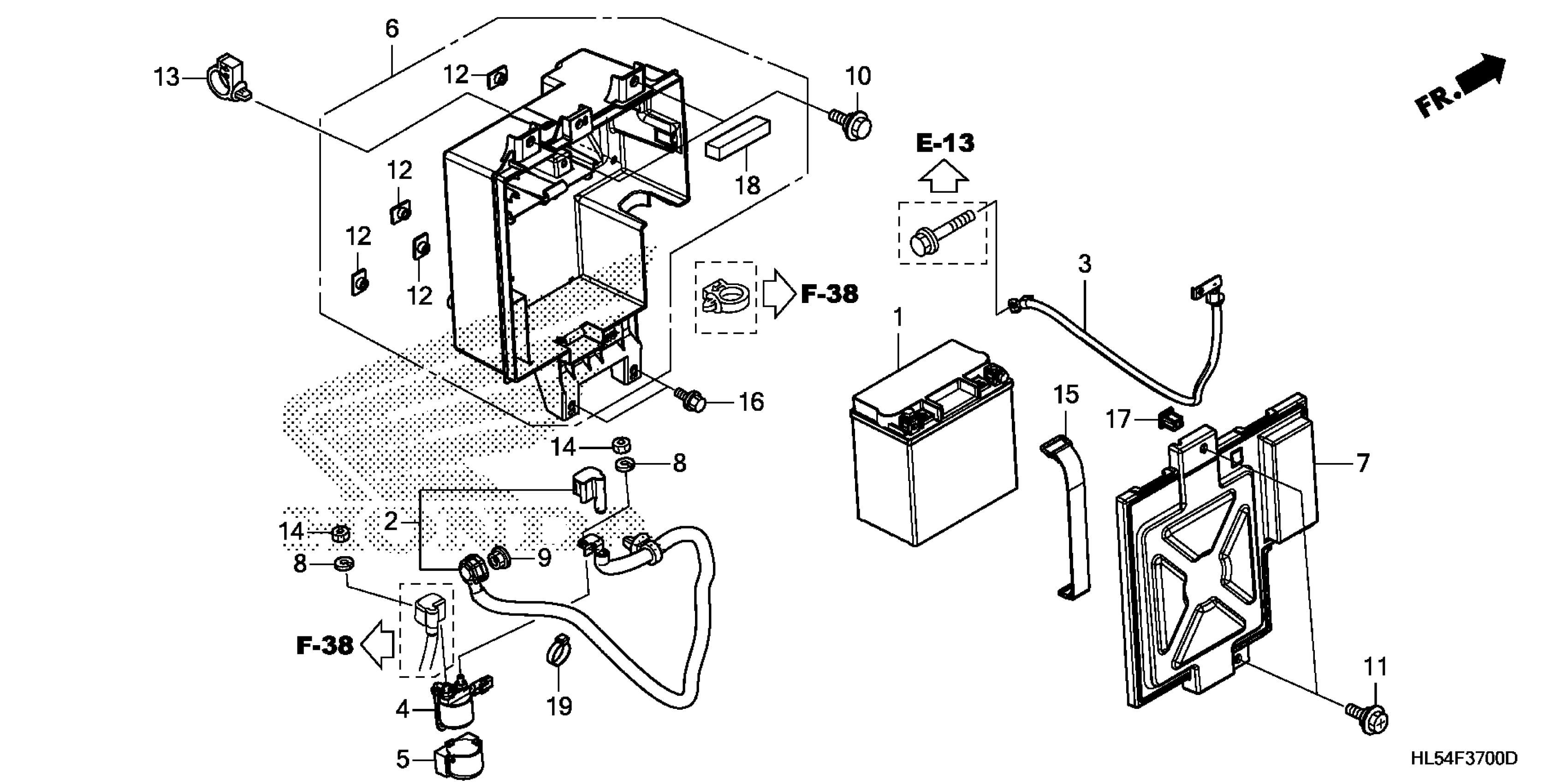

Honda SXS520MA (21) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE071-M4600001 BATTERY Diagram

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HC4-726.

31500-HC4-726AH

Unavailable

BATTERY YTX14-BS This part replaces 31500-HL5-F61.

31500-HL5-F62AH

$121.74

CABLE, STARTER MOTOR

32405-HL5-A40

$22.00

CABLE, BATTERY GROUND

32601-HL5-A00

$21.39

SWITCH ASSY., STARTER MAGNETIC

35850-HP6-A01

$83.81

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

BOX ASSY., BATTERY

50455-HL5-E60

$46.39

COVER, BATTERY

50453-HL5-A00

$11.01

WASHER, SPRING (6MM) (Honda Code 1310549)

90052-ZA0-800

$1.49

NUT-WASHER (6MM)

90071-MB0-000

$1.97

BOLT, FLANGE (6MM)

90111-162-000

$2.89

BOLT, FLANGE (6MM)

90111-KFE-700

$3.17

NUT, SPECIAL (6X7)

90303-HA0-680

$3.85

CLAMP, HARNESS

90652-HC4-003

$5.95

NUT, HEX. (6MM)

94002-06390-0S

$1.49

BAND F, BATTERY (155MM)

95012-17001

$7.23

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

FUSE, BLOCK (40A)

38211-SNA-A21

$4.45

SEAL B, FR. FENDER

61108-HR3-A20

$4.41

BAND, WIRE HARNESS (Honda Code 1746650)

90650-MA6-720

$4.15
