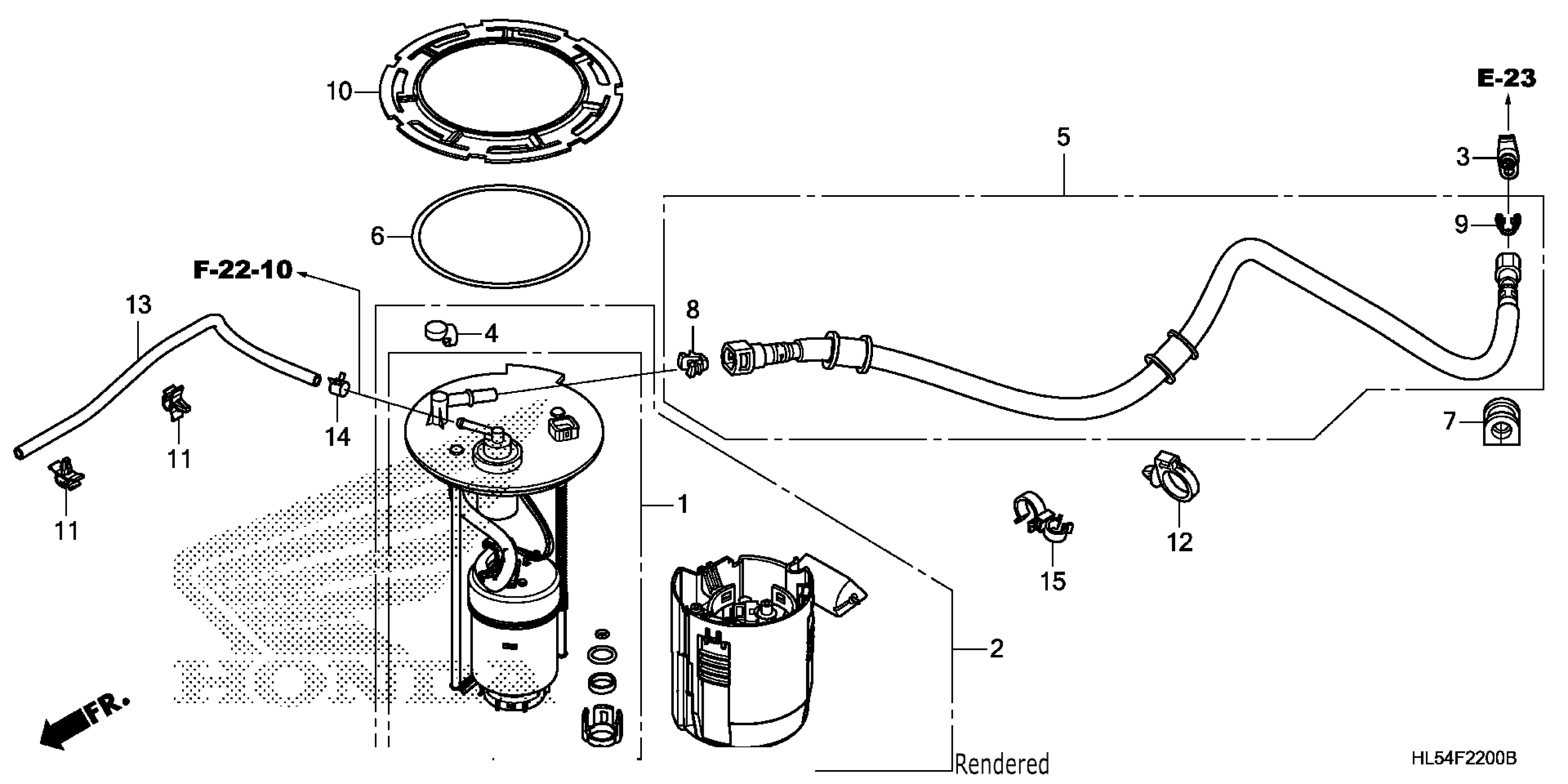

Honda SXS520M2AC (21) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE075-M4600001 FUEL PUMP Diagram

#

Description

Price

1

FILTER SET, FUEL

16010-HL3-A01

$61.87

1

FILTER SET, FUEL This part replaces 16010-HL5-A00.

16010-HL3-A01

$61.87

2

PUMP ASSY., FUEL (MSDS)

16700-HL5-A01

$175.96

3

DAMPER, CONNECTOR

16718-HR0-F00

$1.49

4

DAMPER, CONNECTOR (Honda Code 7003056)

16719-HW1-670

$23.76

5

HOSE, FUEL FEED (SUMITOMO)

17570-HL5-M21

$175.38

6

GASKET, FUEL PUMP

17574-HR3-A21

$4.56

7

RUBBER, FUEL FEED HOSE

17579-HP5-600

$1.93

8

RETAINER (ORANGE) (TOKAI) (Honda Code 5928296)

17711-S0X-003

$2.92

9

RETAINER (GREEN) (TOKAI)

17711-S0X-A31

$3.40

10

RING, FUEL PUMP LOCKING

17719-HR3-A21

$11.33

12

CLAMP, HARNESS

90652-HC4-003

$5.95

15

CLAMP, TUBE (D14.6-D9)

90655-HL5-M21

$3.36
