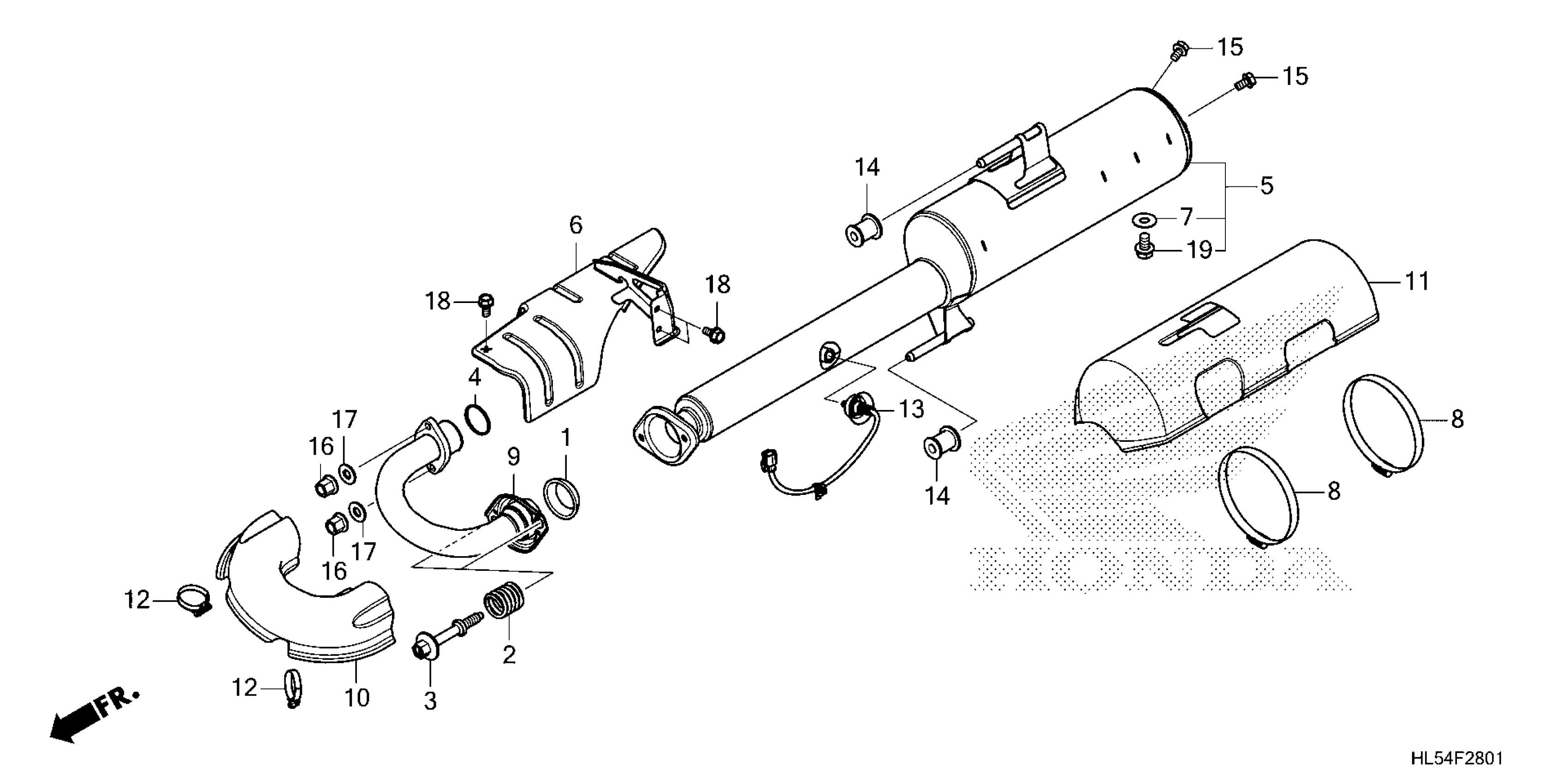

Honda SXS520M2AC (21) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE075-M4600001 EXHAUST MUFFLER (2) Diagram

GASKET, EX. FLEXIBLE

18229-SNE-A01

$14.04

SPRING, FLEXIBLE JOINT

18230-SA0-930

$7.87

BOLT B, FLEXIBLE JOINT

18231-TR0-A00

$12.49

GASKET, EX. PIPE

18291-MV9-000

$4.52

MUFFLER

18310-HL5-E60

$1,223.38

COVER, FR. MUFFLER

18311-HL5-E60

$28.07

WASHER, SEALING (8MM)

18312-HL5-E60

$21.59

BAND, MUFFLER COVER (89-140)

18315-HL5-E60

$31.93

PIPE, EX.

18320-HL5-E60

$215.63

COVER, EX. PIPE

18321-HL5-E60

$137.40

COVER, MUFFLER

18326-HL5-E60

$158.01

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$12.46

SENSOR, OXYGEN

36531-HL5-E61

$63.47

RUBBER, MUFFLER MOUNTING

50608-HR0-F00

$10.51

BOLT, FLANGE (6X10) (SUS) (Honda Code 8955874)

90200-HW5-900

$2.19

NUT, FLANGE (8MM)

90301-HM8-000

$2.50

WASHER, PLAIN (8MM)

94101-08800

$1.74

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84

BOLT, FLANGE (8X12)

95701-08012-00

$1.04
