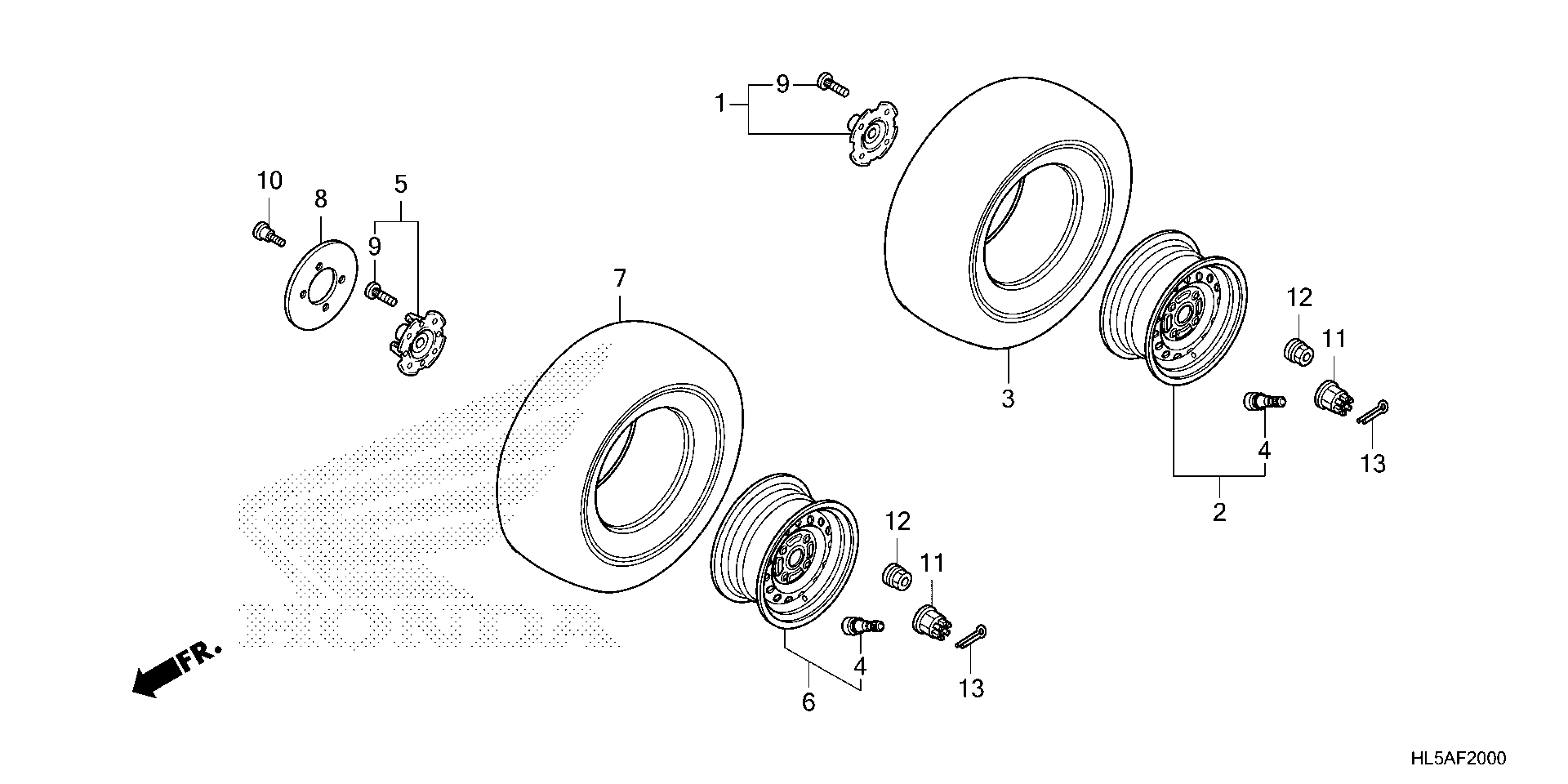

Honda SXS500MAC (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE030-P4800001 TO 1HFVE030-P4899999 WHEEL Diagram

#

Description

Price

1

HUB, RR. WHEEL

42610-HL3-A40

$87.41

2

WHEEL SUB-ASSY. (RR.)

42650-HL3-A00

$58.34

3

TIRE (24X10.00-12NHS) (CHENG SHIN) (RR.)

42711-HL5-A01

$129.67

4

VALVE, RIM (TR412)

42753-HL3-A00

$2.20

5

HUB SUB-ASSY., FR.

44615-HL3-A00

$73.63

6

WHEEL SUB-ASSY. (FR.)

44650-HL3-A00

$64.30

7

TIRE (24X8.00-12NHS) (CHENG SHIN) (FR.)

44711-HL5-A01

$107.55

8

DISK, FR. BRAKE

45251-HL3-A00

$61.74

9

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-006.

90113-SM1-005

$2.78

9

BOLT, WHEEL (ROCKNEL FASTENER)

90113-SM1-005

$2.78

10

BOLT, DISK (8X24)

90116-HP6-A00

$2.92

11

NUT, AXLE (20MM)

90304-HM7-A10

$12.05

12

NUT, WHEEL (FUSE RASHI)

90304-SC2-000

$9.41

13

PIN, COTTER (4.0X30)

94201-40300

$1.49
