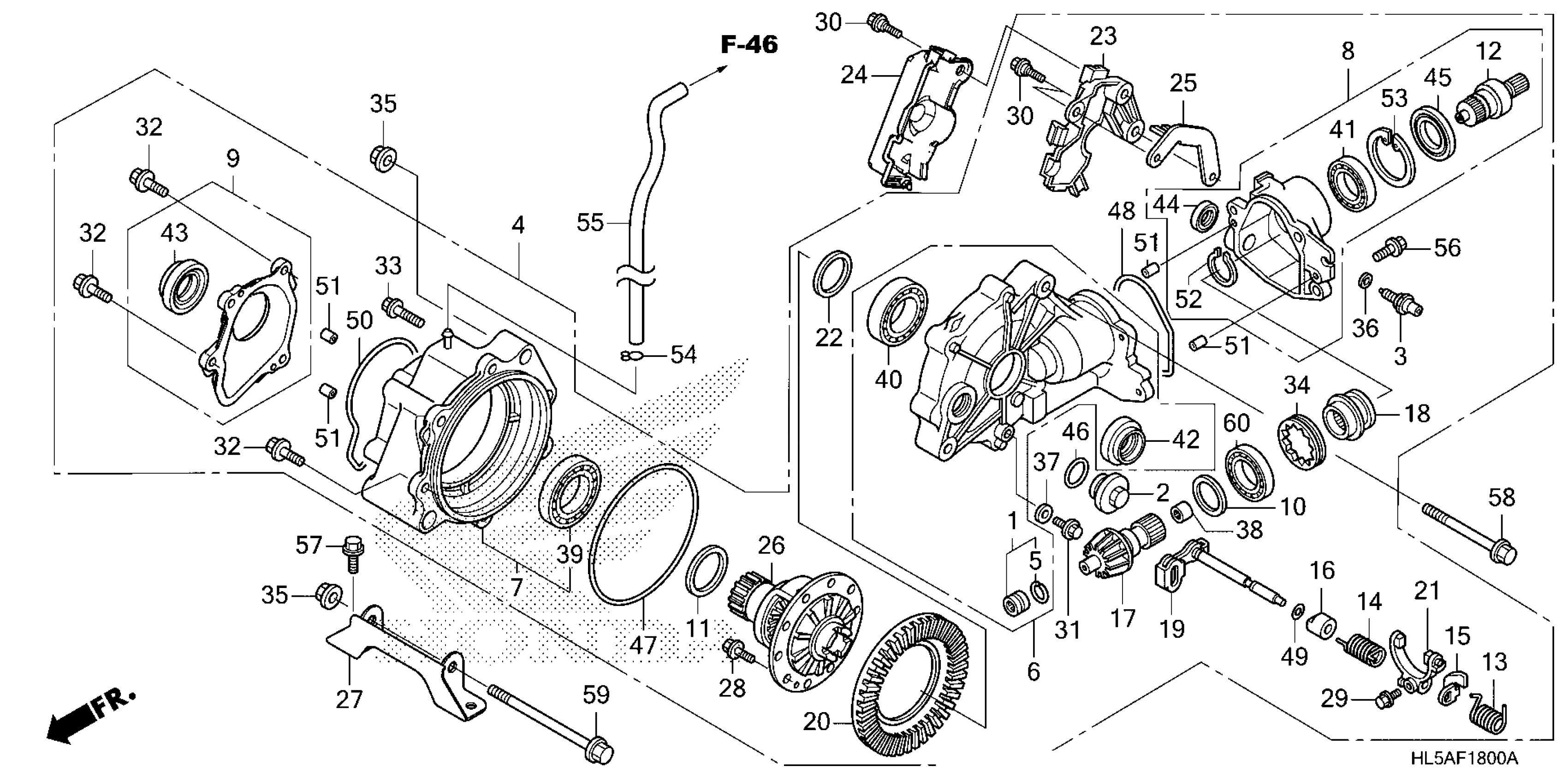

Honda SXS500MAC (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE030-N4700001 TO 1HFVE030-N4799999 FRONT FINAL GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-HL5-E60

$14.20

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

3

SWITCH ASSY., NEUTRAL

35600-HN7-003

$19.61

4

GEAR ASSY., FR. FINAL

41400-HL5-E60

$1,278.93

5

RING, STOPPER

41405-HA7-670

$2.97

6

CASE SUB-ASSY., FR. FINAL GEAR

41411-HL5-E60

$112.03

7

COVER SUB-ASSY., FR. FINAL GEAR

41412-HL3-600

$160.26

8

CASE SUB-ASSY., FR. CLUTCH

41413-HL5-A40

$102.80

9

COVER SUB-ASSY., R. FR. FINAL GEAR

41414-HL5-A00

$66.70

10

SHIM A, PINION GEAR (1.64)

41447-HM8-000

$7.99

10

SHIM B, PINION GEAR (1.70)

41448-HM8-000

$7.99

10

SHIM C, PINION GEAR (1.76)

41449-HM8-000

$7.99

10

SHIM D, PINION GEAR (1.82)

41451-HM8-000

$8.79

10

SHIM E, PINION GEAR (1.88)

41452-HM8-000

$7.99

10

SHIM F, PINION GEAR (1.94)

41453-HM8-000

$8.79

10

SHIM G, PINION GEAR (2.00)

41454-HM8-000

$8.79

10

SHIM H, PINION GEAR (2.06)

41455-HM8-000

$7.99

10

SHIM I, PINION GEAR (2.12)

41456-HM8-000

$8.79

10

SHIM J, PINION GEAR (2.18)

41457-HM8-000

$8.79

10

SHIM K, PINION GEAR (2.24)

41458-HN0-670

Unavailable

10

SHIM L, PINION GEAR (2.30)

41459-HN0-670

Unavailable

10

SHIM M, PINION GEAR (2.36)

41461-HN0-670

Unavailable

10

SHIM N, PINION GEAR (2.42)

41462-HN0-670

$4.13

10

SHIM O, PINION GEAR (2.48)

41463-HN0-670

Unavailable

11

SHIM A, RING GEAR (0.64)

41450-HL1-A00

$11.10

11

SHIM B, RING GEAR (0.70)

41451-HL1-A00

$11.10

11

SHIM C, RING GEAR (0.76)

41452-HL1-A00

$11.10

11

SHIM D, RING GEAR (0.82)

41453-HL1-A00

$11.10

11

SHIM E, RING GEAR (0.88)

41454-HL1-A00

$11.59

11

SHIM F, RING GEAR (0.94)

41455-HL1-A00

$11.59

11

SHIM G, RING GEAR (1.00)

41456-HL1-A00

$11.59

11

SHIM H, RING GEAR (1.06)

41457-HL1-A00

$11.59

11

SHIM I, RING GEAR (1.12)

41458-HL1-A00

$11.10

11

SHIM J, RING GEAR (1.18)

41459-HL1-A00

$11.10

11

SHIM K, RING GEAR (1.24)

41460-HL1-A00

$11.10

11

SHIM L, RING GEAR (1.30)

41461-HL1-A00

$11.10

11

SHIM M, RING GEAR (1.36)

41462-HL1-A00

$11.10

11

SHIM N, RING GEAR (1.42)

41463-HL1-A00

$11.10

11

SHIM O, RING GEAR (1.48)

41464-HL1-A00

$11.10

12

JOINT, FR. FINAL CLUTCH

41502-HL5-A40

$13.28

13

SPRING, FR. FINAL CLUTCH

41503-HP5-600

$3.03

14

SPRING, FR. FINAL CLUTCH LOCK

41504-HP5-600

$5.98

15

STOPPER, FR. FINAL CLUTCH

41505-HP5-600

$1.49

16

COLLAR, FR. FINAL CLUTCH

41506-HL1-A00

$24.36

17

GEAR, FR. PINION (13T)

41521-HL5-A00

$242.07

18

SLEEVE, FR. FINAL CLUTCH

41527-HP5-600

$40.75

19

SHAFT, FR. FINAL CLUTCH

41530-HL1-A00

$49.84

20

GEAR, FR. RING (53T)

41531-HL5-A00

$120.16

21

FORK, FR. FINAL CLUTCH

41550-HP5-600

$77.33

22

SHIM A, RING GEAR (0.64)

41580-HL1-A00

$10.23

22

SHIM B, RING GEAR (0.70)

41581-HL1-A00

$10.23

22

SHIM C, RING GEAR (0.76)

41582-HL1-A00

$10.72

22

SHIM D, RING GEAR (0.82)

41583-HL1-A00

$10.23

22

SHIM E, RING GEAR (0.88)

41584-HL1-A00

$10.23

22

SHIM F, RING GEAR (0.94)

41585-HL1-A00

$10.23

22

SHIM G, RING GEAR (1.00)

41586-HL1-A00

$10.23

22

SHIM H, RING GEAR (1.06)

41587-HL1-A00

$10.23

22

SHIM I, RING GEAR (1.12)

41588-HL1-A00

$10.72

22

SHIM J, RING GEAR (1.18)

41589-HL1-A00

$10.72

22

SHIM K, RING GEAR (1.24)

41590-HL1-A00

$10.72

22

SHIM L, RING GEAR (1.30)

41591-HL1-A00

$10.72

22

SHIM M, RING GEAR (1.36)

41592-HL1-A00

$10.72

22

SHIM N, RING GEAR (1.42)

41593-HL1-A00

$10.72

22

SHIM O, RING GEAR (1.48)

41594-HL1-A00

$10.23

22

SHIM P, RING GEAR (1.54)

41595-HL1-A00

$11.10

22

SHIM Q, RING GEAR (1.60)

41596-HL1-A00

$11.10

23

CASE, CLUTCH ARM

41711-HL1-A00

$8.74

24

COVER, CLUTCH ARM

41712-HL1-A00

$7.59

25

STAY, CLUTCH CABLE

41715-HL1-A00

$5.30

26

CASE, FR. DIFFERENTIAL

42420-HL1-A00

$289.59

27

BRACKET, FR. FINAL CASE

50350-HL5-A00

$13.69

28

BOLT, UBS (8X17)

90101-HN2-680

$4.30

29

BOLT, SPECIAL (6MM)

90101-HP5-600

$4.16

30

BOLT, FR. FENDER FIXING

90106-MM9-000

$2.97

31

BOLT, SEALING (8MM)

90109-371-000

$2.58

32

BOLT, FLANGE (8X27)

90133-HP5-600

$2.67

33

BOLT, FLANGE (10X35)

90134-HP5-600

$3.51

34

NUT, LOCK (64MM)

90242-MB0-000

$32.52

35

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

36

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.49

37

WASHER (8MM)

90471-580-000

$2.92

38

BEARING, NEEDLE (12X18X12)

91056-HP5-601

$6.05

39

BEARING, RADIAL BALL (6009)

91057-HL3-601

$10.72

40

BEARING, RADIAL BALL (6008)

91057-HL4-A01

$8.61

41

BEARING, RADIAL BALL (60/32)

91059-HL4-A01

$8.14

42

OIL SEAL (35X56X8)

91252-HL1-A01

$10.15

43

OIL SEAL (40X61X8)

91252-HL5-A01

$12.19

44

OIL SEAL (22X30X5)

91253-HL1-A01

$5.80

45

OIL SEAL (42X58X12)

91254-HR3-A21

$7.65

46

O-RING (30.8MM) (Honda Code 0001065)

91302-001-020

$3.75

47

O-RING (156.5X1.9)

91351-HL1-A01

$6.54

48

GASKET, FR. FINAL CLUTCH COVER

91351-HP5-601

$3.62

49

O-RING (8.5X1.5) (L. SIDE ONLY)

91352-GAZ-930

$2.33

50

GASKET, R. SIDE COVER

91355-HL1-A01

$5.73

51

PIN A, DOWEL (6X10) (YAMADA)

94301-06100

$2.25

52

CIRCLIP (OUTER) (32MM)

94510-32000

$1.77

53

CIRCLIP (INNER) (58MM)

94520-58000

$3.13

54

CLIP, TUBE (C6.5)

95002-35000

$1.49

55

BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M)

95005-35001-30M

$8.63

56

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

57

BOLT, FLANGE (10X20) BOLT, FLANGE (10X16)

95701-10020-00

$2.23

58

BOLT, FLANGE (12X110)

95801-12110-08

$3.13

59

BOLT, FLANGE (12X150)

95801-12150-00

$4.03

60

BEARING, RADIAL BALL (6206)

96100-62060-00

$23.53
