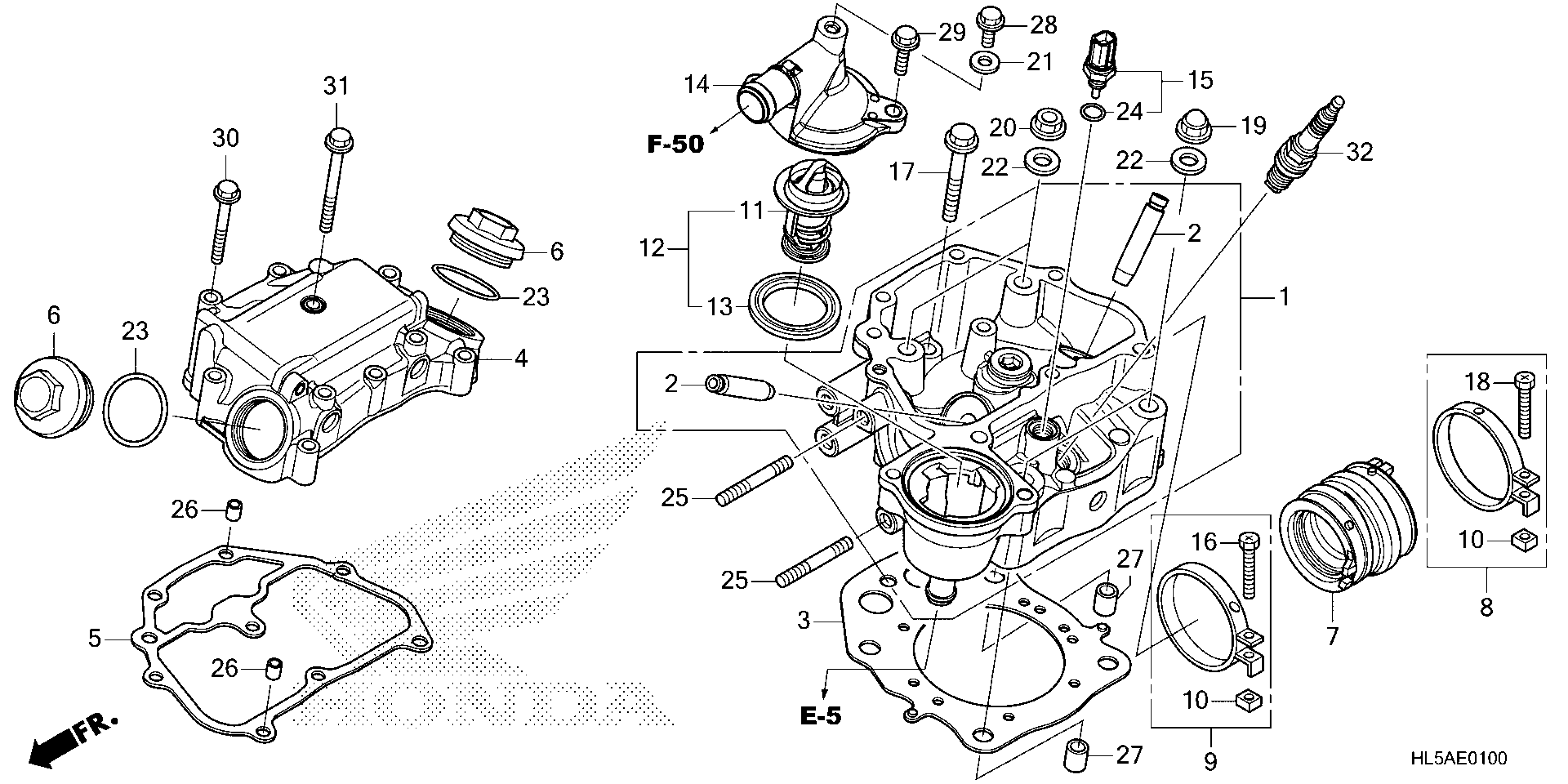

Honda SXS500MAC (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE030-N4700001 TO 1HFVE030-N4799999 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-HP7-A01

$582.74

2

GUIDE, VALVE (OVER SIZE)

12204-HP7-305

$31.83

3

GASKET, CYLINDER HEAD

12251-HR0-F01

$21.47

4

COVER, CYLINDER HEAD

12310-HP5-L10

$301.74

5

GASKET, HEAD COVER

12315-HR0-F01

$17.52

6

CAP, TAPPET ADJUSTING HOLE

12361-HP5-600

$16.62

7

INSULATOR, THROTTLE BODY

16211-HR4-A40

$12.69

8

BAND, INSULATOR

16217-MBW-J20

$3.80

9

BAND, INSULATOR

16217-MEG-000

$3.80

10

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$1.96

11

THERMOSTAT ASSY.

19300-HN8-013

$48.41

12

THERMOSTAT SET

19300-HN8-305

$58.86

13

RUBBER, THERMOSTAT

19305-KV3-010

$5.64

14

COVER, THERMOSTAT

19321-HL5-A40

$111.41

15

SENSOR ASSY., WATER TEMPERATURE

37870-KZR-601

$7.96

16

BOLT, RECESSED (5X32)

90005-MM4-000

$0.97

17

BOLT, FLANGE (8X55)

90009-PNA-000

$4.06

18

BOLT, RECESSED (5X28) (GQ51B C)

90023-MM5-000

$2.80

19

NUT, FLANGE CAP (10MM)

90201-HA0-000

$5.99

20

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.41

20

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.41

20

NUT, FLANGE (10MM)

94050-10000

$1.41

21

WASHER, SEALING (6MM)

90441-706-000

$1.06

22

WASHER (10MM)

90465-MM9-000

$3.30

23

O-RING (35.5X3) (NOK)

91301-428-003

$2.01

24

O-RING (9.5X1.9) (PANASONIC)

91307-PLC-004

$2.89

25

BOLT, STUD (8X25)

92900-08025-0B

$2.00

26

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

27

PIN A, DOWEL (12X16)

94301-12160

Unavailable

28

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

29

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.61

30

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$1.97

31

BOLT, FLANGE (6X65) (Honda Code 2552545)

95701-06065-00

$1.38

32

SPARK PLUG (BKR5E-11) (NGK)

98079-5514E

$2.77
