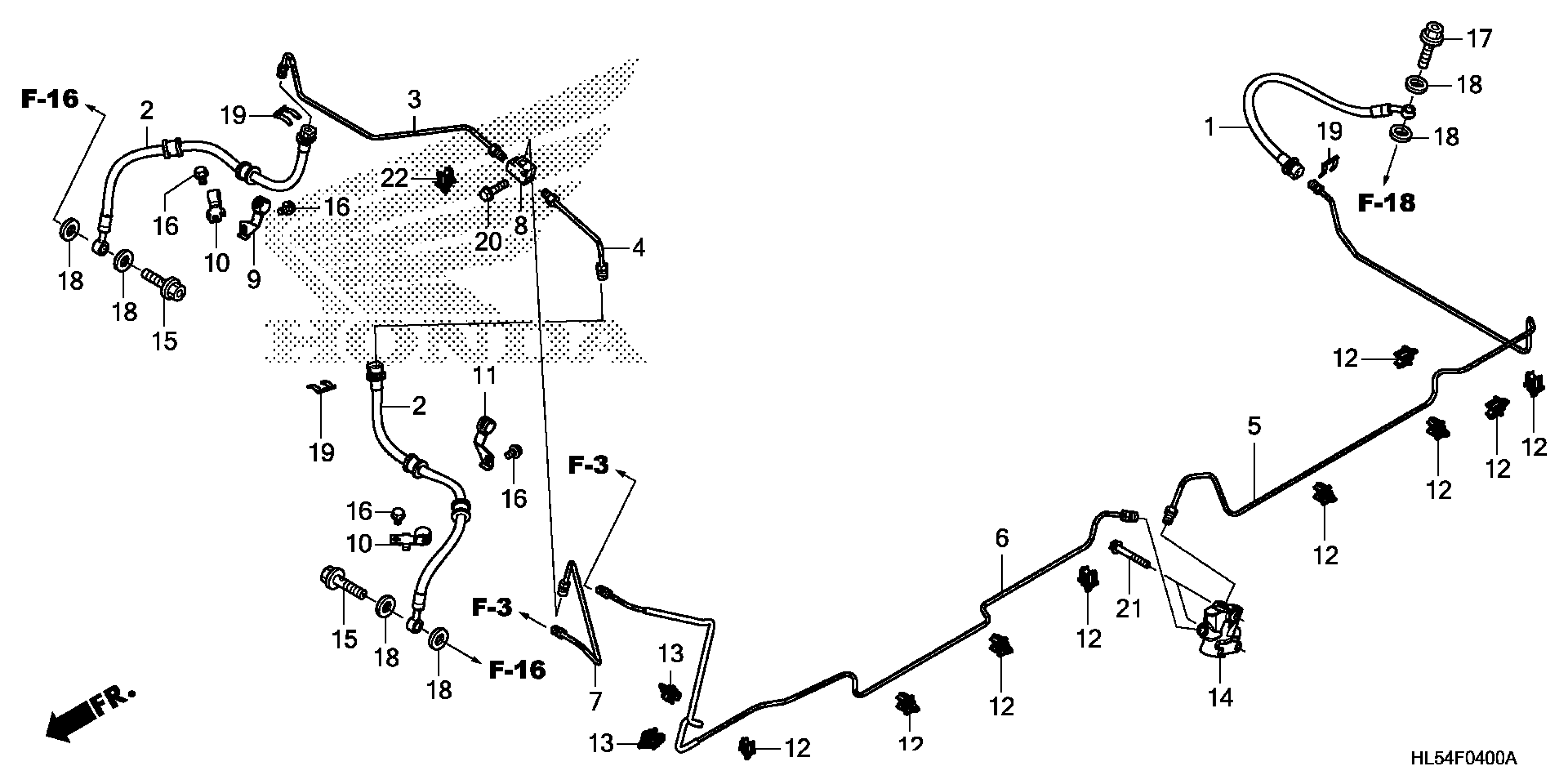

Honda SXS500M2A (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE037-K4400001 TO 1HFVE037-K4499999 BRAKE PIPE Diagram

HOSE, RR. BRAKE

43310-HL3-A01

$8.38

HOSE, FR. BRAKE

45125-HL5-A01

$10.92

PIPE, R. FR. BRAKE

45126-HL5-A00

$4.87

PIPE, L. FR. BRAKE

45127-HL5-A00

$4.03

PIPE, RR. BRAKE

45128-HL5-A00

$7.30

PIPE, RR. BRAKE MIDDLE

45129-HL5-A00

$10.88

PIPE, MASTER CYLINDER

45134-HL5-A00

$6.00

PIPE, THREE WAY JOINT

45151-MCA-003

$9.75

CLAMP A, R. FR. BRAKE HOSE

45461-HR3-A20

$55.52

CLAMP B, FR. BRAKE HOSE

45462-HR0-F00

$19.27

CLAMP A, L. FR. BRAKE HOSE

45471-HR3-A20

$1.77

CLIP A

46394-S04-003

$1.17

CLIP, BRAKE PIPE

46394-SN7-003

$10.06

VALVE ASSY., PROPORTIONING CONTROL

46400-MFG-D21

$95.54

BOLT, OIL

46462-SE0-000

$6.96

BOLT, FLANGE (6X10)

90107-HC5-000

$2.12

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

CLIP, BRAKE HOSE

90651-538-000

$6.30

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

BOLT, FLANGE (6X45)

95801-06045-00

$1.97

CLIP, ELECTRONIC CONTROL MOUNT SOLENOID PIPE

50944-T2F-A01

$6.93
