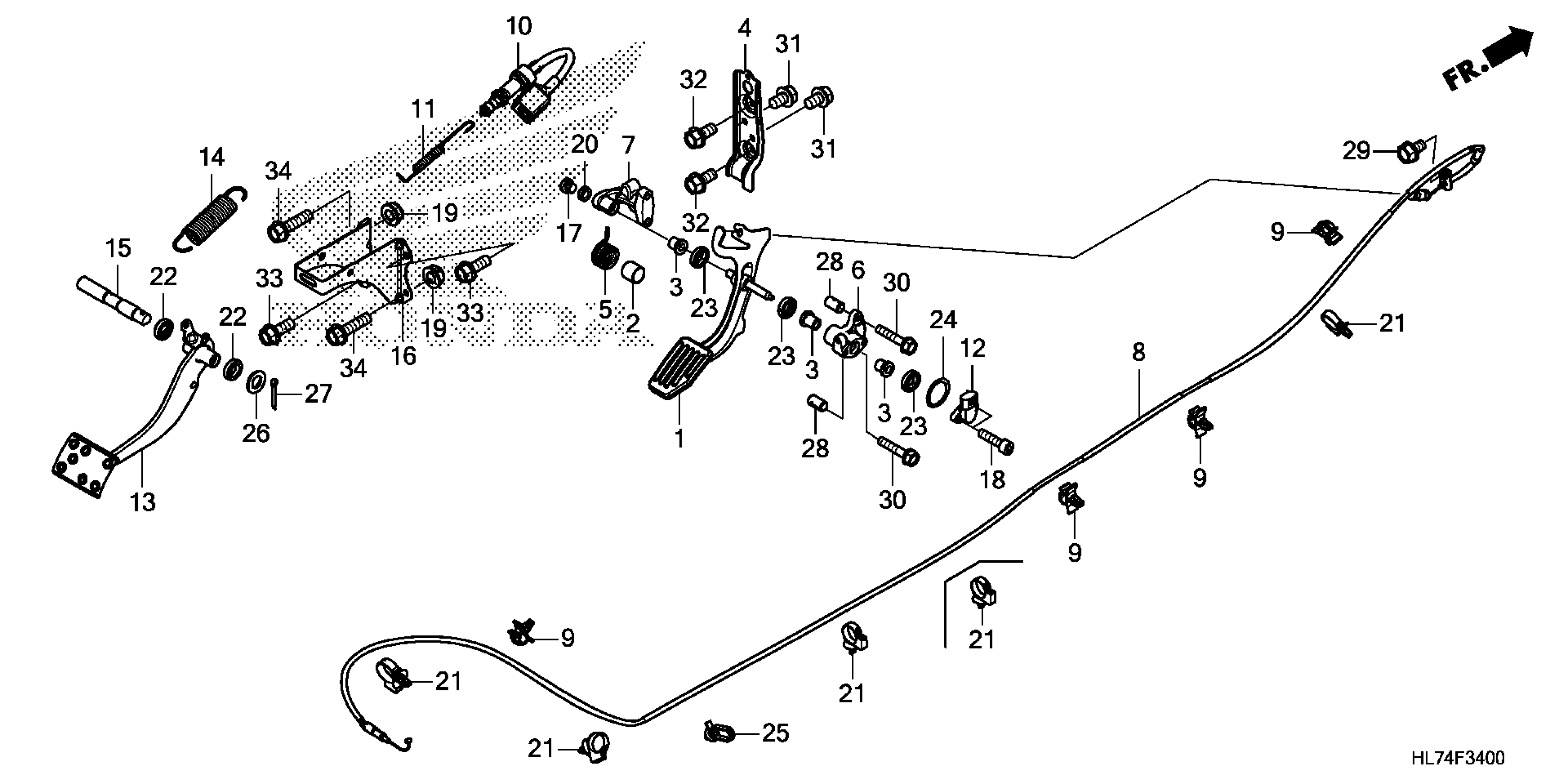

Honda SXS1000S4XA (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE06A-R4400001 TO 1HFVE06A-R4499999 PEDAL Diagram

PEDAL, ACCELERATOR

17810-HL7-A20

$27.25

COLLAR, ACCELERATOR PEDAL

17811-HL1-A00

$3.31

BUSH, FLANGE (10MM)

17813-HL6-A00

$3.15

STAY, ACCELERATOR PEDAL

17820-HL6-A00

$9.21

SPRING, ACCELERATOR PEDAL

17830-HL4-A00

$1.46

BRACKET, R. PEDAL PIVOT

17850-HL6-A00

$64.51

BRACKET, L. PEDAL PIVOT

17860-HL6-A00

$62.25

CABLE, THROTTLE

17910-HL7-A21

$39.20

CLIP, WIRE HARNESS

32171-GJ1-003

$3.47

SWITCH ASSY., STOP

35350-HL6-A01

$17.80

SPRING, STOP SWITCH

35357-HL6-A00

$1.52

SENSOR ASSY., ANGLE

38800-HR3-A21

$27.06

PEDAL, BRAKE

46510-HL6-A00

$42.56

SPRING, BRAKE PEDAL

46514-HL6-A00

$3.64

SHAFT, BRAKE PIVOT

46550-HL3-A00

$17.11

STAY, BRAKE PEDAL

46560-HL6-A00

$16.30

BOLT, SEALING (12MM)

90007-ZG8-300

$7.02

BOLT, SOCKET (5X20)

90116-HP5-600

$3.10

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

WASHER (12MM)

90545-KF0-000

$3.26

CLAMP, HARNESS

90652-HC4-003

$5.95

OIL SEAL (10X16X4.5) This part replaces 91206-333-003.

91259-VM0-000

$4.22

OIL SEAL (10X16X4.5)

91259-VM0-000

$4.22

OIL SEAL (10X16X5)

91206-ZG5-003

$3.13

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.72

CLIP, HARNESS BAND (164.5MM) (BROWN)

91507-SNA-003

$0.59

WASHER, PLAIN (10MM)

94102-10800

$3.39

PIN, SPLIT (3.0X18)

94201-30180

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

BOLT, FLANGE (8X30)

95701-08030-08

$1.49
