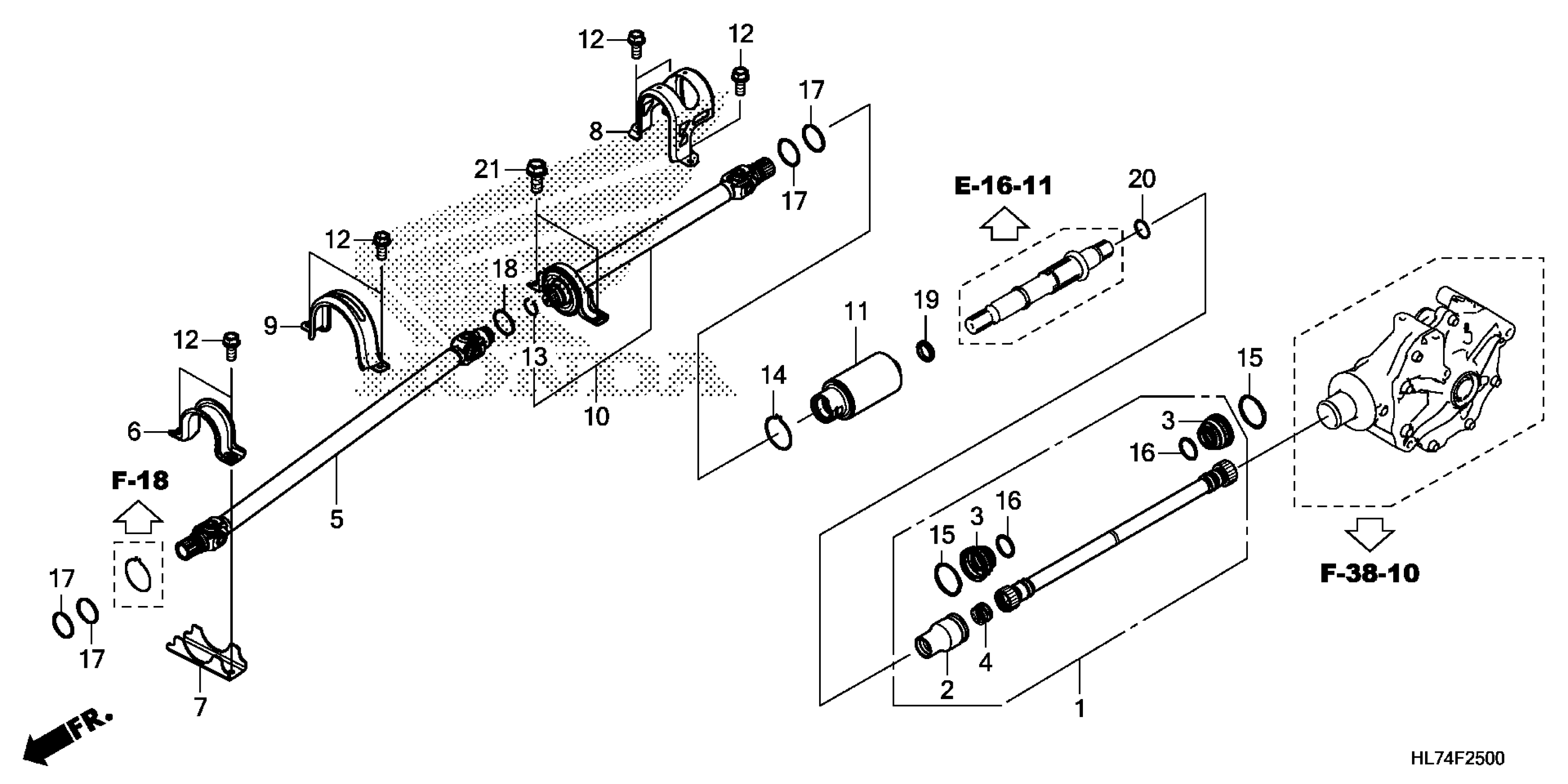

Honda SXS1000S4XA (21) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE06A-M4100001 TO 1HFVE06A-M4199999 PROPELLER SHAFT Diagram

SHAFT ASSY., RR. PROPELLER

40200-HL6-A01

$111.31

JOINT, RR. PROPELLER SHAFT

40202-HL4-A00

$29.28

BOOT, RR. PROPELLER

40203-HL4-A00

$4.47

SPRING, PROPELLER SHAFT

40215-HL4-A00

$2.25

SHAFT, FR. PROPELLER

40400-HL7-A21

$194.33

GUARD A, PROPELLER SHAFT

40421-HL6-A00

$6.35

GUARD B, PROPELLER SHAFT

40422-HL6-A00

$3.59

GUARD C, PROPELLER SHAFT

40423-HL7-A20

$17.88

GUARD D, PROPELLER SHAFT

40424-HL7-A20

$13.77

SHAFT ASSY., CENTER PROPELLER

40600-HL7-A20

$308.30

DAMPER ASSY., PROPELLER SHAFT CAM

40720-HL7-A21

$799.16

BOLT, FLANGE (8X18)

90175-SCV-A00

$0.96

SET-RING (26X1.8)

90654-HL7-A20

$5.28

CIRCLIP, SPECIAL (41.7)

90660-HL6-A00

$3.01

BAND, BOOT (D32)

91301-HM7-A00

$5.65

BAND, BOOT (D20)

91303-HM7-A00

$7.38

O-RING (37X2.4) (ARAI) GASKET KIT A

91305-KT7-003

$2.64

O-RING (35.0X2.0)

91351-HL7-A20

Unavailable

O-RING, SPECIAL (24.5)

91352-HL6-A01

$3.96

O-RING (25.5X1.9)

91361-HL4-A01

$2.46

BOLT, FLANGE (10X20)

95701-10020-08

$1.99
