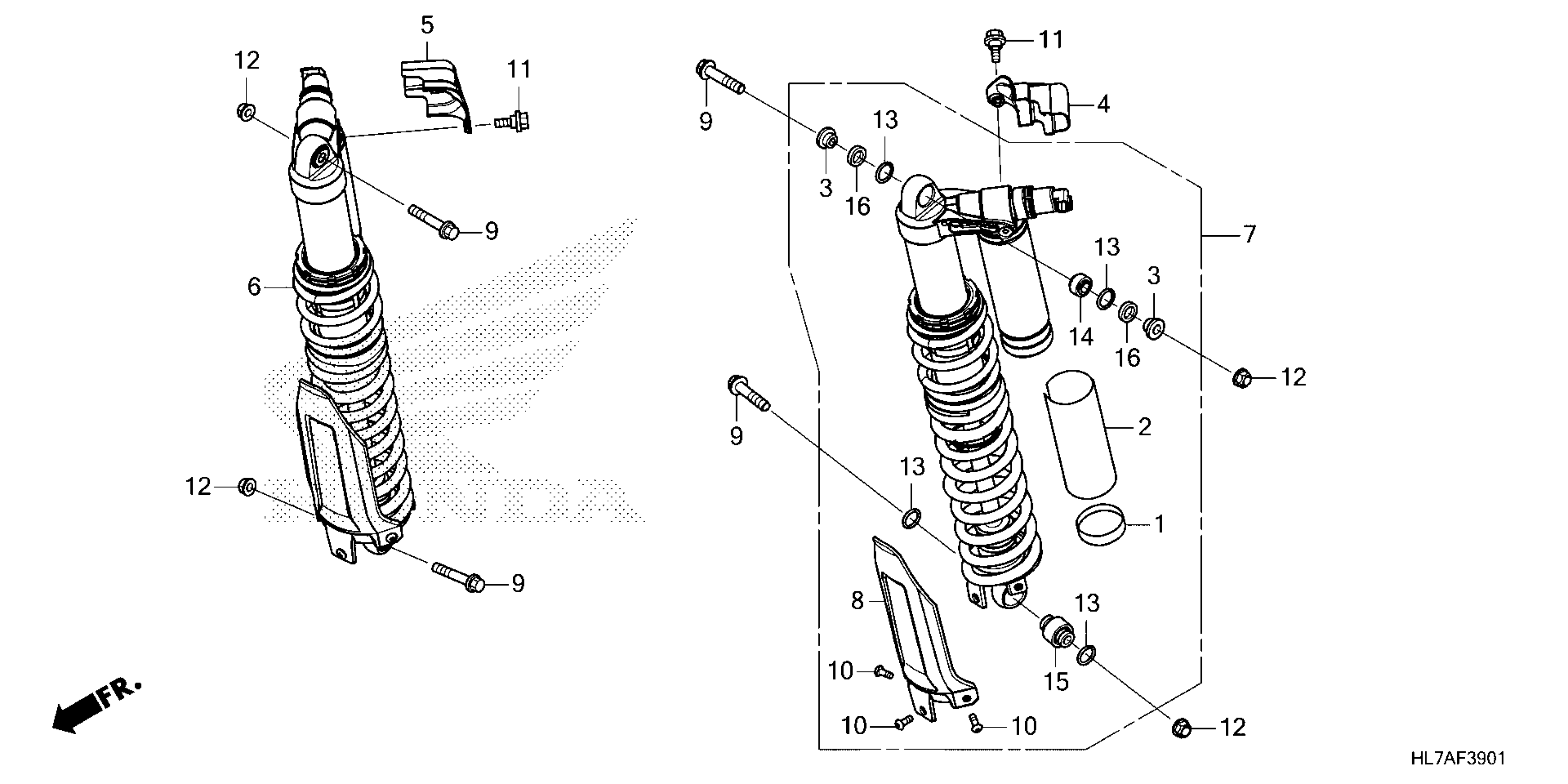

Honda SXS1000S4X5AC (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE06F-S4500001 TO 1HFVE06F-S4599999 REAR SHOCK ABSORBER (2) Diagram

DECAL, BAND

51427-HL6-A61

$43.45

DECAL, RESERVOIR

51428-HL6-A51

$11.69

REDUCER, EYELET

51431-HL6-A11

$6.30

PROTECTOR, R. CUSHION SOLENOID

51610-HL7-A30

$3.69

PROTECTOR, L. CUSHION SOLENOID

51620-HL7-A30

$3.69

CUSH, RR. R (TYPE4)

52400-HL7-A52ZC

$1,585.83

CUSH, RR. L (TYPE4)

52500-HL7-A52ZC

$1,679.75

PROTECTOR, CUSHION

52610-HL6-A11

$16.43

BOLT, FLANGE (12X57)

90101-HL6-A00

$1.05

SCREW, SPECIAL PAN (6X12)

90102-HL6-A01

$4.55

BOLT, FLANGE (6MM)

90113-GF0-000

$4.04

NUT, SELF-LOCK (12MM) (CLINCH) (SATO RASHI)

90215-SB0-003

$2.37

RING, RETAINING (1.290X0.050)

90651-HL6-A11

$5.63

BEARING, SPHERICAL (UPPER)

91075-HL6-A11

$42.77

BEARING, SPHERICAL (LOWER)

91077-HL6-A01

$25.43

O-RING (0.787X0.210)

91351-HL6-A11

$1.92
