Description

Price

1

SEAL, RING (21.2MM)

22814-RGC-003

$10.40

2

RING, SEAL (28MM)

22815-MGE-D01

$3.77

3

MAINSHAFT (INNER)

23210-HL4-000

$302.44

4

PLATE, BEARING SETTING

23213-HL4-000

$5.62

5

COUNTERSHAFT

23220-HL4-000

$160.64

6

MAINSHAFT (OUTER) (21T)

23231-HL4-000

$244.61

7

GEAR, COUNTERSHAFT FIRST (47T)

23421-HL4-000

$116.05

8

COLLAR (30X35X13)

23422-HL4-000

$17.74

9

GEAR, COUNTERSHAFT SECOND (43T)

23441-HL4-000

$130.15

10

GEAR, MAINSHAFT THIRD (24T)

23451-HL4-000

$117.56

11

GEAR, COUNTERSHAFT THIRD (38T)

23461-HL4-000

$124.34

12

COLLAR, SPLINE (30X11)

23462-MAT-000

$23.00

13

GEAR, MAINSHAFT FOURTH (26T)

23471-HL4-000

$123.38

14

GEAR, COUNTERSHAFT FOURTH (32T)

23481-HL4-000

$102.34

15

GEAR, MAINSHAFT FIFTH (32T)

23491-HL6-A00

$123.62

16

COLLAR (32X35X13.5)

23492-HL4-000

$16.52

17

COLLAR (22X25X13)

23495-HL4-000

$13.43

18

GEAR, COUNTERSHAFT FIFTH (31T)

23501-HL6-A00

$138.07

19

GEAR, MAINSHAFT SIXTH (35T)

23511-HL6-A00

$128.46

20

COLLAR (40X43X12.5)

23512-MGE-D00

$14.79

21

GEAR, COUNTERSHAFT SIXTH (28T)

23521-HL6-A00

$114.11

22

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

23

WASHER (40.2X51X1)

90411-MGE-D00

$11.79

24

WASHER (32MM)

90445-KE5-000

$9.77

25

WASHER, SPLINE (30X38X1.5)

90452-HL4-000

$3.03

26

WASHER, SPLINE (32X17X1.667)

90452-MCA-000

$2.75

27

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

28

WASHER, SPECIAL (28X42X2)

90463-HL4-000

$5.67

29

WASHER, SPLINE (30MM)

90463-MAT-000

$4.57

30

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

31

WASHER, SPLINE (40MM)

90493-MGE-D00

$8.07

32

CIRCLIP (32MM)

90604-MCA-780

$3.46

33

CIRCLIP (30MM)

90604-MM5-000

$4.48

34

CIRCLIP (40MM)

90605-MGE-D00

$6.93

35

BEARING, RADIAL BALL (63/22U)

91010-HL4-003

$32.67

36

BEARING, RADIAL BALL (40X76X18)

91023-HL4-003

$51.05

37

BEARING, NEEDLE (22MM)

91023-MM5-641

$27.05

38

BEARING, NEEDLE (28X32X21)

91024-HL4-003

$13.13

39

OIL SEAL (39X72X8.4)

91207-HL4-003

$17.93

40

RING, SNAP (72MM)

94560-72200

$3.74

41

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

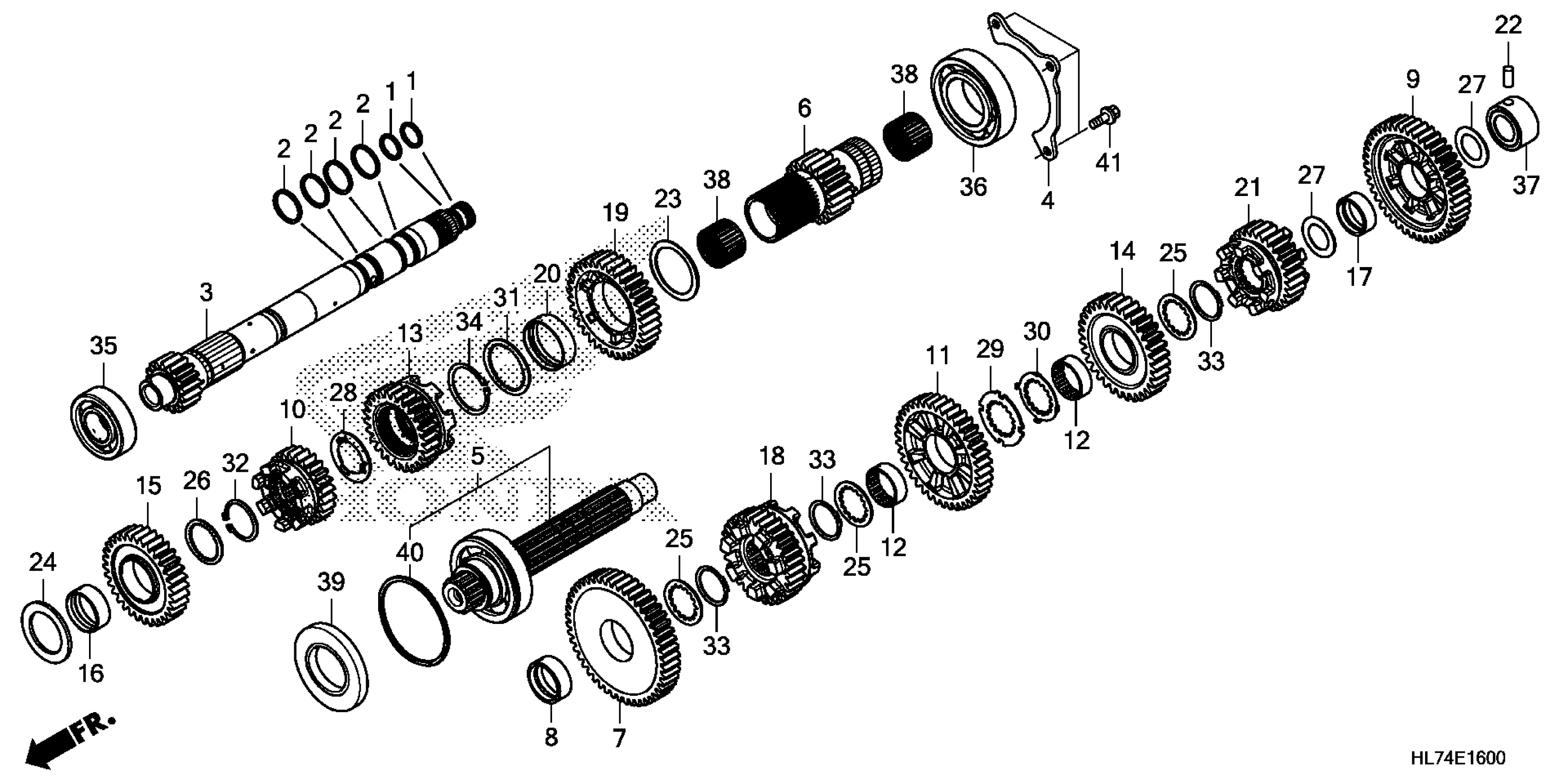

Honda SXS1000S4X5AC (21) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE06F-M4100001 TO 1HFVE06F-M4199999 TRANSMISSION Diagram
