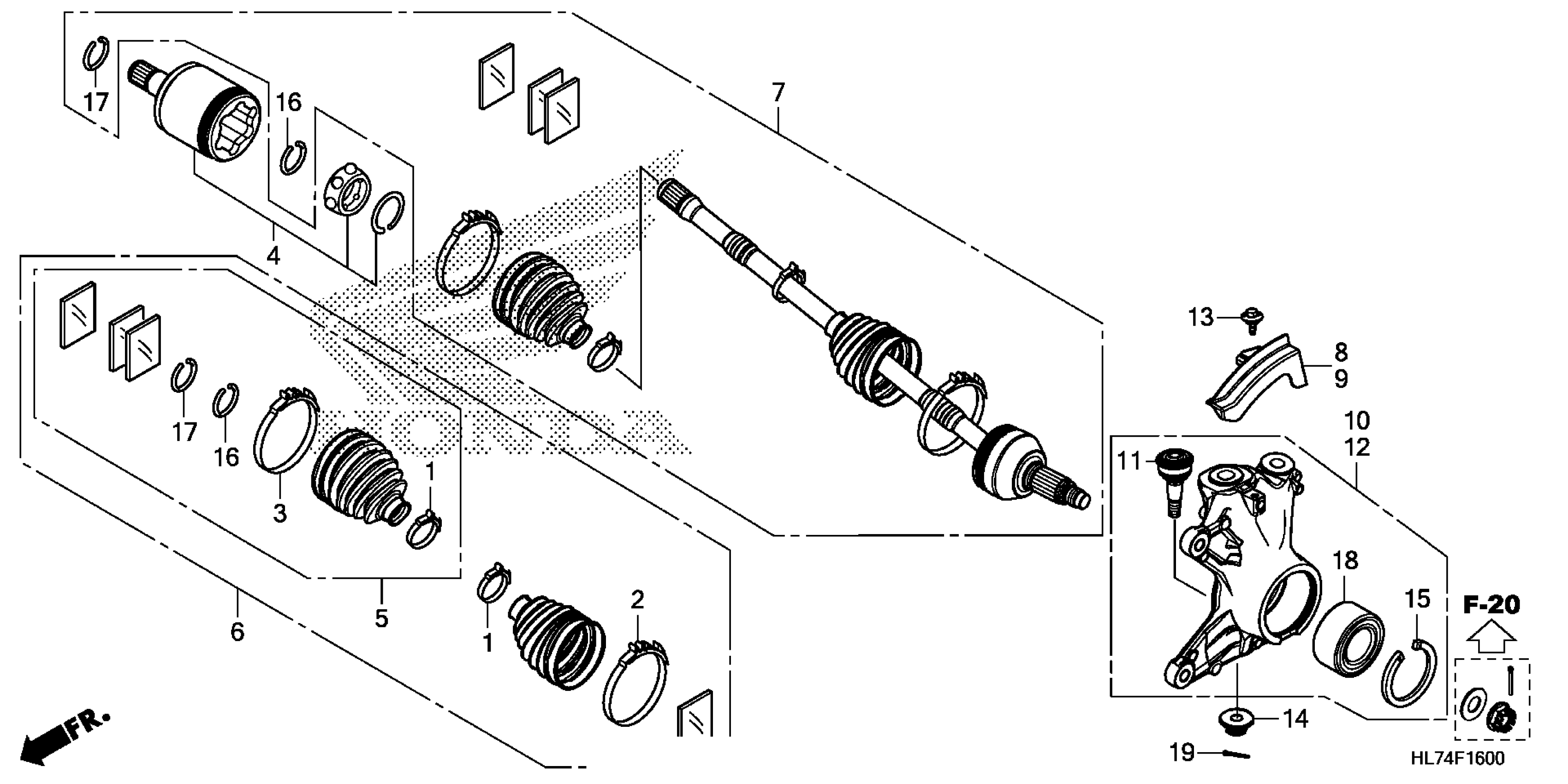

Honda SXS1000S4X5A (21) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE06E-M4100001 TO 1HFVE06E-M4199999 FRONT KNUCKLE@DRIVESHAFT Diagram

BAND, SHAFT BOOT

42215-HL4-F41

$5.25

BAND B, OUTBOARD

42216-HL4-F41

$6.46

BAND B, INBOARD

42226-HL4-F41

$6.35

JOINT, FR. INBOARD This part replaces 44220-HL6-A01.

44220-HL6-A02

$112.18

BOOT SET, FR. INBOARD

44230-HL6-A01

$59.10

BOOT SET, FR.

44240-HL6-A01

$65.36

SHAFT SET, FR. DRIVE

44250-HL6-A01

$249.44

COVER, R. FR. DISK

45255-HL6-A00

$9.81

COVER, L. FR. DISK

45256-HL6-A00

Unavailable

KNUCKLE ASSY., FR. R

51200-HL6-AA0

$146.98

KNUCKLE ASSY., FR. R This part replaces 51200-HL6-A00.

51200-HL6-AA0

$146.98

JOINT, FR. BALL (LOWER)

51220-TY0-004

$71.45

KNUCKLE ASSY., FR. L

51250-HL6-AA0

$150.66

KNUCKLE ASSY., FR. L This part replaces 51250-HL6-A00.

51250-HL6-AA0

$150.66

BOLT, SHOULDER (6X20) (5.0)

90109-HL6-A00

$2.03

NUT, CASTLE (12MM)

90365-SJA-000

$13.59

CIRCLIP (INNER) (75)

90651-HL3-A40

$10.74

RING, OUTBOARD SNAP

90653-HL4-F41

$4.29

RING B, INBOARD SNAP

90666-HL6-A01

$4.07

BEARING, ANGULAR BALL (40X74X36)

91054-HL3-A41

$32.00

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.01

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.01

PIN, COTTER (2.5MM)

94201-25300

$1.01
