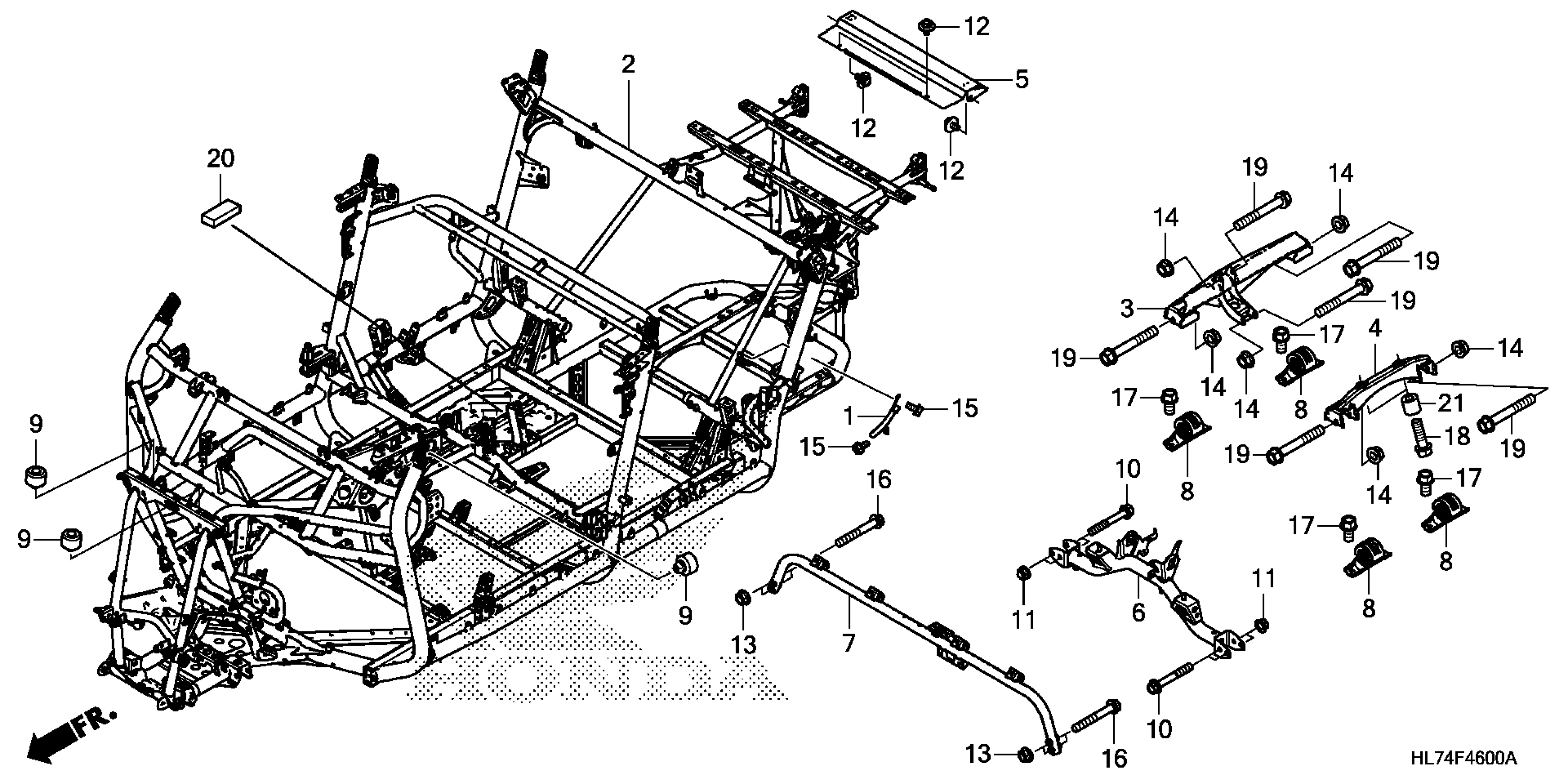

Honda SXS1000S4X5A (21) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE06E-M4100001 TO 1HFVE06E-M4199999 FRAME Diagram

CABLE, FRAME GROUND

32603-HL6-A00

$5.28

FRAME COMP *NHC12*

50100-HL7-AA0ZA

$6,440.23

FRAME COMP *NHC12* This part replaces 50100-HL7-A21ZA.

50100-HL7-AA0ZA

$6,440.23

FRAME COMP *R386P*

50100-HL7-AA0ZC

Unavailable

FRAME COMP *R386P* This part replaces 50100-HL7-A21ZC.

50100-HL7-AA0ZC

Unavailable

BRACKET, R. ENGINE HANGER

50310-HL6-A40

$132.75

BRACKET, L. ENGINE HANGER

50320-HL6-A40

$58.93

COVER, RR. BED PLATE

50500-HL6-A00

$29.02

PIPE, RR. SEAT FRAME

50700-HL7-A20

$138.08

PIPE, RR. FORWARD SEAT FRAME

50710-HL7-A20

$152.64

RUBBER ASSY., ENGINE MOUNTING

50810-HL6-A01

$20.37

RUBBER, SEAT SETTING

77206-GF0-000

$5.46

BOLT, FLANGE (10X70)

90165-S5A-000

$11.87

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

BOLT-WASHER (6X12)

93405-06012-08

$1.56

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10080

$3.24

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (8X60)

95701-08060-00

$1.49

BOLT, FLANGE (10X18)

95701-10018-08

$2.25

BOLT, FLANGE (10X55)

95701-10055-08

$2.67

BOLT, FLANGE (10X70)

95801-10070-08

$2.92

RUBBER, CUSHION

17508-MN5-000

$3.92

COLLAR (20X23)

50335-HL7-A20

$6.61
