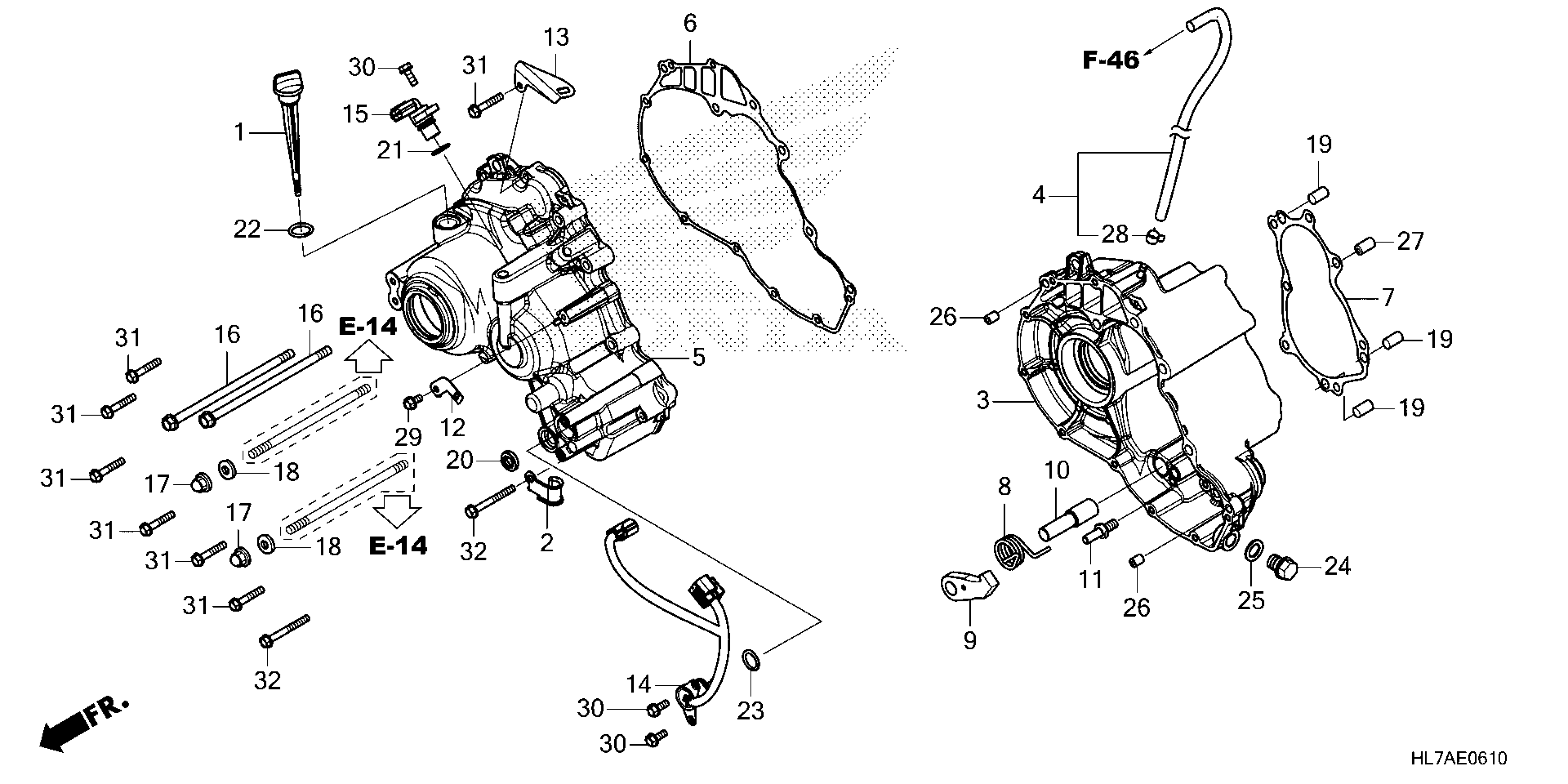

Honda SXS1000S4R5AC (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE064-S4500001 TO 1HFVE064-S4599999 SUB-TRANSMISSION CASE Diagram

DIPSTICK, OIL

15650-HL4-000

$13.59

CLAMP, DRAIN HOSE

19530-HL4-000

$4.40

CASE, SUB-TRANSMISSION

21100-HL6-A00

$267.20

TUBE ASSY., BREATHER

21111-HL6-A00

$21.09

COVER, SUB-TRANS

21200-HL6-A01

$214.71

GASKET, SUB-TRANSMISSION COVER

21205-HL4-003

$16.90

GASKET, SUB-TRANSMISSION CASE

21206-HL6-A01

$10.34

SPRING, PARKING PAWL

24552-HL4-000

$3.72

PAWL, P BRK | Use from Engine SN 8218026.

24561-HL4-BA0

$24.40

PAWL, PARKING BRAKE | Use up to Engine SN 8218025.

24561-PL4-020

$32.54

SHAFT, PARKING

24562-HL4-000

$8.75

PIN, GEARSHIFT RETURN SPRING (NOT AVAILABLE)

24652-HL4-000

$4.26

STAY, CONNECTOR

32154-HL6-A00

$3.97

STAY, SENSOR WIRE

32158-HL6-A00

$5.78

SWITCH ASSY., SUB-DRUM POSITION

35759-HL6-A01

$88.15

SENSOR ASSY., SPEED (TDK-EPC)

37700-KZR-601

$40.42

BOLT, FLANGE (8X165)

90017-HL4-000

$6.32

NUT, HEX. CAP (8MM)

90307-MJE-D00

$1.25

WASHER, SEALING (8MM)

90441-286-000

$1.83

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.10

OIL SEAL (12X20X5) (ARAI)

91205-KF0-003

$3.31

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.71

O-RING (18X3) (ARAI)

91307-KF0-003

$2.80

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.15

O-RING (17.0X2.5) (ARAI) This part replaces 91333-567-010.

91333-KE5-003

$2.15

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.99

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.60

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.80

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.80

CLAMP, TUBE (D10)

95002-41000-08

$2.26

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.12

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.57

BOLT, FLANGE (6X35)

95701-06035-00

$1.97

BOLT, FLANGE (6X55)

95701-06055-00

$2.80
