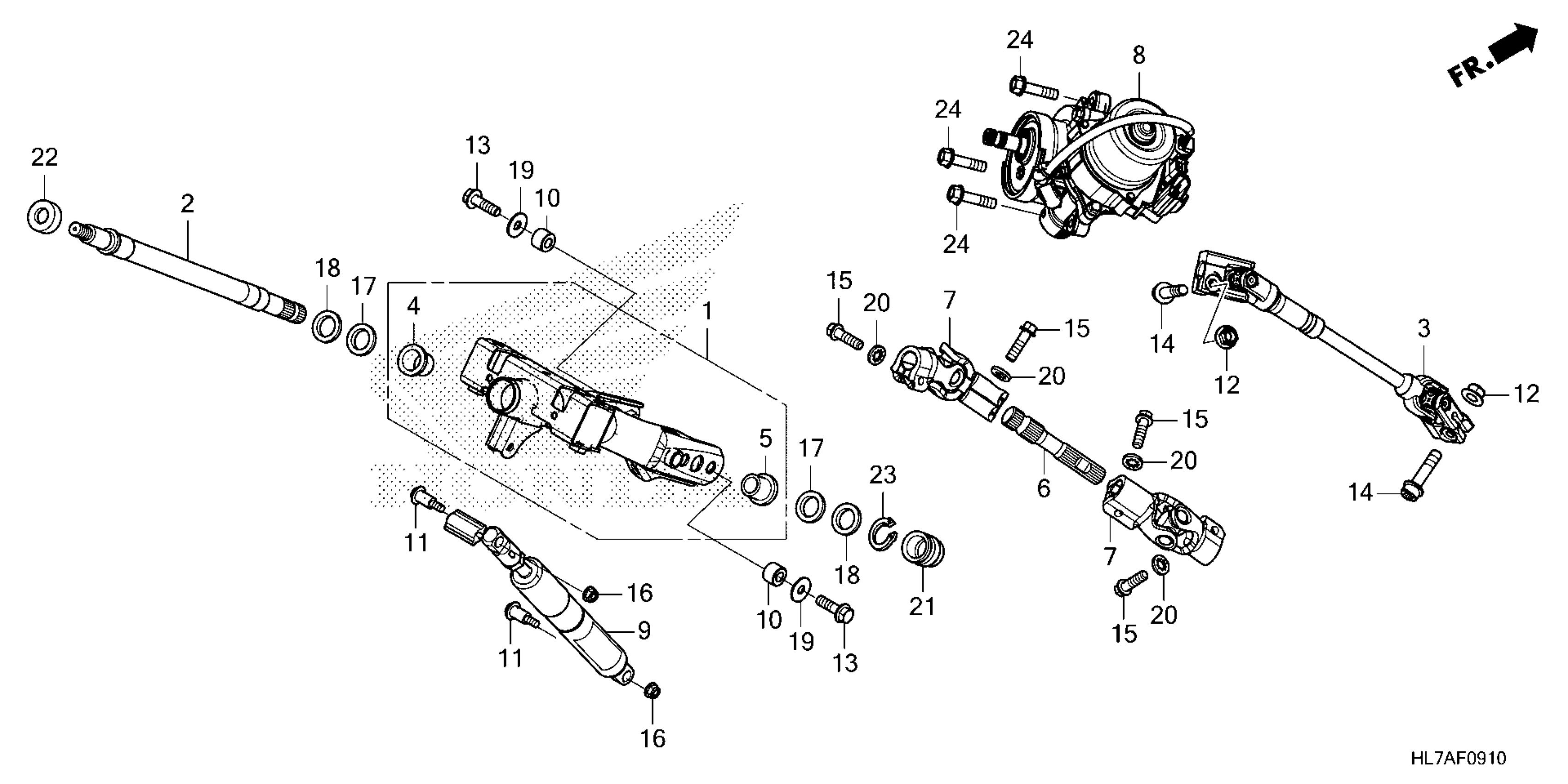

Honda SXS1000S4R5AC (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE064-S4500001 TO 1HFVE064-S4599999 STEERING SHAFT@STEERING COLUMN Diagram

COLUMN SUB-ASSY.

53255-HL6-AA0

$136.87

SHAFT, STEERING (UPPER)

53314-HL4-A00

$44.07

SHAFT, STEERING

53315-HL6-AF1

$357.62

BUSH, STEERING SHAFT (UPPER)

53316-HL3-A00

$5.87

BUSH, STEERING SHAFT (LOWER)

53317-HL3-A00

$6.09

SHAFT

53318-HL6-AF0

$27.62

JOINT B, STEERING

53323-SW5-003

$217.09

EPS UNIT

53600-HL7-AF1

$1,161.96

DAMPER ASSY., STEERING

53700-HL6-A02

$33.16

COLLAR, STEERING PIVOT

53711-HL4-A00

$3.82

BOLT, SPECIAL (6X28)

90110-HL4-A00

$3.11

NUT, SELF-LOCK (8MM)

90115-659-003

$0.69

BOLT, FLANGE (8X27)

90133-HL4-A00

$2.62

BOLT, STEERING YOKE

90135-HL8-A10

$0.34

BOLT, STEERING YOKE (8X28) (NIPPON SEIKO)

90135-SB0-003

$0.44

NUT, U (6MM)

90301-MG3-000

$6.60

WASHER, THRUST (20X1.00)

90454-428-000

$2.46

WASHER, WAVE (20MM)

90501-HL4-A00

$2.66

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.28

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.28

WASHER, TOOTHED LOCK

90511-671-003

$0.10

SEAL, STEERING SHAFT (LOWER)

91257-HL3-A01

$4.60

SEAL, STEERING SHAFT (UPPER)

91262-HL3-A01

$5.37

CIRCLIP (OUTER) (20MM)

94510-20000

$1.22

BOLT, FLANGE (8X32)

95701-08032-08

$2.04
