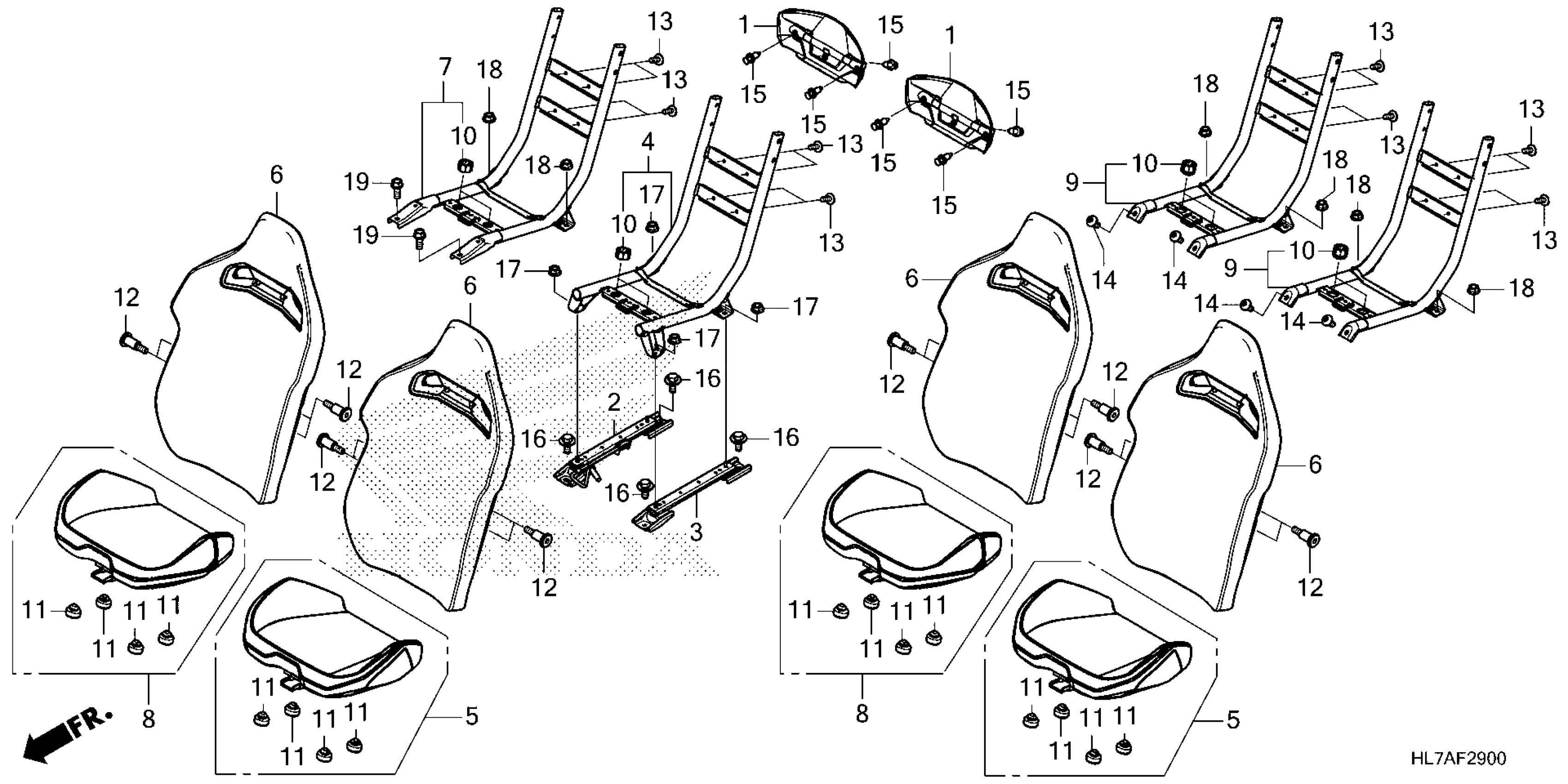

Honda SXS1000S4R5AC (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE064-S4500001 TO 1HFVE064-S4599999 SEAT Diagram

COVER, GRAB BAR

71700-HL7-A20

$27.00

SLIDER, R. SEAT

77110-HL6-A01

$84.07

SLIDER, L. SEAT

77120-HL6-A01

$61.51

FRAME, SEAT (DRIVER)

77130-HL6-A01

$223.02

SEAT (LOWER) (TYPE6)

77140-HL6-AF1ZC

$256.85

SEAT, BACK (TYPE6)

77150-HL6-AF1ZC

$340.80

FRAME, SEAT (PASSENGER)

77160-HL6-A01

$227.26

SEAT (LOWER) (TYPE6)

77170-HL6-AF1ZC

$284.13

FRAME, RR. SEAT

77180-HL7-A21

$248.89

CUSHION, SEAT MOUNTING

77207-HA0-000

$7.14

RUBBER B, SEAT STOPPER

77215-GC2-000

$5.05

BOLT, SPECIAL (8MM)

90102-HL3-A00

$0.92

SCREW, PAN (6X16)

90118-HL5-A00

$0.82

BOLT, SOCKET (8X16)

90128-MCH-000

$2.26

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

BOLT-WASHER (8X20)

93404-08020-07

$1.92

BOLT-WASHER (8X20) This part replaces 93414-08020-07.

93404-08020-07

$1.92

NUT, FLANGE (8MM)

94050-08070

$1.49

NUT, FLANGE (8MM)

94050-08080

$1.49

BOLT, FLANGE (8X20)

95701-08020-08

$1.62
