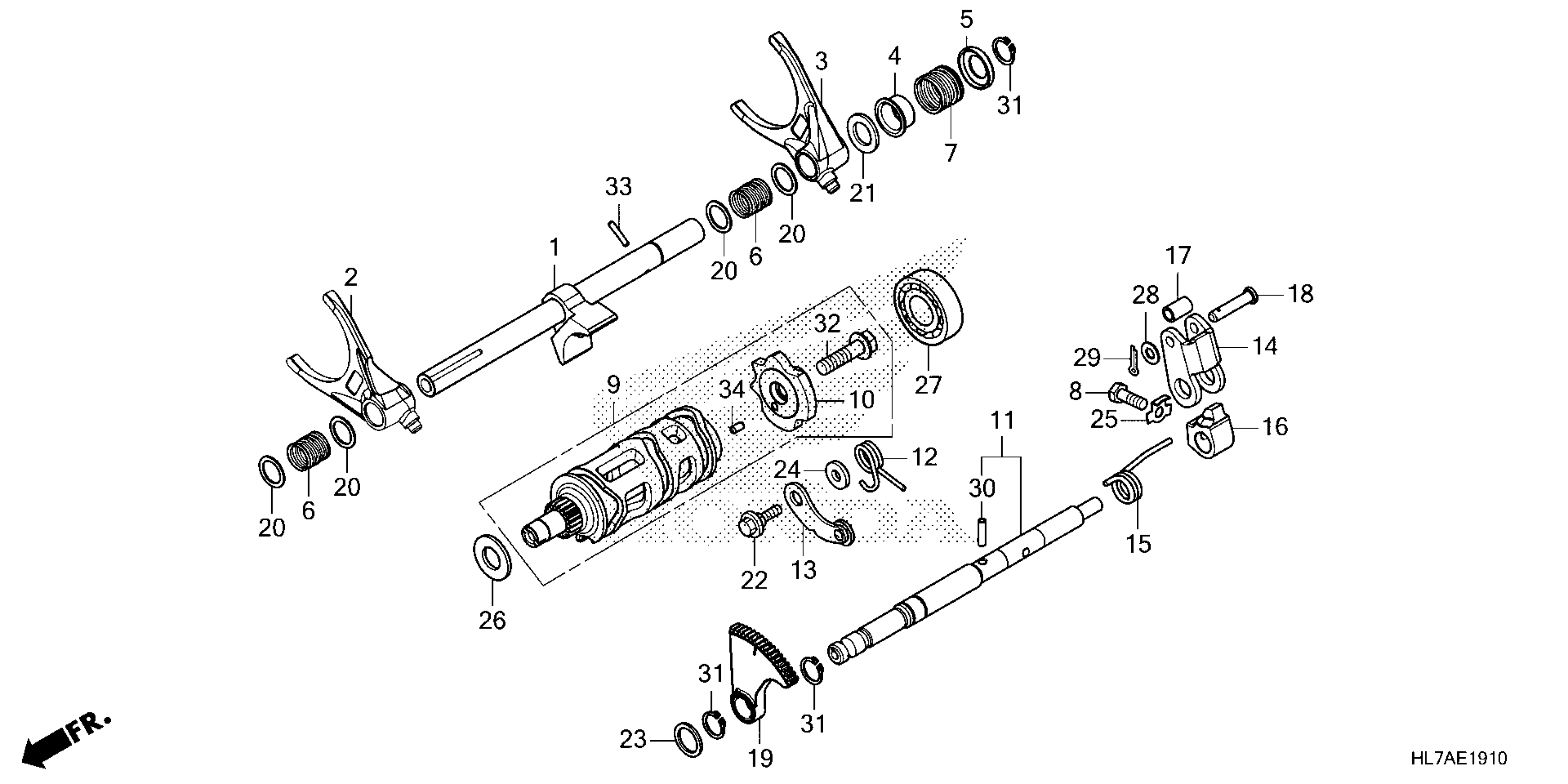

Honda SXS1000S4R5AC (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE064-S4500001 TO 1HFVE064-S4599999 GEARSHIFT FORK (SUB TRANSMISSION) Diagram

SHAFT, SHIFT FORK

24210-HL4-010

$42.70

FORK, SUB-GEARSHIFT (FR)

24214-HL4-000

$24.27

FORK, SUB-GEARSHIFT (RR)

24215-HL4-000

$52.74

SEAT, SPRING B

24221-HL4-000

$11.15

GUIDE, SPRING B

24222-HL6-A00

$5.16

SPRING A, GEARSHIFT FORK

24231-HL6-A00

$2.92

SPRING B, GEARSHIFT FORK

24232-HL6-A00

$3.82

BOLT, SHAFT FORK SETTING

24282-634-000

$5.13

DRUM ASSY., SUB-TRANSMISSION

24320-HL4-010

$117.13

CENTER, GEARSHIFT DRUM

24331-HL4-010

$22.55

SHAFT, CONTROL

24420-HL4-000

$82.67

SPRING, SHIFT DRUM STOPPER

24435-HN8-000

$3.56

STOPPER, GEARSHIFT DRUM

24440-HL4-000

$15.39

LEVER, PARKING BRAKE

24532-PN6-003

$28.51

SPRING, PARKING BRAKE

24535-PRP-040

$4.90

STOPPER, PARKING BRAKE (2)

24538-PA9-003

$25.89

ROLLER, PARKING BRAKE

24553-PN6-000

$10.66

PIN, ROLLER (6MM)

24555-PN6-000

$10.21

ARM, GEARSHIFT

24682-HL4-003

$30.31

WASHER, THRUST (14MM)

90001-HL4-000

$1.74

WASHER, THRUST (14X23X2)

90004-HL4-000

$2.87

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

WASHER, THRUST (14.1MM)

90406-HL4-000

$2.33

WASHER, DRUM STOPPER

90417-360-000

$1.74

WASHER, LOCK (6MM)

90433-639-000

$4.58

WASHER, THRUST (13.5MM)

90451-141-000

$12.84

BEARING, RADIAL BALL (17X40X9)

91012-HL4-003

$16.46

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

PIN, COTTER (1.6X12)

94201-16120

$1.49

PIN, SPRING (4X16)

94305-40162

$2.03

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

BOLT, FLANGE (8X30)

95701-08030-00

$1.49

ROLLER (3X16)

96220-30160

$1.16

ROLLER (4X8)

96220-40080

$1.49
