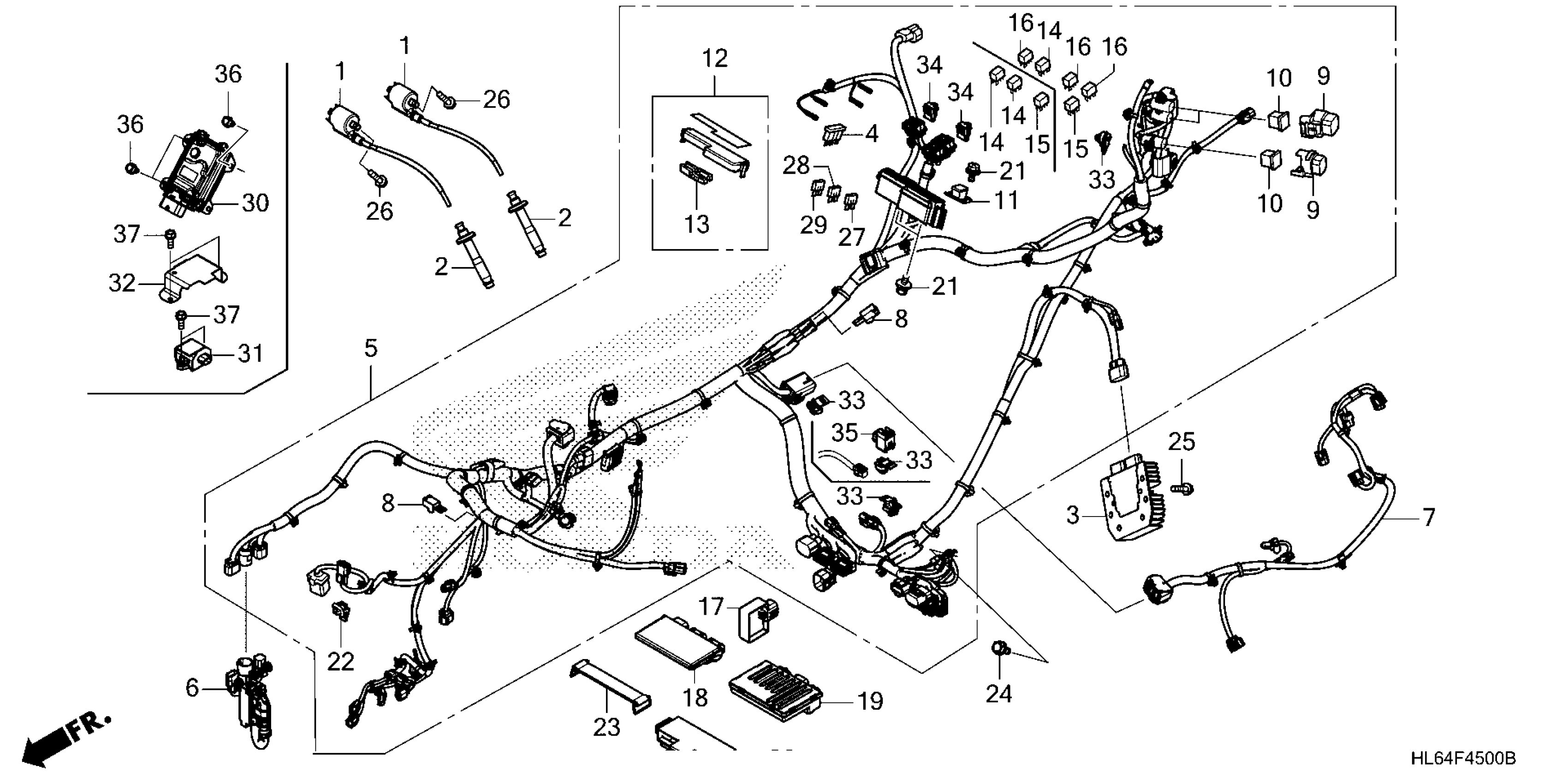

Honda SXS1000S2RAC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE056-K4000001 TO 1HFVE056-K4099999 WIRE HARNESS Diagram

#

Description
Price

1

COIL, IGNITION

30510-HL6-A01

$64.62

2

CAP ASSY., NOISE SUPPRESSOR

30700-HL4-A01

$46.63

3

RECTIFIER ASSY., REGULATOR

31600-HL6-A01

$128.90

4

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

5

WIRE HARNESS This part replaces 32100-HL6-A00.

32100-HL6-A01

$3,226.74

5

WIRE HARNESS

32100-HL6-A01

$3,226.74

6

SUB-HARNESS (VSA)

32101-HL6-A00

$148.66

7

SUB-HARNESS, ENGINE | Use up to Frame SN 8014938. This part replaces 32104-HL6-A00.

32104-HL7-A20

$147.57

7

SUB-HARNESS, ENGINE | Use from Frame SN 8014939.

32104-HL7-A20

$147.57

8

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$13.70

9

COVER ASSY., FUSE (40A)

38205-HP0-B11

$4.32

10

FUSE, BLOCK (40A)

38211-SNA-A21

$4.12

11

FUSE, BLOCK (50A)

38213-SM4-003

$12.20

12

COVER SET, FUSE

38230-HL6-A00

$3.69

13

PULLER, MINI FUSE (SUMITOMO)

38235-S04-003

$0.94

14

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$9.88

15

RELAY, POWER (MICRO ISO 5P)

38502-MCS-G01

$9.52

16

RELAY, POWER (MICRO ISO 4P)

38503-MCA-A61

$13.40

17

CONTROL UNIT, FAN

38710-HL6-A01

$58.56

18

PGM-FI UNIT

38770-HL6-A05

$283.96

19

EPS UNIT

39980-HL6-A01

$347.09

20

CUSHION, EPS UNIT

39981-HN2-B70

$5.50

21

BOLT (5X13)

90114-SG0-003

$5.04

22

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

23

BAND F, BATTERY (155MM)

95012-17001

$6.90

24

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50

25

BOLT, FLANGE (6X22)

95701-06022-08

$1.66

26

BOLT, FLANGE (6X25)

95701-06025-00

$1.66

27

FUSE, MINI (10A)

98200-41000

$1.22

28

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.12

29

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.62

33

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$5.85

34

CLIP, RELAY HOLDER (NATURAL)

91536-STK-003

$1.29
