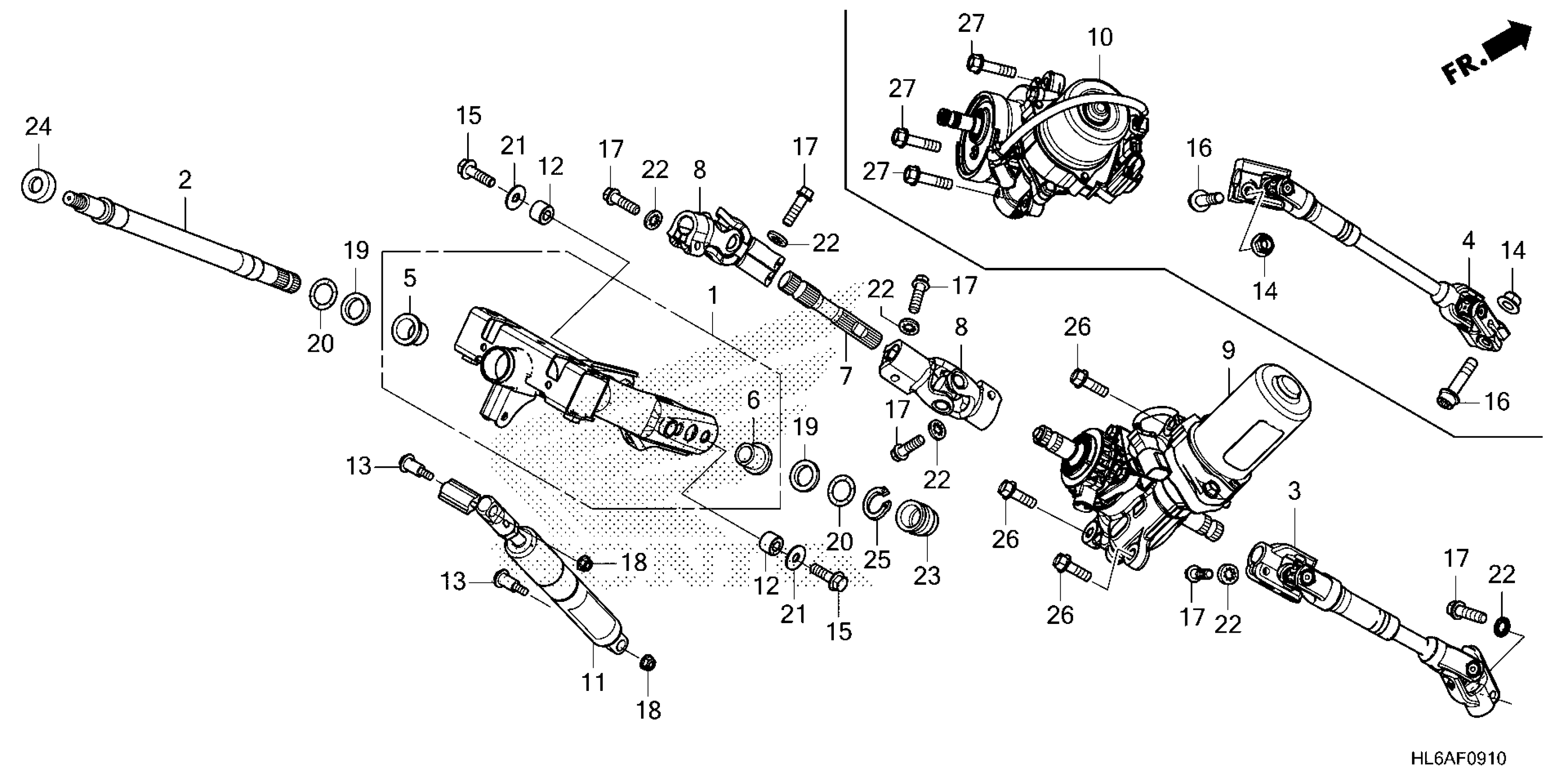

Honda SXS1000S2R5AC (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE058-P4400001 TO 1HFVE058-P4999999 STEERING SHAFT@STEERING COLUMN Diagram

COLUMN SUB-ASSY.

53255-HL6-AA0

$134.88

SHAFT, STEERING (UPPER)

53314-HL4-A00

$43.43

SHAFT, STEERING

53315-HL6-AF1

$352.43

BUSH, STEERING SHAFT (UPPER)

53316-HL3-A00

$5.78

BUSH, STEERING SHAFT (LOWER)

53317-HL3-A00

$6.00

SHAFT

53318-HL6-AF0

$27.22

JOINT B, STEERING

53323-SW5-003

$143.13

EPS UNIT

53600-HL6-AF1

$1,028.01

DAMPER ASSY., STEERING

53700-HL6-A02

$32.42

COLLAR, STEERING PIVOT

53711-HL4-A00

$3.77

BOLT, SPECIAL (6X28)

90110-HL4-A00

$3.03

NUT, SELF-LOCK (8MM)

90115-659-003

$0.68

BOLT, FLANGE (8X27)

90133-HL4-A00

$2.58

BOLT, STEERING YOKE

90135-HL8-A10

$0.33

BOLT, STEERING YOKE (8X28) (NIPPON SEIKO)

90135-SB0-003

$0.43

NUT, U (6MM)

90301-MG3-000

$6.44

WASHER, THRUST (20X1.00)

90454-428-000

$2.42

WASHER, WAVE (20MM)

90501-HL4-A00

$2.62

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.26

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.26

WASHER, TOOTHED LOCK

90511-671-003

$0.10

SEAL, STEERING SHAFT (LOWER)

91257-HL3-A01

$4.54

SEAL, STEERING SHAFT (UPPER)

91262-HL3-A01

$5.29

CIRCLIP (OUTER) (20MM)

94510-20000

$1.20

BOLT, FLANGE (8X32)

95701-08032-08

$2.01
