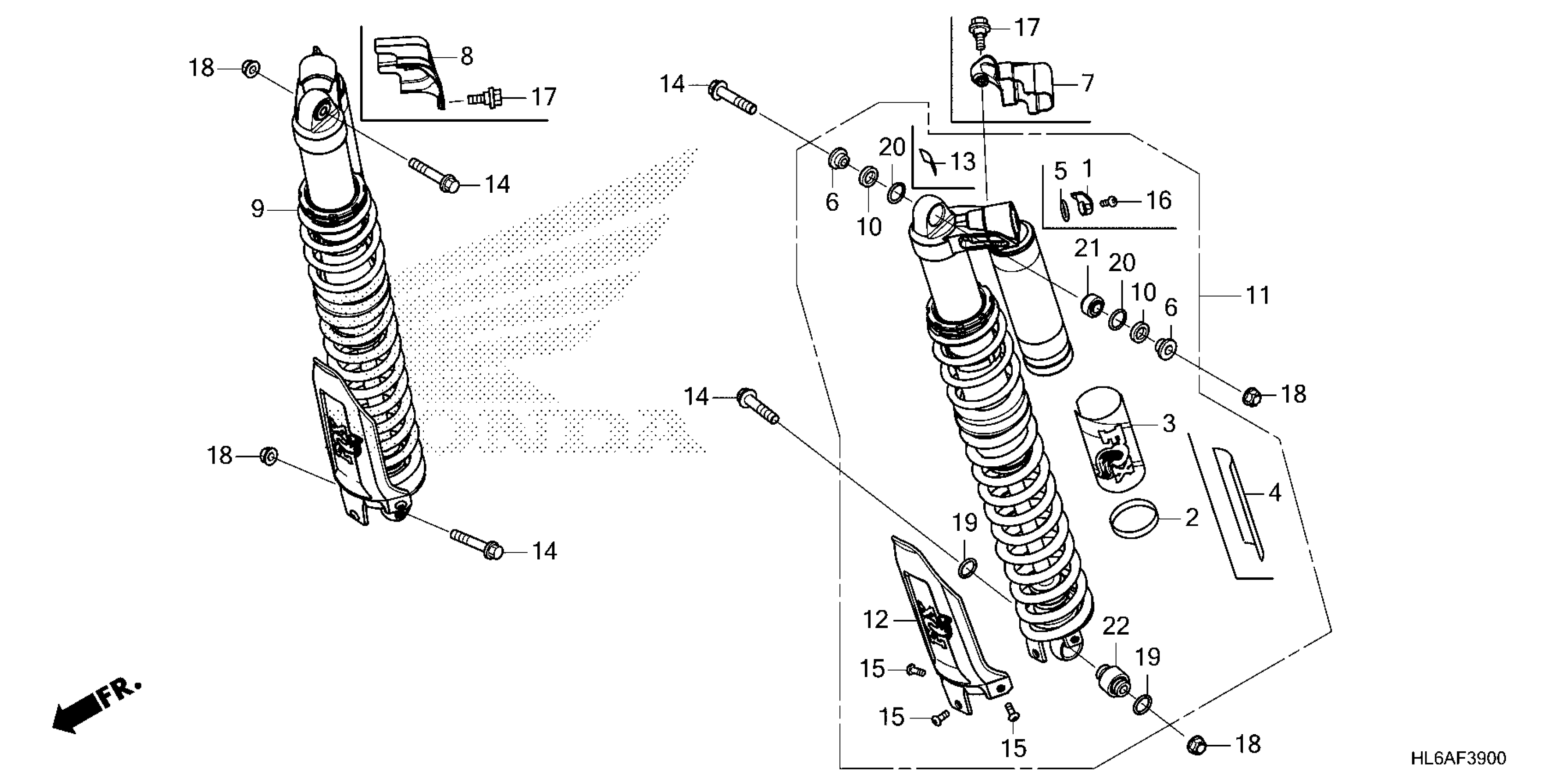

Honda SXS1000S2R3A (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE05K-P4400001 TO 1HFVE05K-P4999999 REAR SHOCK ABSORBER Diagram

KNOB, DAMPING ADJUST

51426-HL4-F41

$6.38

DECAL, BAND

51427-HL6-A41

$5.57

DECAL, RESERVOIR

51428-HL6-A51

$11.69

DECAL, BASE VALVE

51429-HL4-F41

$10.06

REDUCER, EYELET

51431-HL6-A11

$6.30

CUSH, RR. R (TYPE5)

52400-HL6-A51ZC

$1,294.48

CUSH, RR. R (TYPE4)

52400-HL6-A51ZD

$1,294.48

O-RING (0.787X0.210)

91351-HL6-A11

$1.92

CUSH, RR. L (TYPE5)

52500-HL6-A51ZC

$1,656.23

CUSH, RR. L (TYPE4)

52500-HL6-A51ZD

$1,339.00

PROTECTOR, CUSHION

52610-HL6-A11

$16.43

BOLT, FLANGE (12X57)

90101-HL6-A00

$1.05

SCREW, SPECIAL PAN (6X12)

90102-HL6-A01

$4.55

BOLT, TORX

90110-HL4-F41

$1.31

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.01

RING, RETAINING (1.290X0.050)

90651-HL6-A11

$5.63

RING, RETAINING (1.290X0.050)

90651-HL6-A11

$5.63

BEARING, SPHERICAL (UPPER)

91075-HL6-A11

$42.77

BEARING, SPHERICAL (LOWER)

91077-HL6-A01

$25.43
