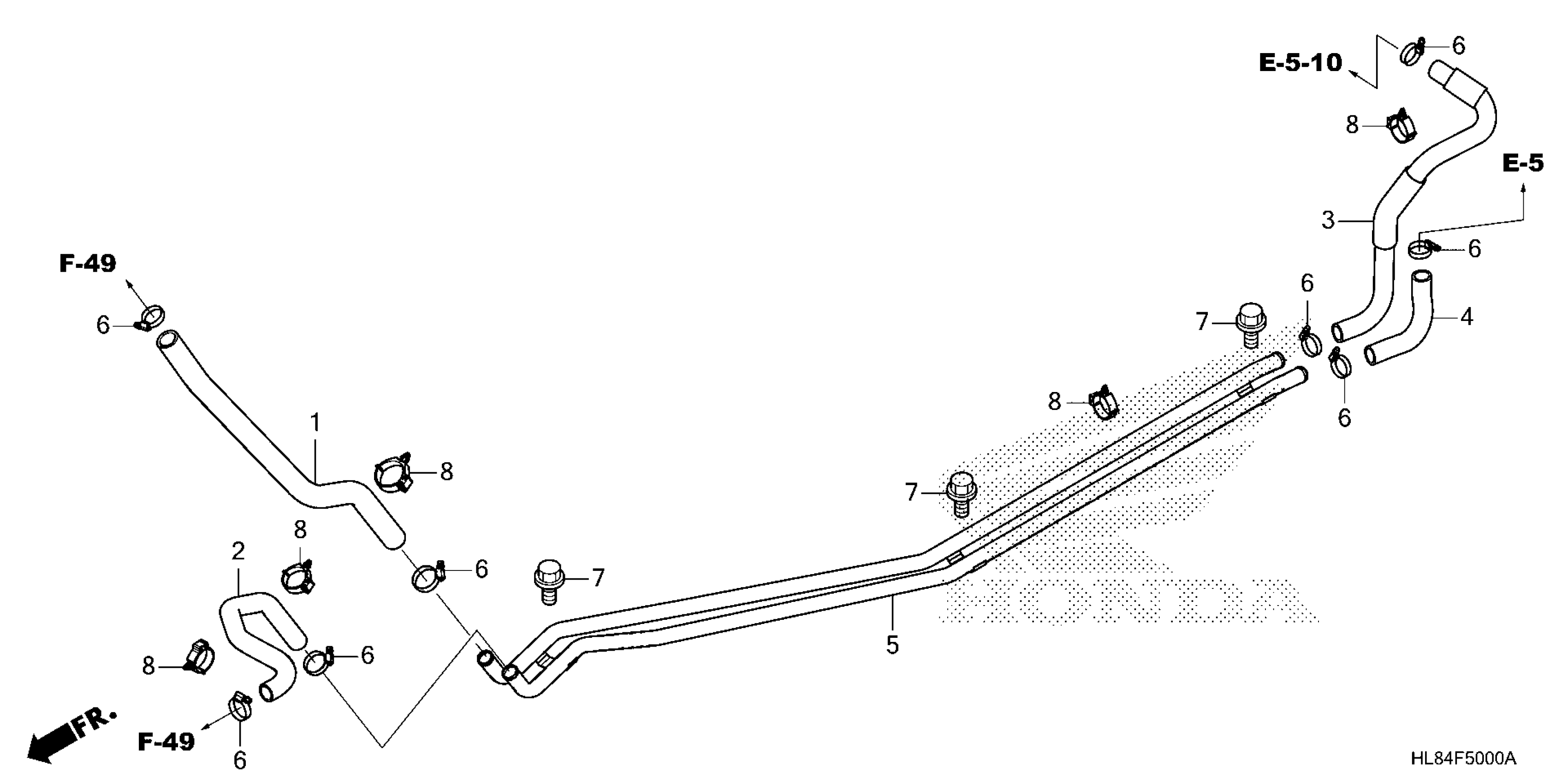

Honda SXS1000M6D2AC (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE085-R4100001 TO 1HFVE085-R4199999 WATER PIPE@WATER HOSE Diagram

#

Description

Price

1

HOSE R, FR. WATER

19505-HL4-AK0

$12.06

2

HOSE L, FR. WATER

19506-HL4-AK0

$13.80

3

HOSE R, RR. WATER

19507-HL4-LK0

$21.02

4

HOSE, L. RR. WATER

19508-HL4-A00

$4.17

5

PIPE COMP, WATER

19509-HL8-A10

$111.82

6

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

7

BOLT, FLANGE (6X10) (NA USE ALT:90021-SFA-000)

90021-TY0-000

Unavailable

8

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.19
