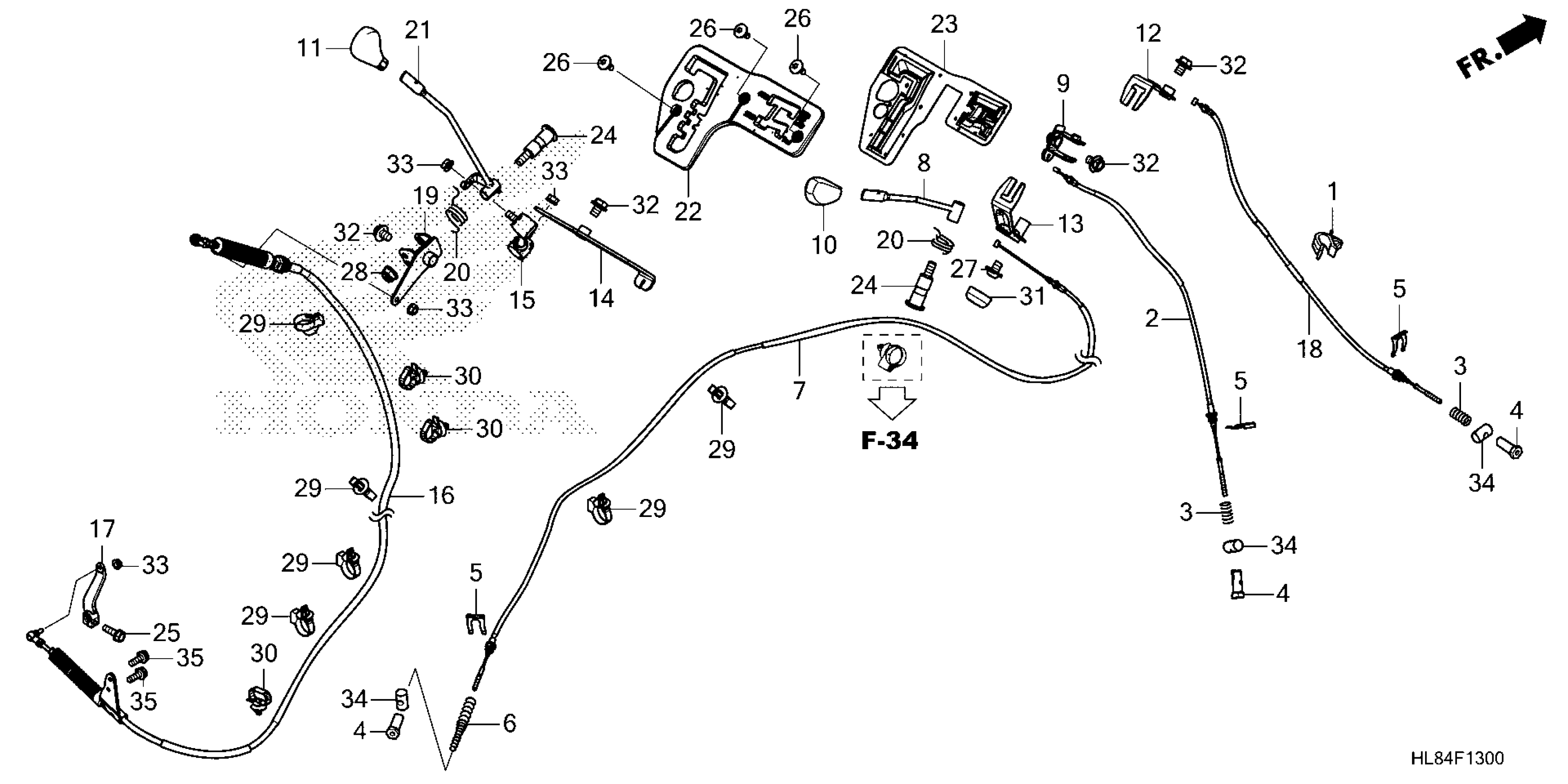

Honda SXS1000M6D2AC (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE085-R4100001 TO 1HFVE085-R4199999 SHIFT LEVER@SELECT LEVER Diagram

#

Description
Price

1

CLIP, WIRE HARNESS

32171-GJ1-003

$3.33

2

CABLE COMP

41490-HL4-AK1

$7.66

3

SPRING, CLUTCH CABLE

41491-HL1-A00

$1.15

4

NUT, ADJUSTING

41560-HP5-600

$6.38

5

CLIP, CLUTCH CABLE

41573-HP5-600

$3.19

6

SPG, RR. DIFF CABLE

41722-HL4-AK0

$12.09

7

CABLE COMP

41723-HL8-A11

$20.11

8

LEVER, DRIVE SELECT

54010-HL4-A00

$19.22

9

ARM, MODE SELECT

54021-HL4-A00

$28.88

10

GRIP, DRIVE SELECT LEVER *NH1* (BLACK)

54050-HL1-A00ZA

$13.48

11

GRIP, SELECT LEVER *NH1* (BLACK)

54050-HL3-A00ZA

$5.66

12

LINK COMP, FR.

54060-HL4-AK0

$17.88

13

LINK COMP, RR.

54065-HL4-AK0

$25.74

14

PIVOT COMP

54301-HL4-AK0

$27.08

15

CONNECTING ROD COMP

54302-HL4-AK1

$23.05

16

CABLE ASSY., SHIFT

54310-HL8-A11

$115.48

17

ARM, SHIFT CHANGE

54312-HL8-A10

$17.82

18

CABLE COMP, FR.

54316-HL4-AK1

$8.15

19

PLATE COMP

54320-HL8-A10

$20.32

20

SPRING, SELECT LEVER

54324-HN7-000

$4.43

21

LEVER COMP

54325-HL4-AK0

$26.79

22

GATE, SHIFT

54335-HL4-AK0

$12.23

23

GATE RUB (LOWER)

54336-HL4-AK0

$27.18

24

BOLT, CHANGE PIVOT

90115-HR6-MF0

$10.58

25

BOLT, FLANGE (6X20)

90118-968-000

$4.04

26

SCREW, PAN (6X14)

90118-MBV-000

$1.83

27

BOLT, WASHER (8X12)

90150-HL4-F00

$0.80

28

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.19

28

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.19

29

CLAMP, HARNESS

90652-HC4-003

$5.68

30

CLIP, HARNESS BAND (155.3MM) (BLACK)

91540-STK-003

$3.59

31

CAP, FR. WIPER ARM (12MM)

91611-SDA-A00

$2.29

32

BOLT-WASHER (8X12)

93406-08012-08

$1.94

33

NUT, FLANGE (6MM)

94050-06000

$0.63

34

JOINT B, BRAKE ARM

95015-32001

$0.91

35

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.57
