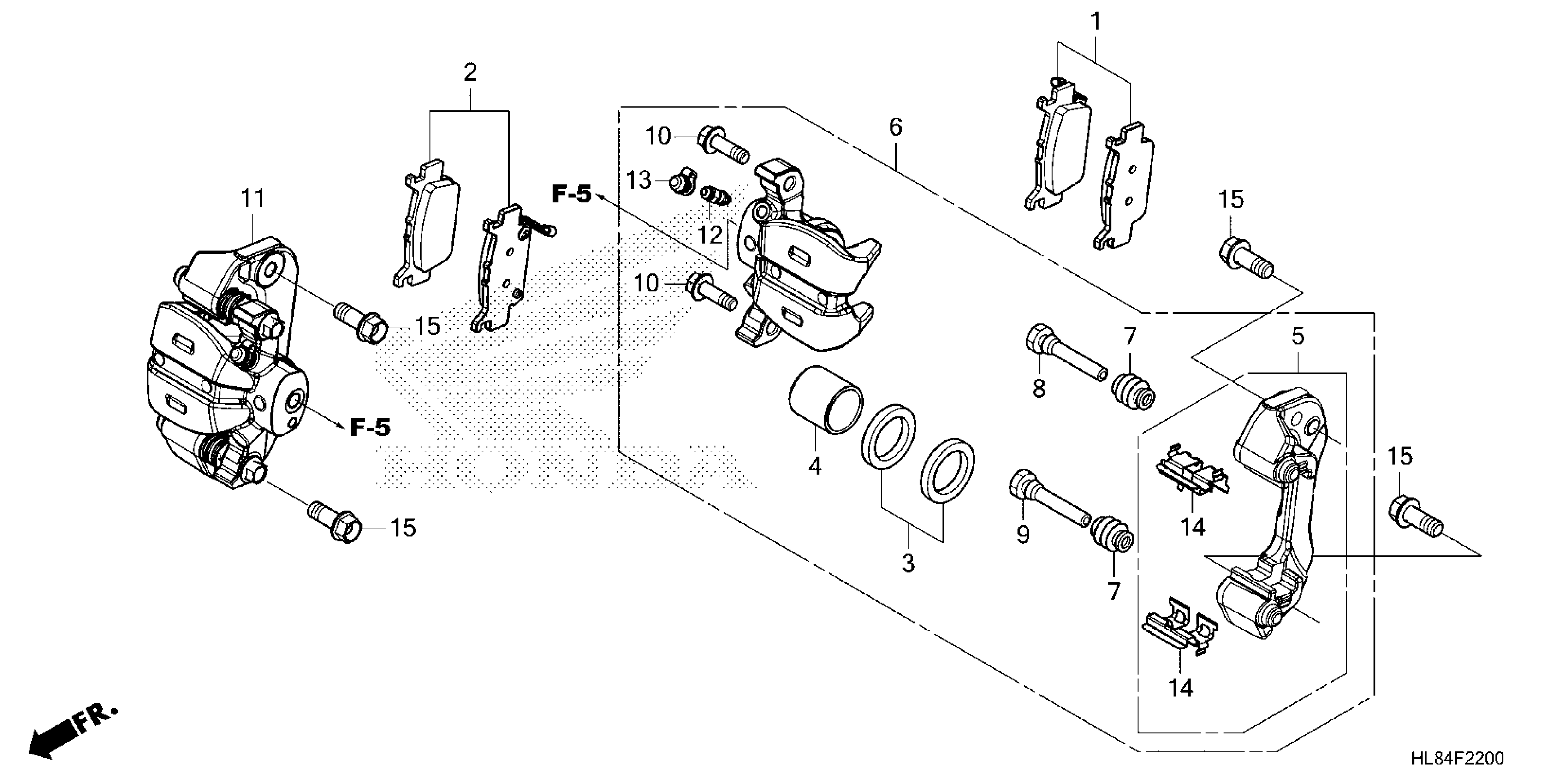

Honda SXS1000M6D2AC (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE085-R4100001 TO 1HFVE085-R4199999 REAR BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, RR. L

06431-HL8-A11

$65.21

2

PAD SET, RR. R

06432-HL8-A11

$63.39

3

SEAL SET, PISTON

06451-961-405

$6.56

4

PISTON

43107-KFG-J21

$20.69

5

BRACKET, RR.

43110-HL4-A01

$29.93

6

CALIPER SUB-ASSY., L

43150-HL8-A11

$137.74

7

COVER, DUST

43234-S04-003

$5.62

8

PIN B

43235-HL4-A01

$4.61

9

PIN A

43235-HP0-A01

$5.71

10

BOLT, FLANGE (8X26)

43240-S6M-J51

$4.84

11

CALIPER SUB-ASSY., R

43250-HL8-A11

$85.49

12

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

13

CAP, BLEEDER

43353-461-771

$5.05

14

RETAINER, FR. BRACKET

45112-HP0-B81

$6.40

15

BOLT, FLANGE (10X25)

90101-HL4-AK0

$1.02
