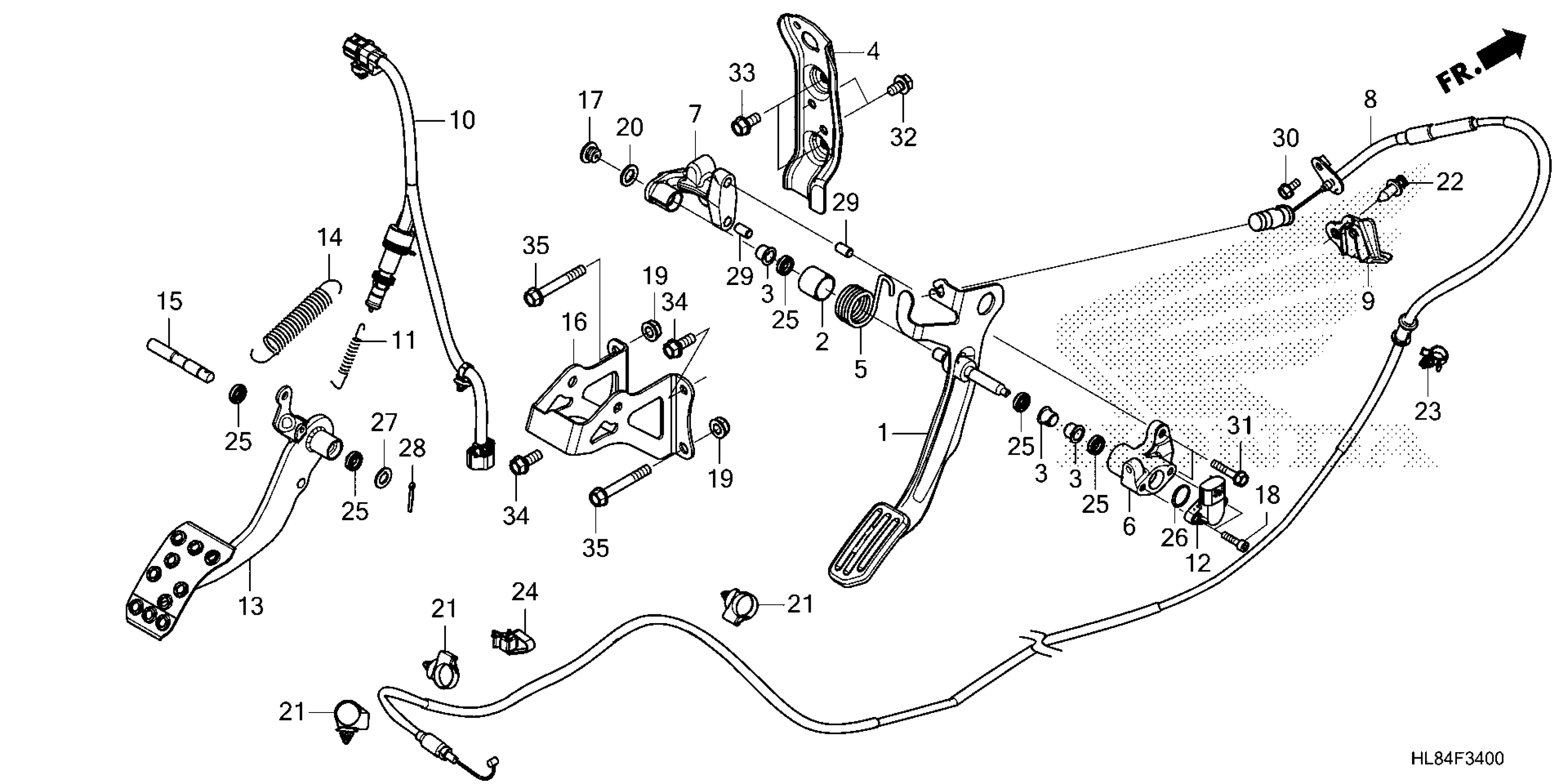

Honda SXS1000M6D2AC (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE085-R4100001 TO 1HFVE085-R4199999 PEDAL Diagram

PEDAL COMP, ACCEL

17810-HL4-AK0

$35.25

COLLAR, ACCELERATOR PEDAL

17811-HL1-A00

$3.31

BUSH, FLANGE (10MM)

17813-HL6-A00

$3.15

STAY, ACCEL PEDAL

17820-HL4-AK0

$16.15

SPRING, ACCELERATOR PEDAL

17830-HL4-A00

$1.46

BRACKET, R. PEDAL PIVOT

17850-HL6-A00

$64.51

BRACKET, L. PEDAL PIVOT

17860-HL6-A00

$62.25

CABLE COMP, THROT

17910-HL8-A11

$35.33

RUBBER

17911-HL4-AK0

$3.20

SW ASSY., STOP

35350-HL4-AK1

$24.74

SPRING, STOP SW

35357-HL4-AK0

$1.52

SENSOR ASSY., ANGLE

38800-HR3-A21

$27.06

PEDAL COMP, BRAKE

46510-HL4-AK0

$34.85

SPRING, BRAKE PEDAL

46514-HL1-A00

$9.82

SHAFT, BRAKE PIVOT

46550-HL3-A00

$17.11

STAY, BRAKE PEDAL

46560-HL4-A00

$5.39

BOLT, SEALING (12MM)

90007-ZG8-300

$7.02

BOLT, SOCKET (5X20)

90116-HP5-600

$3.10

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

WASHER (12MM)

90545-KF0-000

$3.26

CLAMP, HARNESS

90652-HC4-003

$5.95

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

CLIP, WIRE HARNESS

90659-MKE-A11

$3.13

STRAP, CABLE (105MM) *NH1* (BLACK)

90672-SB2-003

$5.47

OIL SEAL (10X16X5)

91206-ZG5-003

$3.13

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.72

WASHER, PLAIN (10MM)

94102-10800

$3.39

PIN, SPLIT (3.0X18)

94201-30180

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

BOLT, FLANGE (8X55)

95701-08055-00

$2.28
