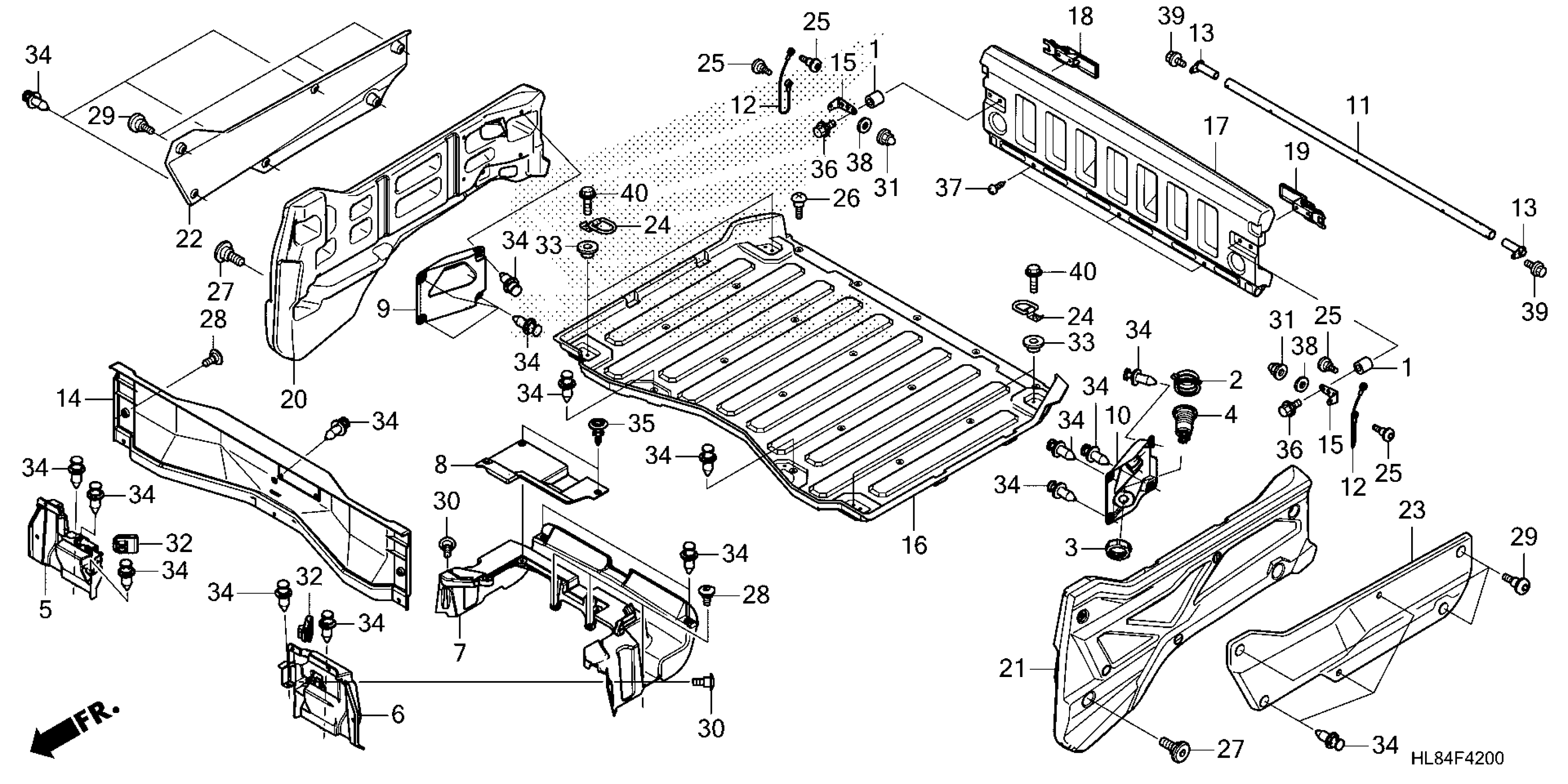

Honda SXS1000M6D2AC (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE085-R4100001 TO 1HFVE085-R4199999 BED PLATE@REAR GATE Diagram

COLLAR (6.4X10)

23813-KPH-720

$4.92

CAP

31652-HP0-A01

$2.24

NUT

31653-HP0-A01

$1.49

SOCKET, ACCESSORY

31655-HP0-A01

$24.16

SPLASH GUARD R, RR.

63510-HL4-AN0

$34.08

SPLASH GUARD L, RR.

63520-HL4-AN0

$34.80

SPLASH GUARD COMP

76410-HL4-AN0

$42.80

LID, RR. SPH GUARD

76450-HL4-AN0

$72.89

COVER, R. *NH1*

77905-HL4-AN0ZA

$17.16

COVER, L. *NH1*

77955-HL4-AN0ZA

$17.16

HINGE, RR. GATE

81503-HL4-A50

$25.39

WIRE, RR. GATE STOPPER

81504-HL3-A00

$21.46

BRACKET, RR. GATE HINGE

81505-HL1-A00

$7.16

PLATE, FR. BED

81506-HL8-L10

$106.74

BRACKET, RR. GATE LOCK

81508-HL1-A00

$2.92

COMP, RR.

81510-HL8-A10

$213.41

GATE, RR. *NH1* (BLACK)

81530-HL4-A50ZA

$72.31

LOCK, R. RR. GATE

81531-HL3-A01

$14.55

LOCK, L. RR. GATE

81532-HL3-A01

$14.55

COVER, R. *NH1*

81550-HL4-AN0ZA

$124.75

COVER, L. *NH1*

81560-HL4-AN0ZA

$98.72

PANEL SET (TYPE1)

81570-HL8-A40ZA

$199.93

PANEL SET (TYPE1)

81580-HL8-A40ZA

$201.41

HOOK ASSY., TIE DOWN

84614-S06-000

$10.50

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

SCREW, SPECIAL (6MM)

90103-HF1-670

$6.08

BOLT, SPECIAL (8MM)

90104-HL3-A00

$0.64

SCREW, PAN (6X14)

90106-KBV-000

$3.90

BOLT, SPECIAL (8MM)

90117-HL4-A00

$1.39

SCREW, PAN (6X16)

90117-HL5-E60

$3.50

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, AIR SPOILER CLIP

90305-SH3-000

$6.48

NUT, AIR SPOILER CLIP This part replaces 90323-SE0-000.

90305-SH3-000

$6.48

NUT, AIR SPOILER CLIP This part replaces 90323-SE1-000.

90305-SH3-000

$6.48

WASHER, RR. COWL SETTING

90511-MAT-000

$2.92

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

CLIP, COWL TOP

91505-SL0-003

$2.53

BOLT-WASHER (6X20)

93404-06020-07

$1.55

SCREW, TAPPING (5X16)

93903-25320

$1.49

WASHER, PLAIN (6MM)

94103-06700

$1.49

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
